Battery: Service and Repair

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.
2. Disconnect the positive battery cable.
3. Remove the battery hold down retainer.

IMPORTANT: Do not tip the battery more than 40 degrees during removal.




4. Remove the battery.

INSTALLATION PROCEDURE

IMPORTANT: Do not tip the battery more than 40 degrees during battery installation.




1. Install the battery to the battery tray.
2. Install the battery hold down retainer.

NOTE: Refer to Fastener Notice in Service Precautions.

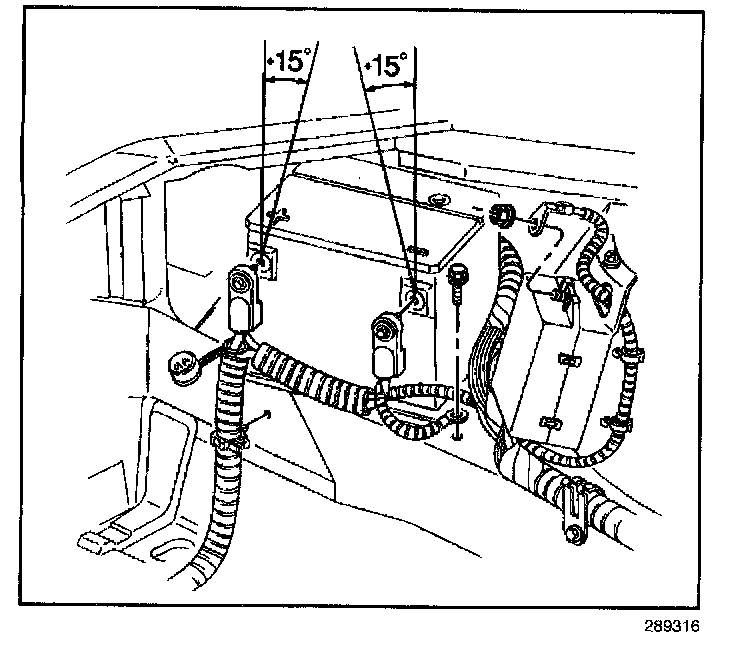

3. Connect the positive battery cable.

Tighten
Tighten the cable bolt to 15 N.m (11 lb ft).

4. Connect the negative battery cable bolt.
