Control Assembly, HVAC

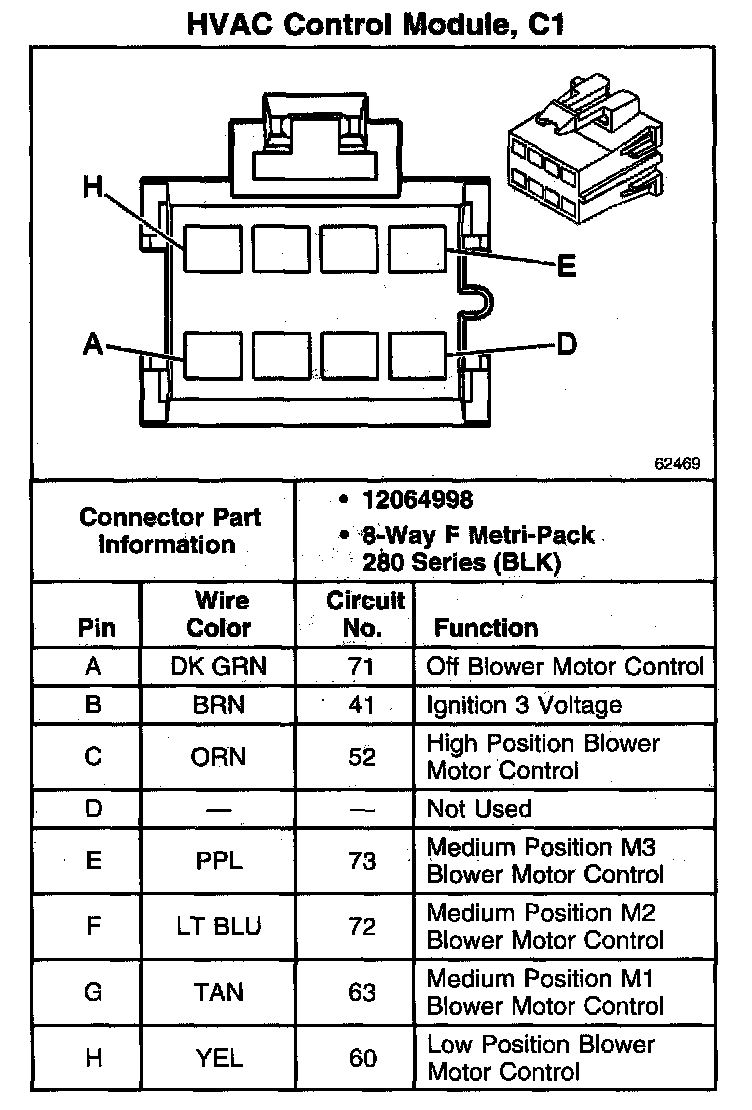

HVAC Control Module, C1 - HVAC Systems - Manual:

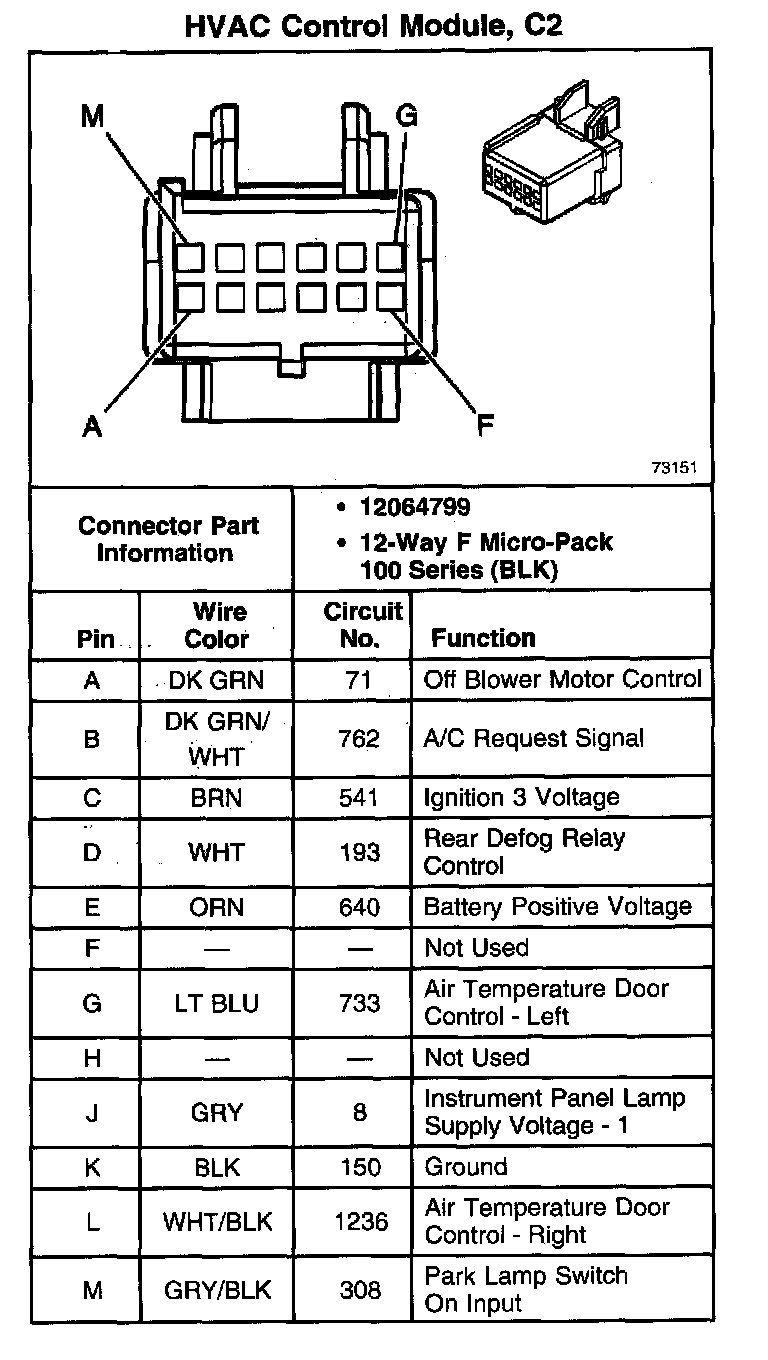

HVAC Control Module, C2 - HVAC Systems - Manual:
