Automatic Transmission/Transaxle

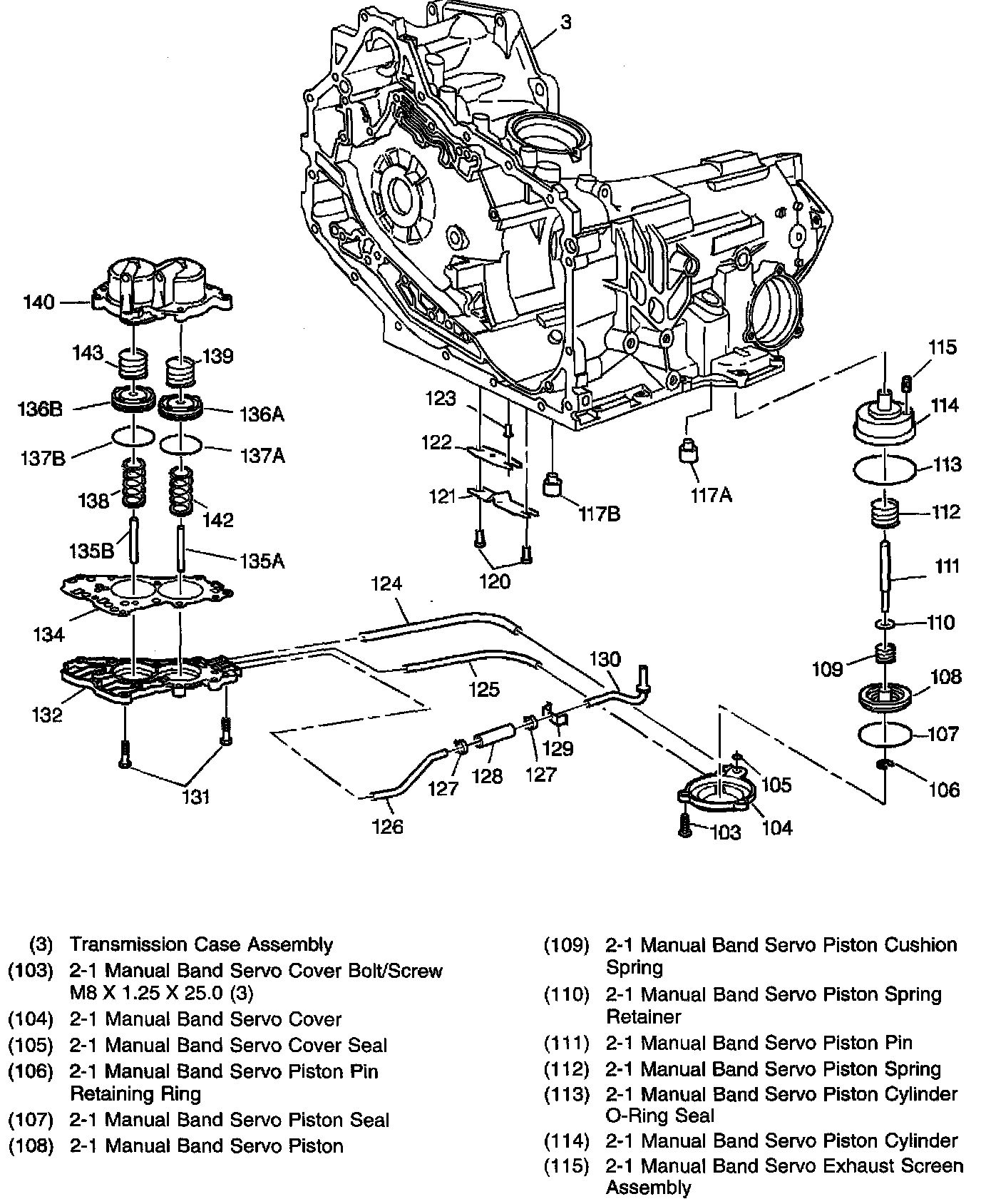

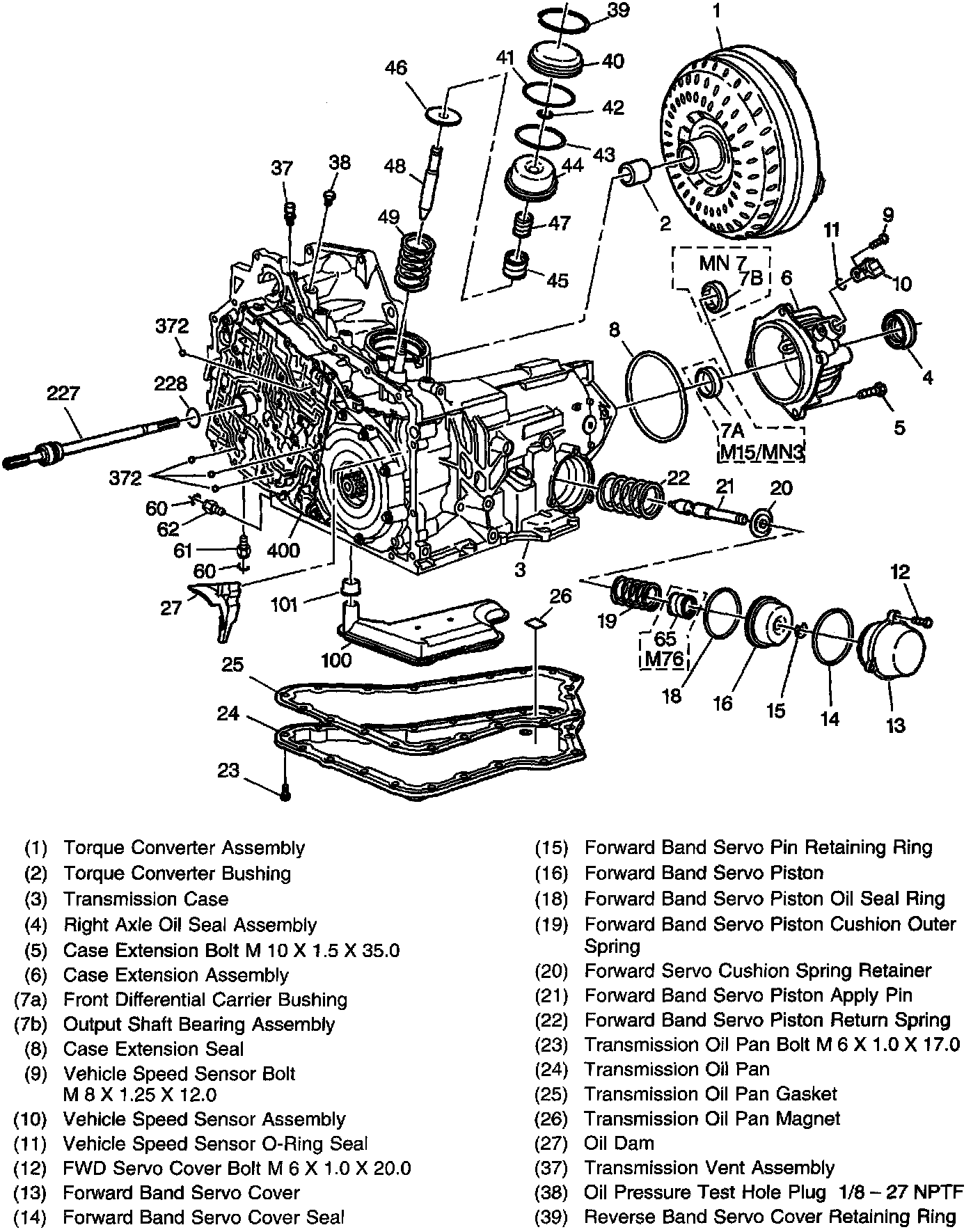

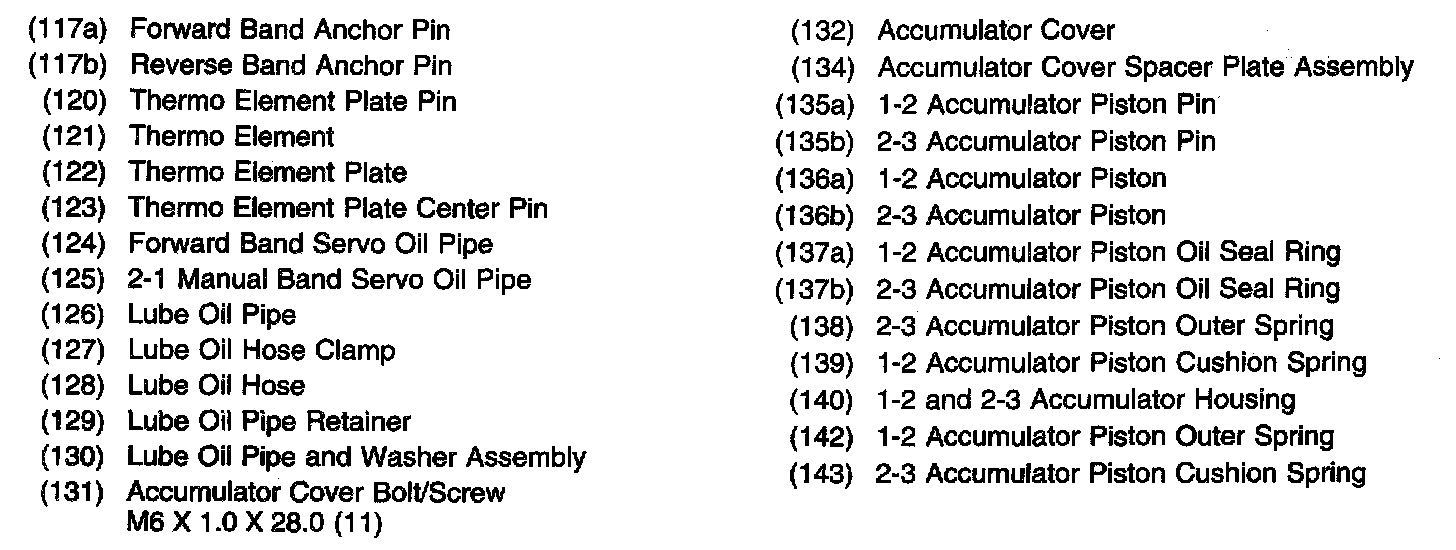

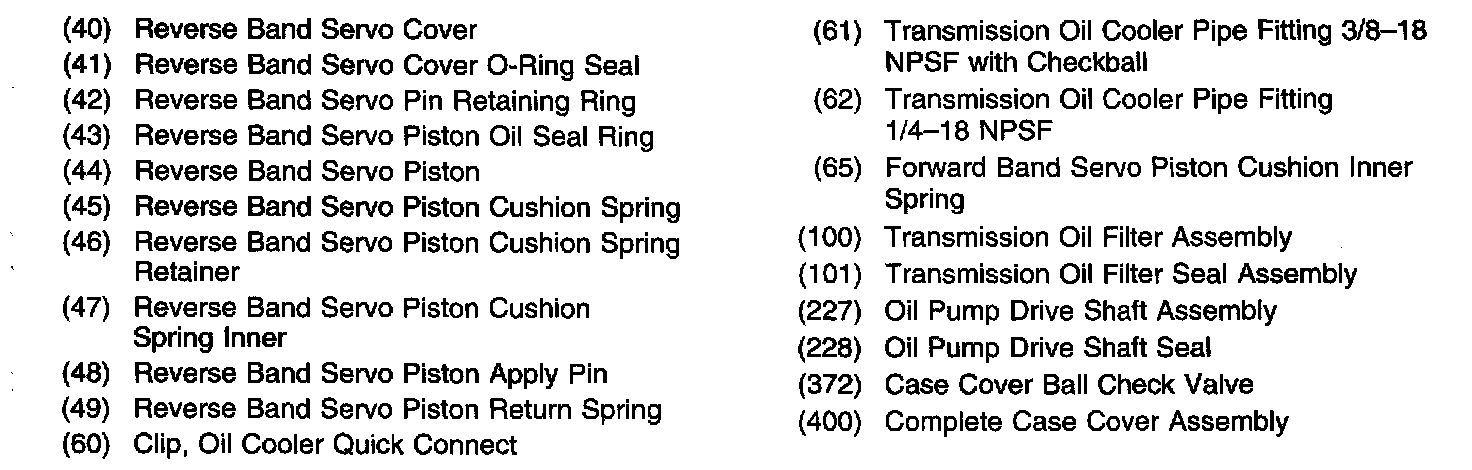

Case and Associated Parts

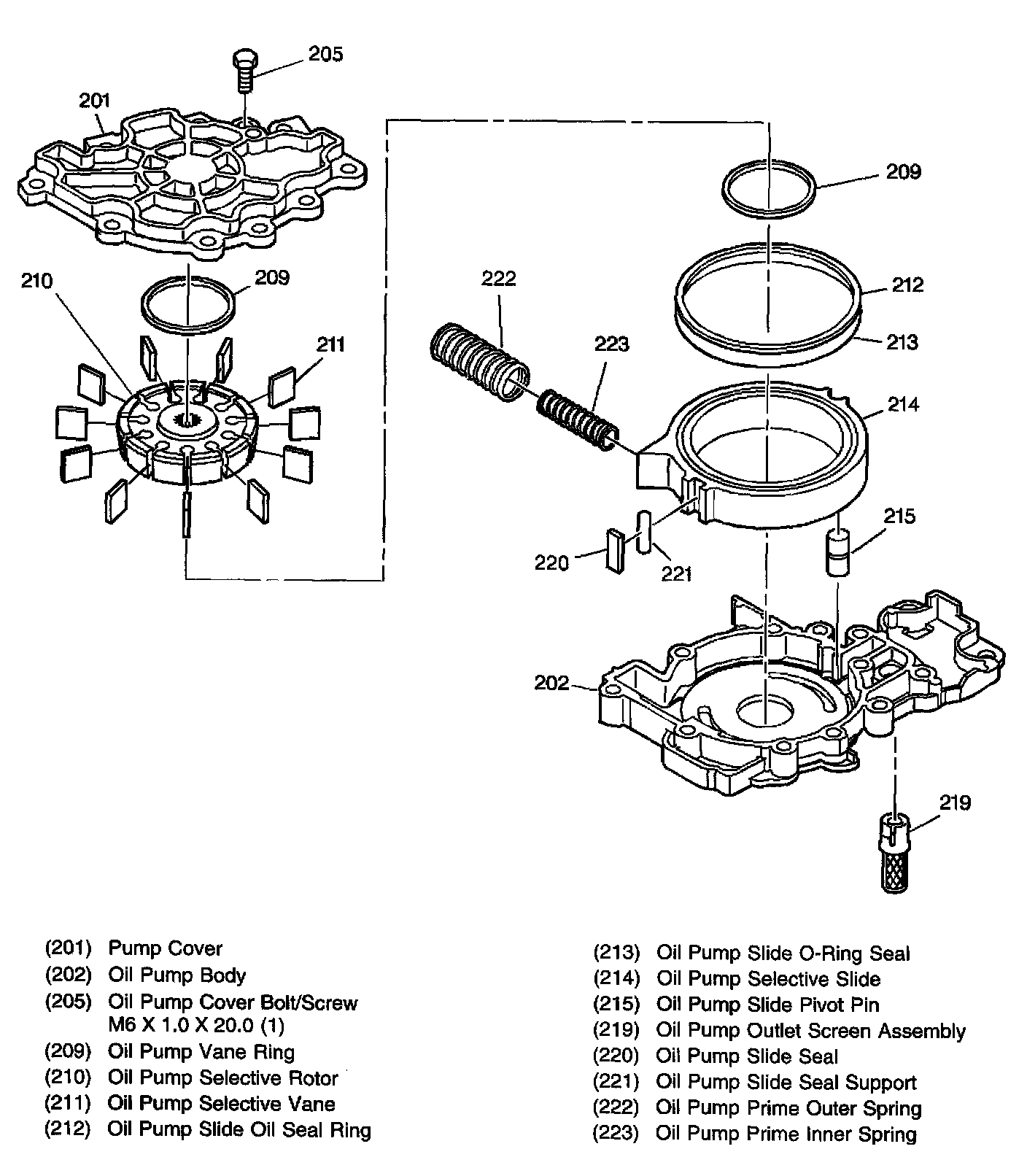

Oil Pump Assembly

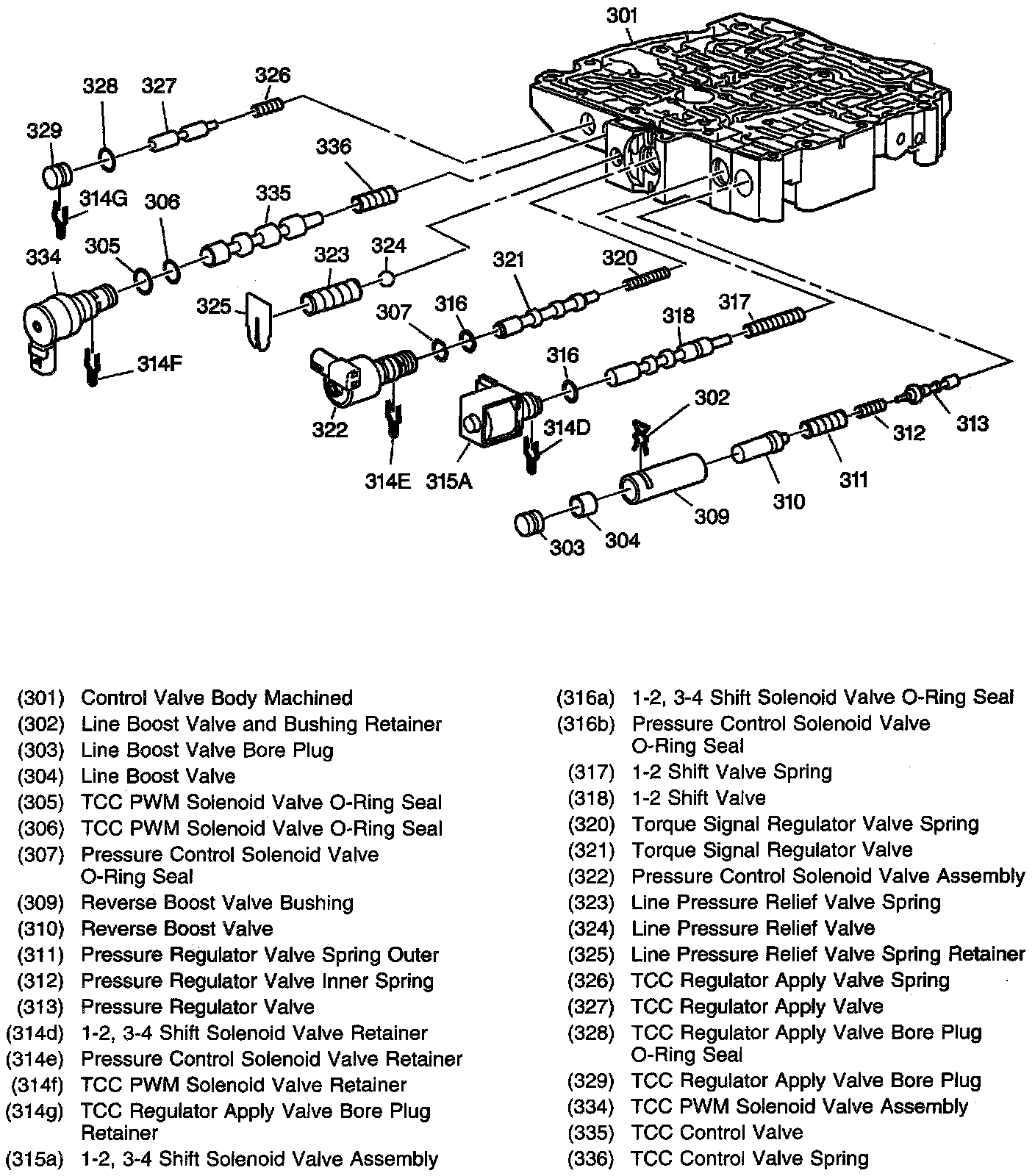

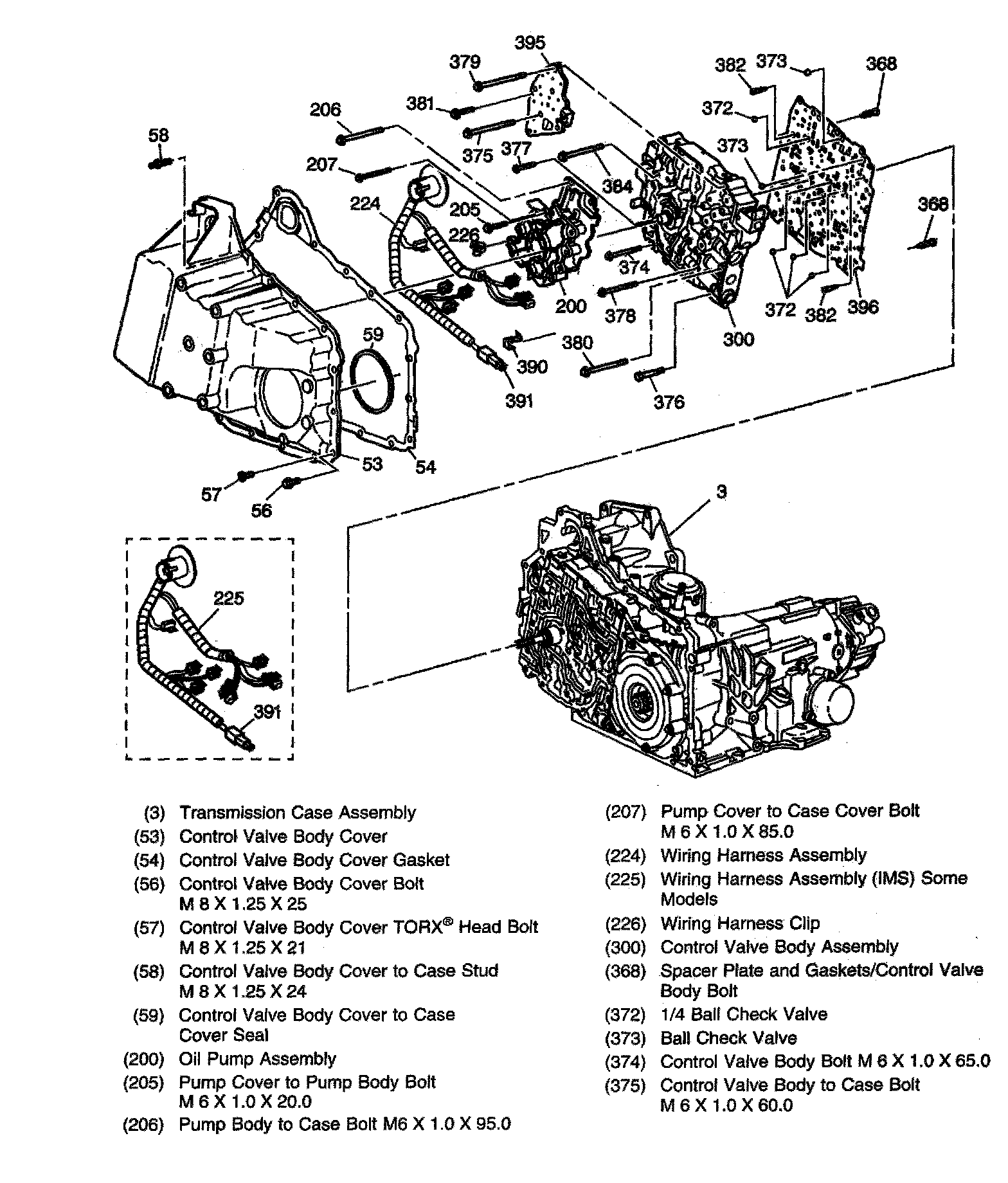

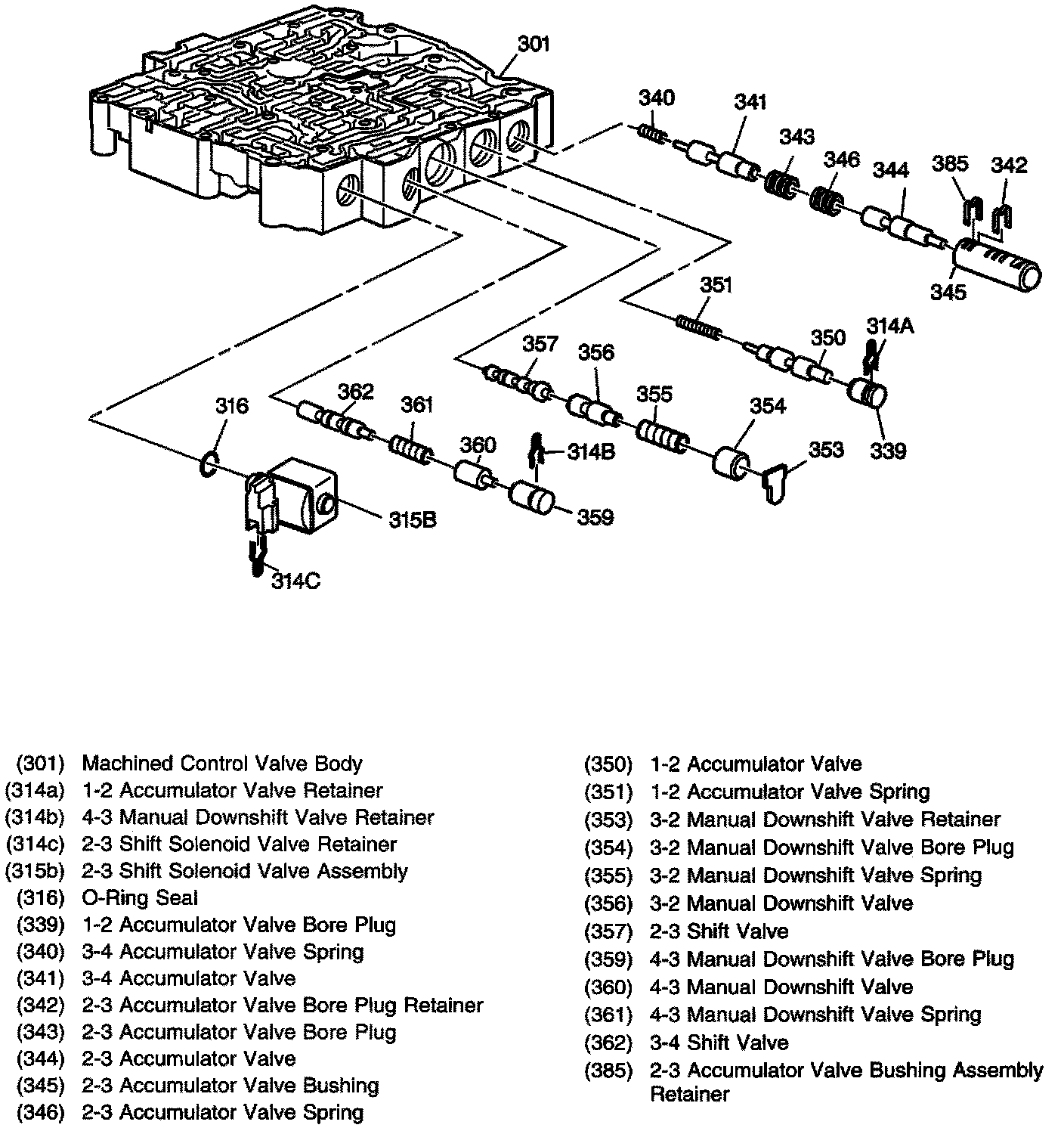

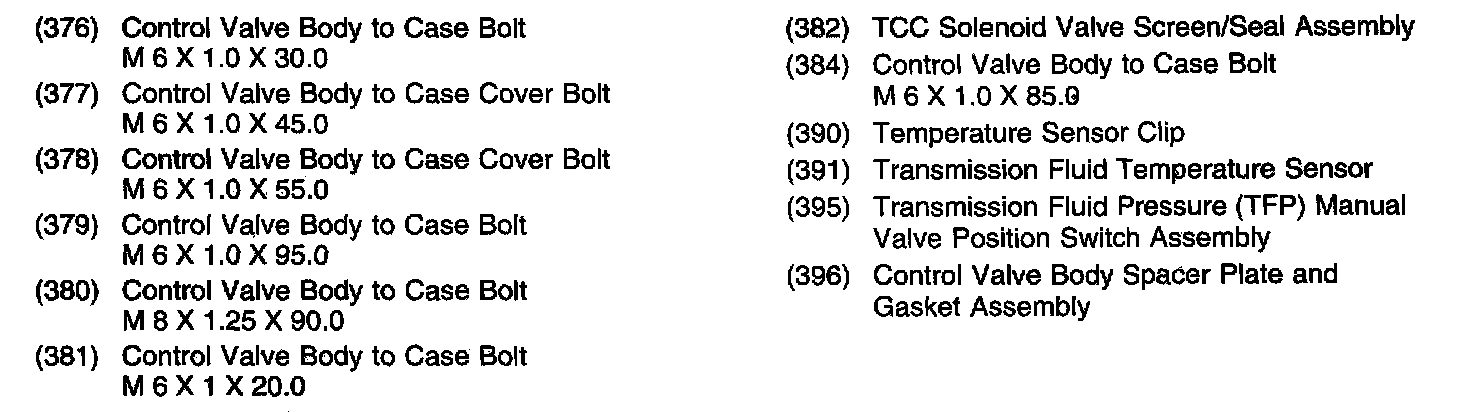

Control Valve Body Assembly

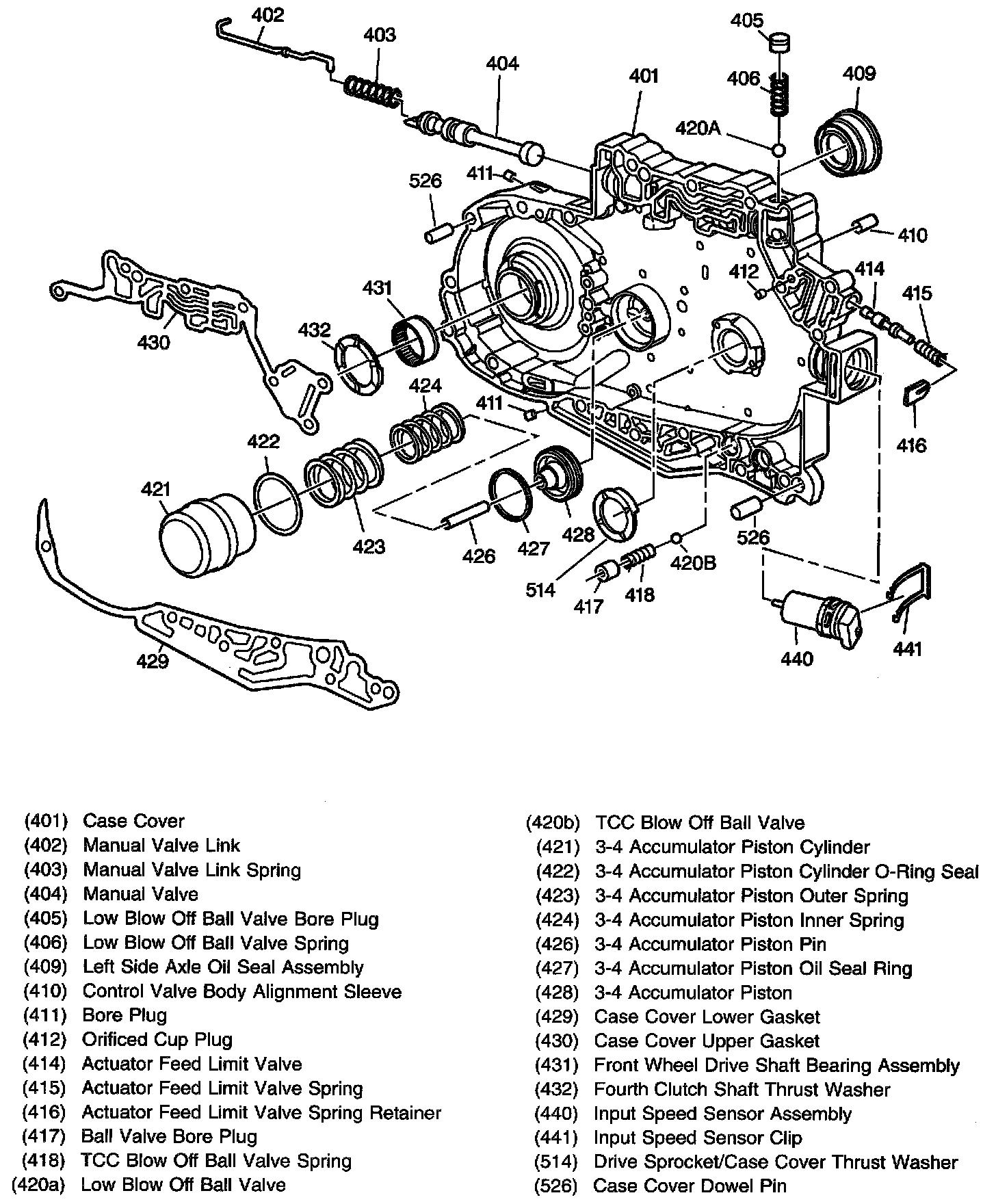

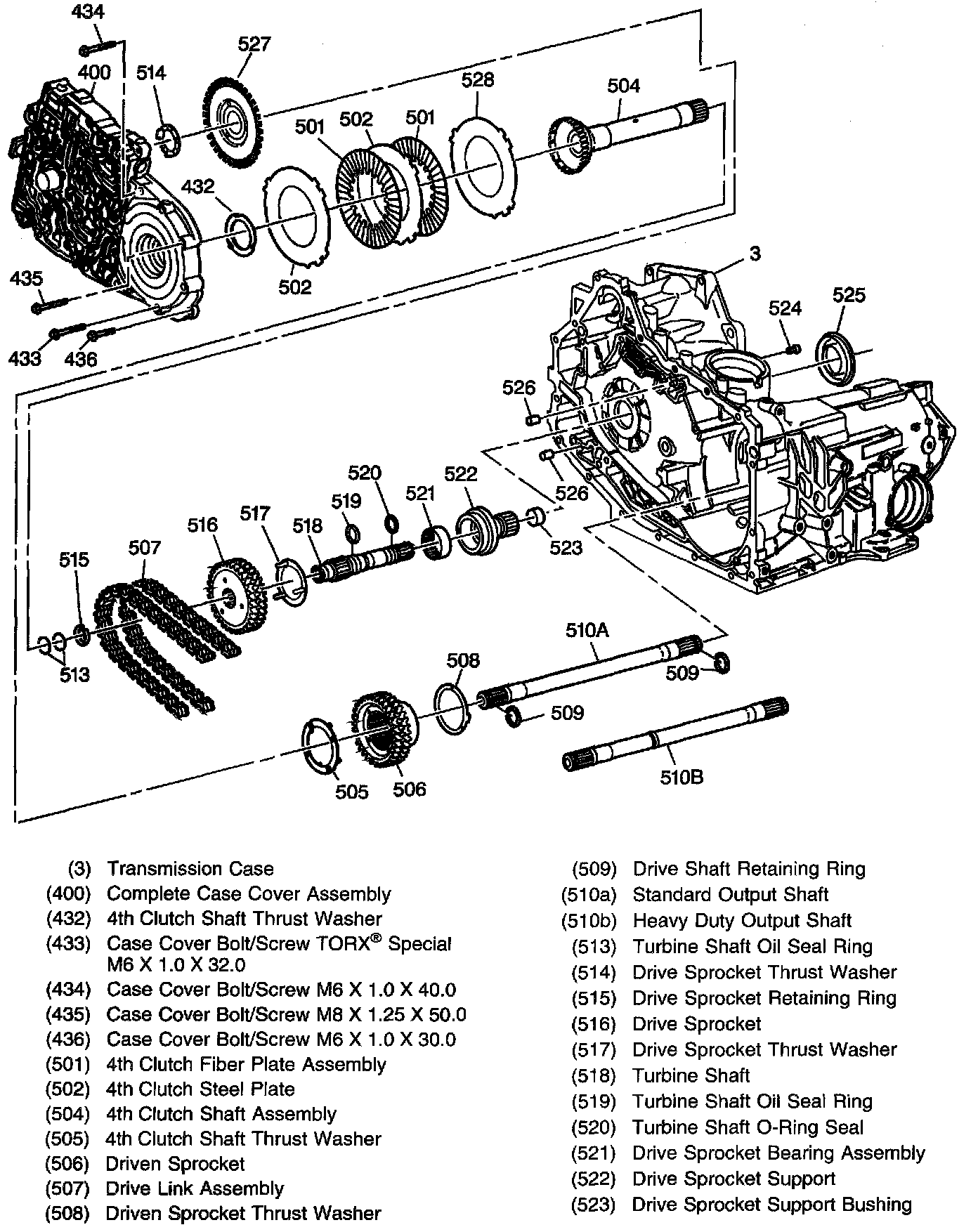

Case Cover Assembly

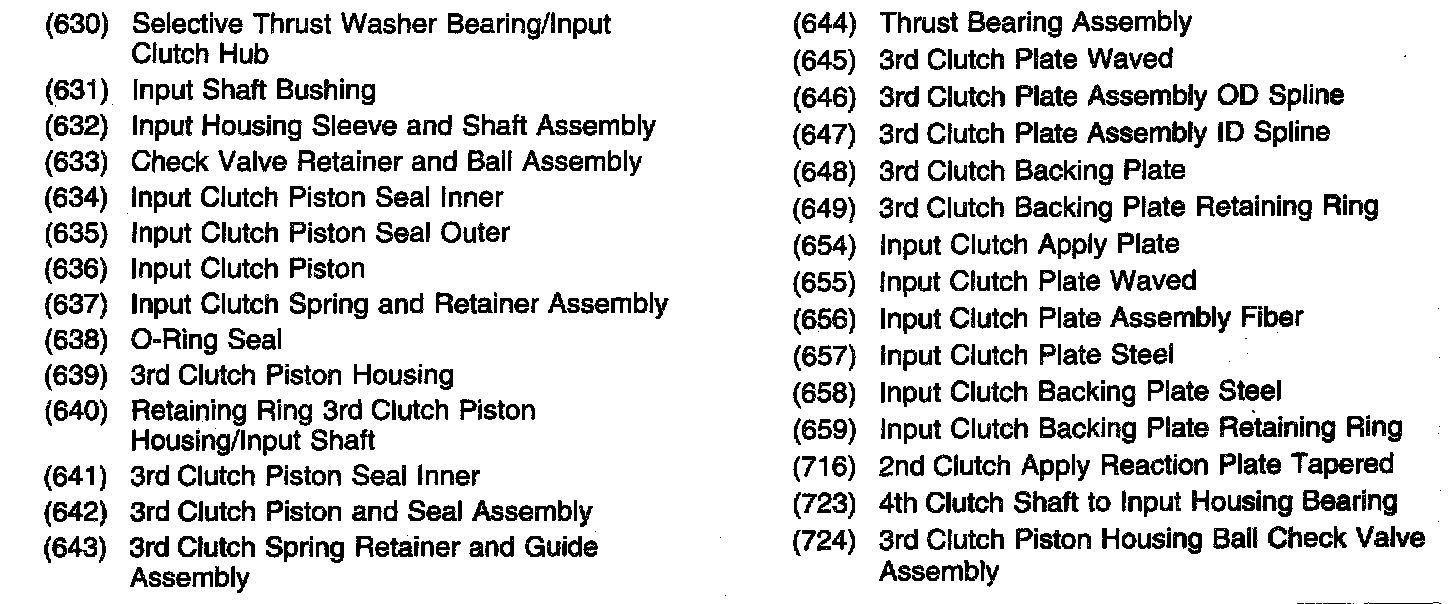

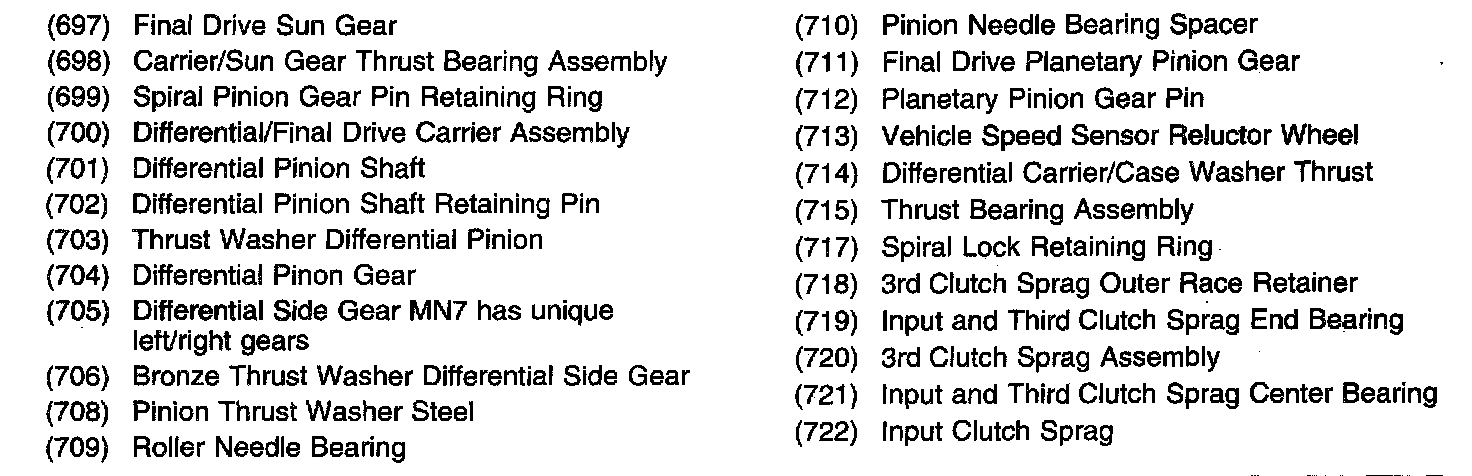

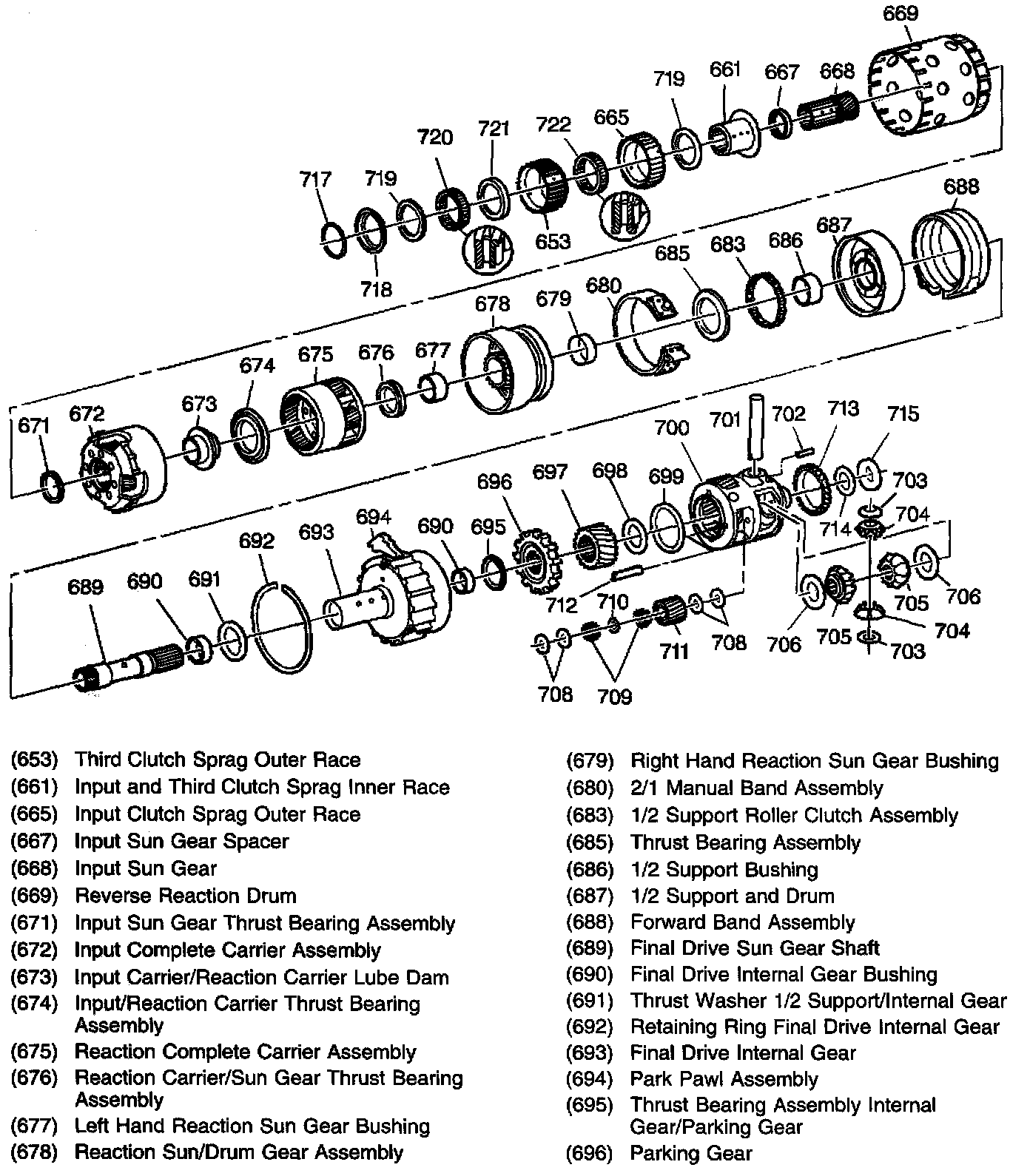

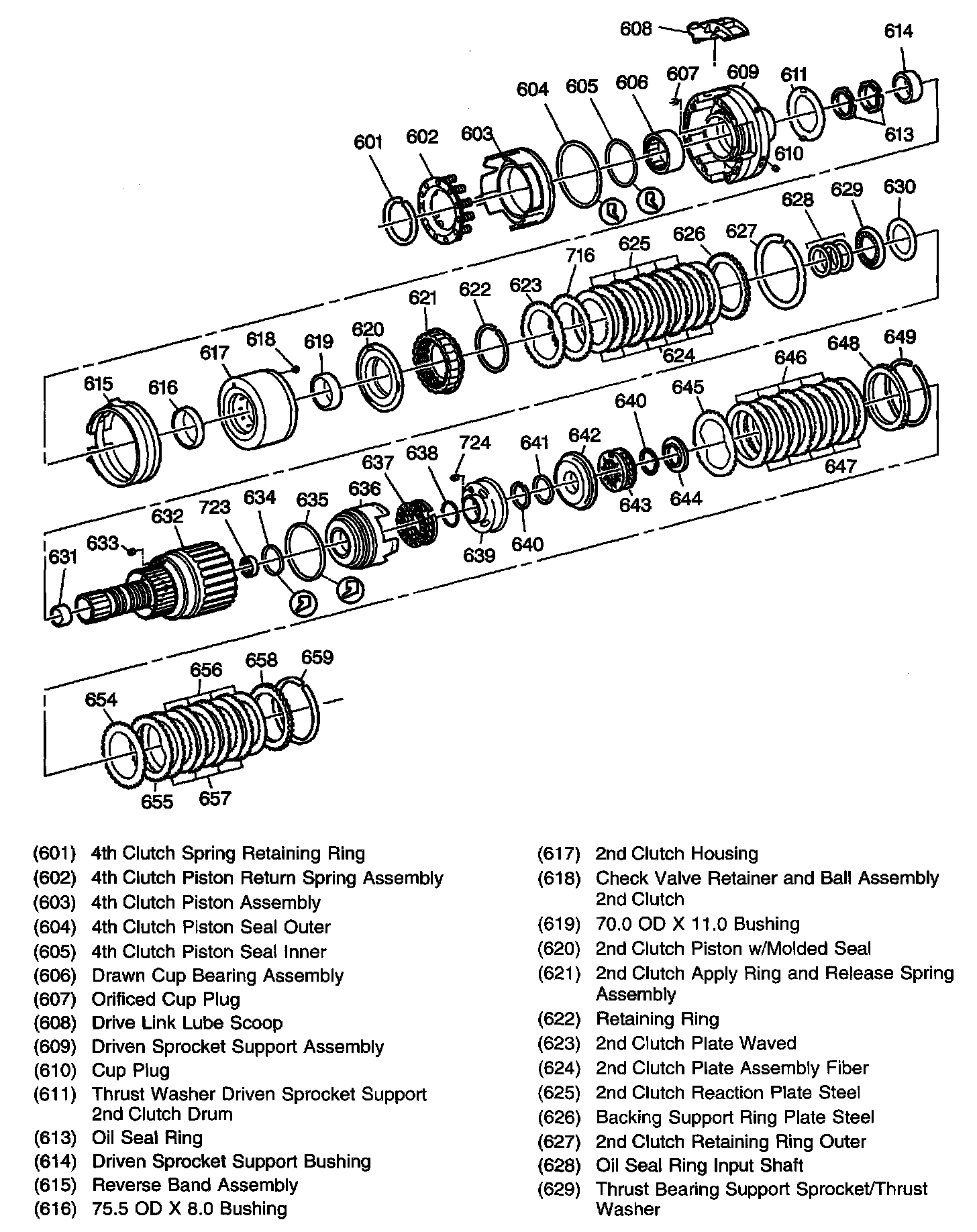

Internal Components

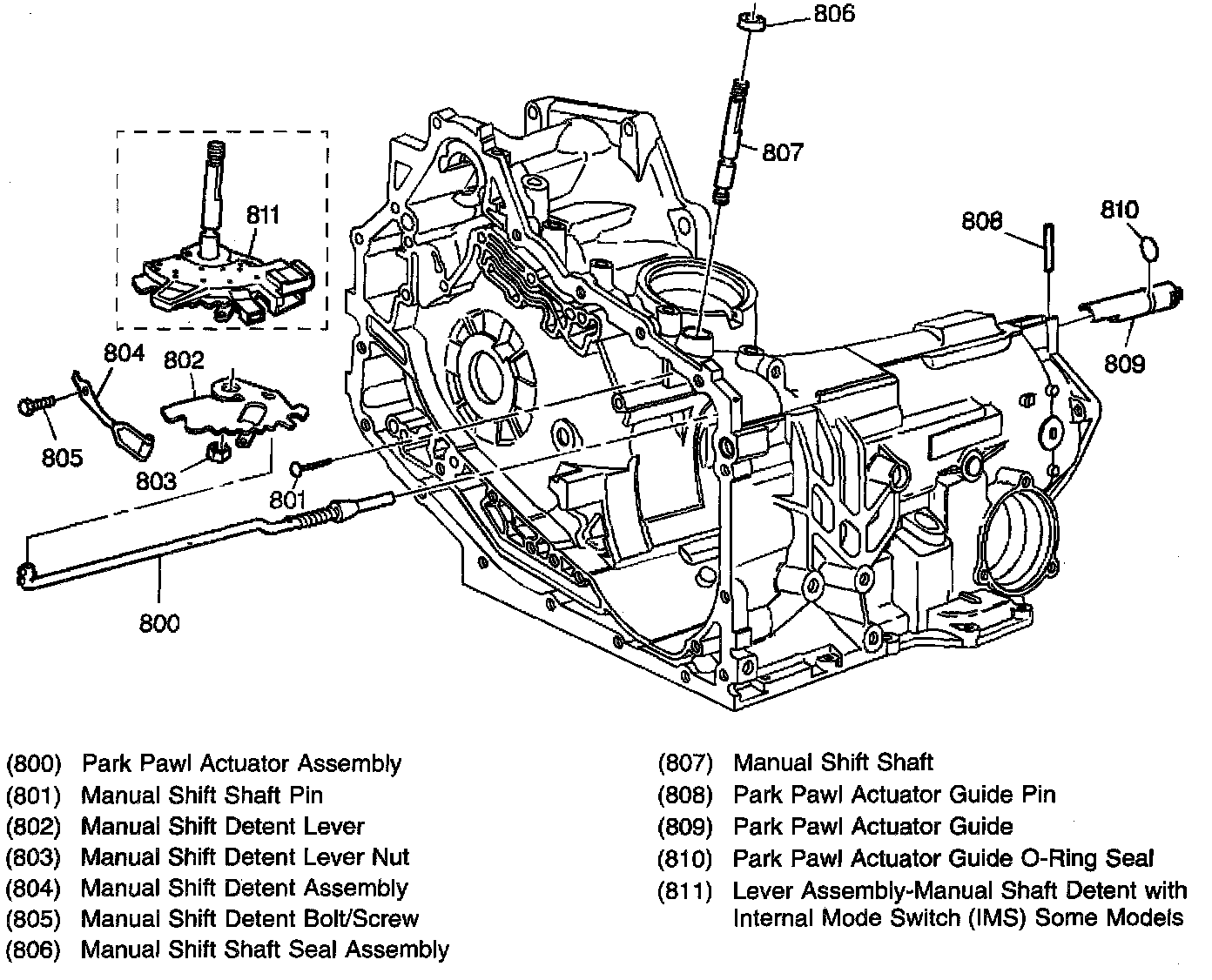

Manual Shaft and Parking System Assembly
