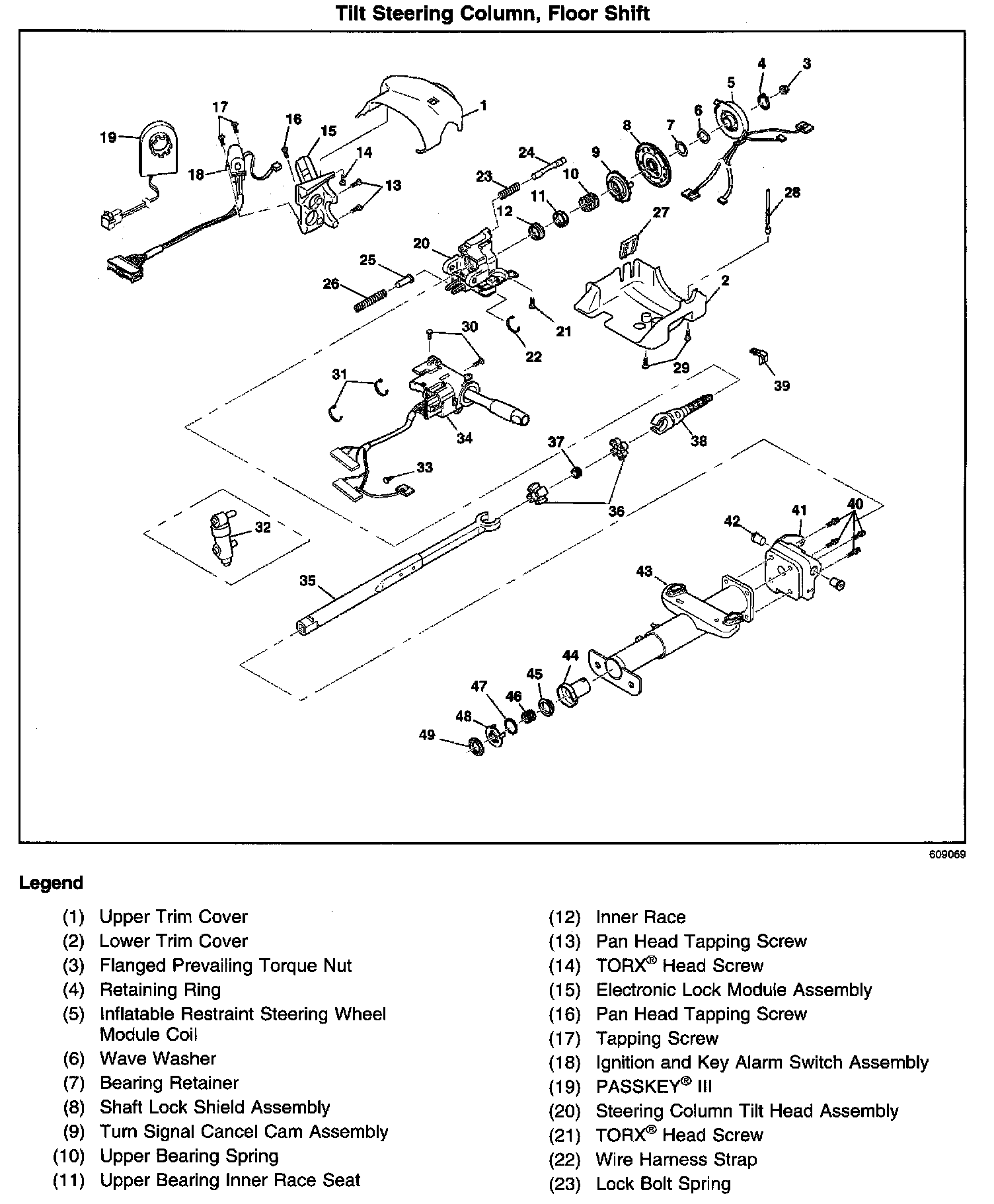

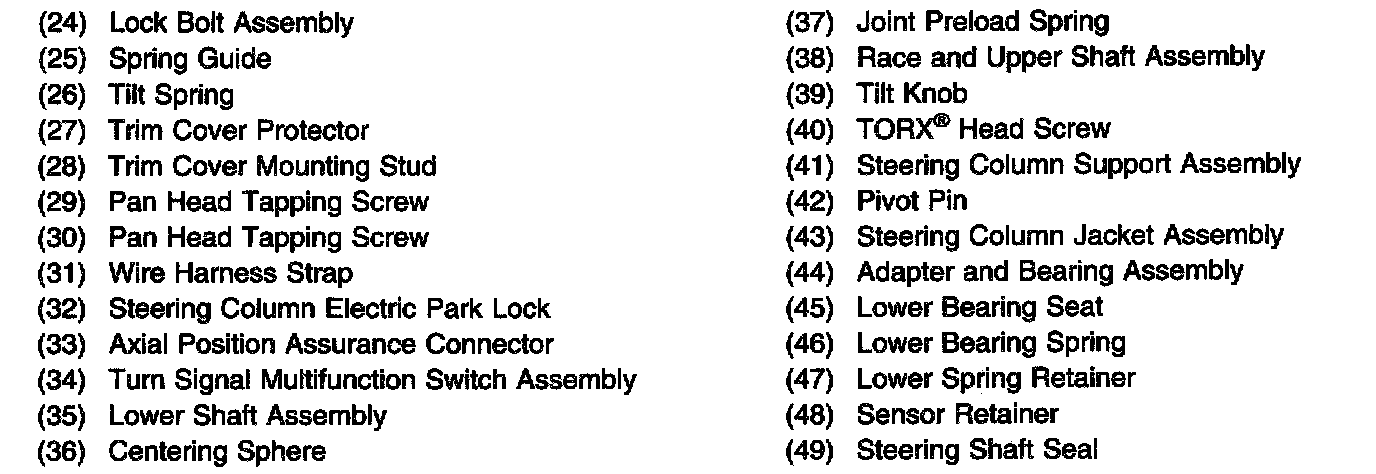

Exploded Views
>>
Steering
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

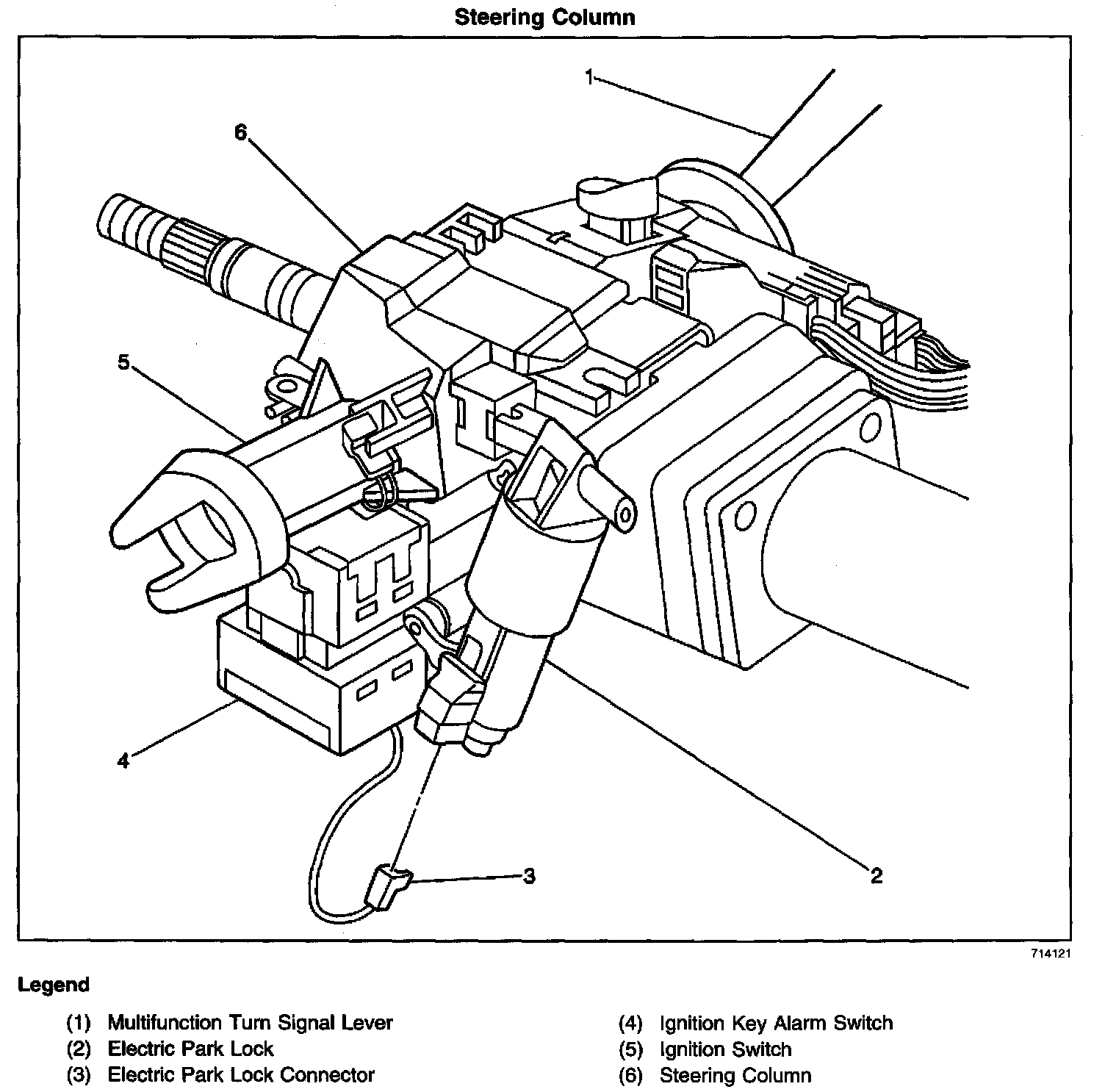

Locations View Part 1:
Locations View Part 2:
Locations View:
