Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
In-Line Fuse A & B Behind center of dash.
I/P Fuse Block Behind lower left side of dash.

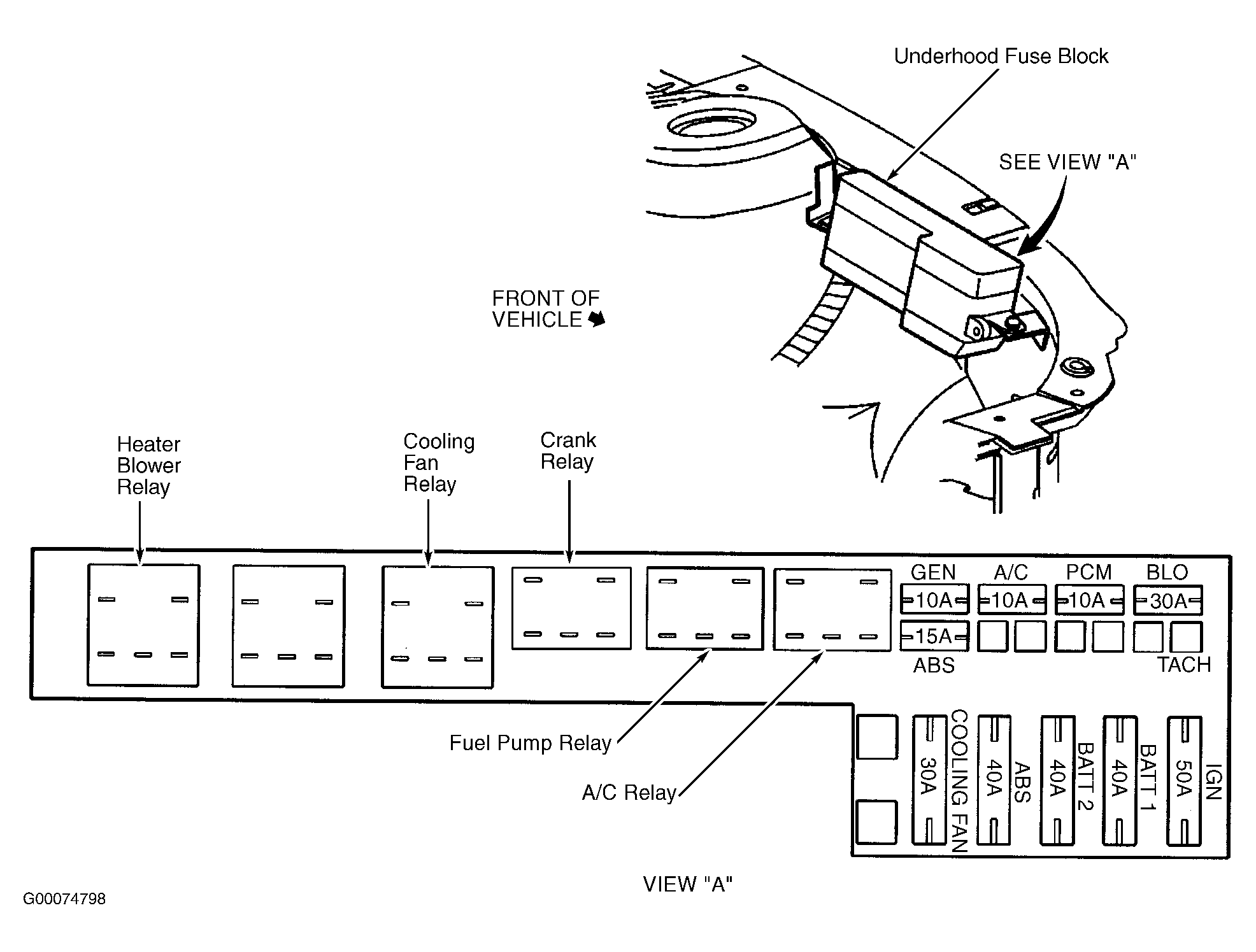

Underhood Fuse Block Left front of engine compartment. See Figure.
