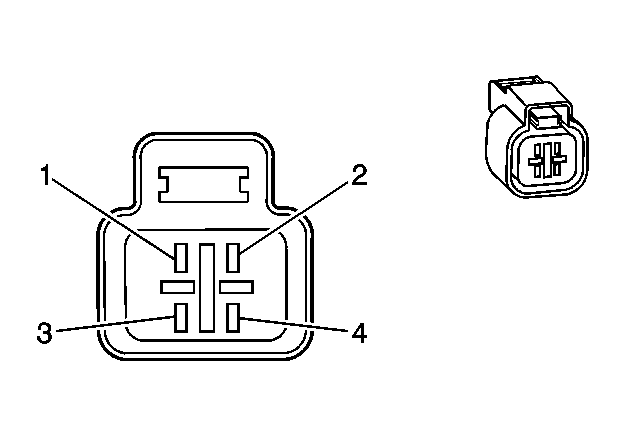

Headlamp Connector End View - Left
Headlamp Connector End View - Left
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 7283-5135-30
- 4-Way F (BK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
L-GN |
11 |
Headlamp High Beam Supply Voltage |
| 2 |
TN |
12 |
Headlamp Low Beam Supply Voltage |
| 3 |
WH/BU |
2140 |
Battery Positive Voltage |
| 4 |
WH/BU |
2140 |
Battery Positive Voltage |
