Body Control System Schematics

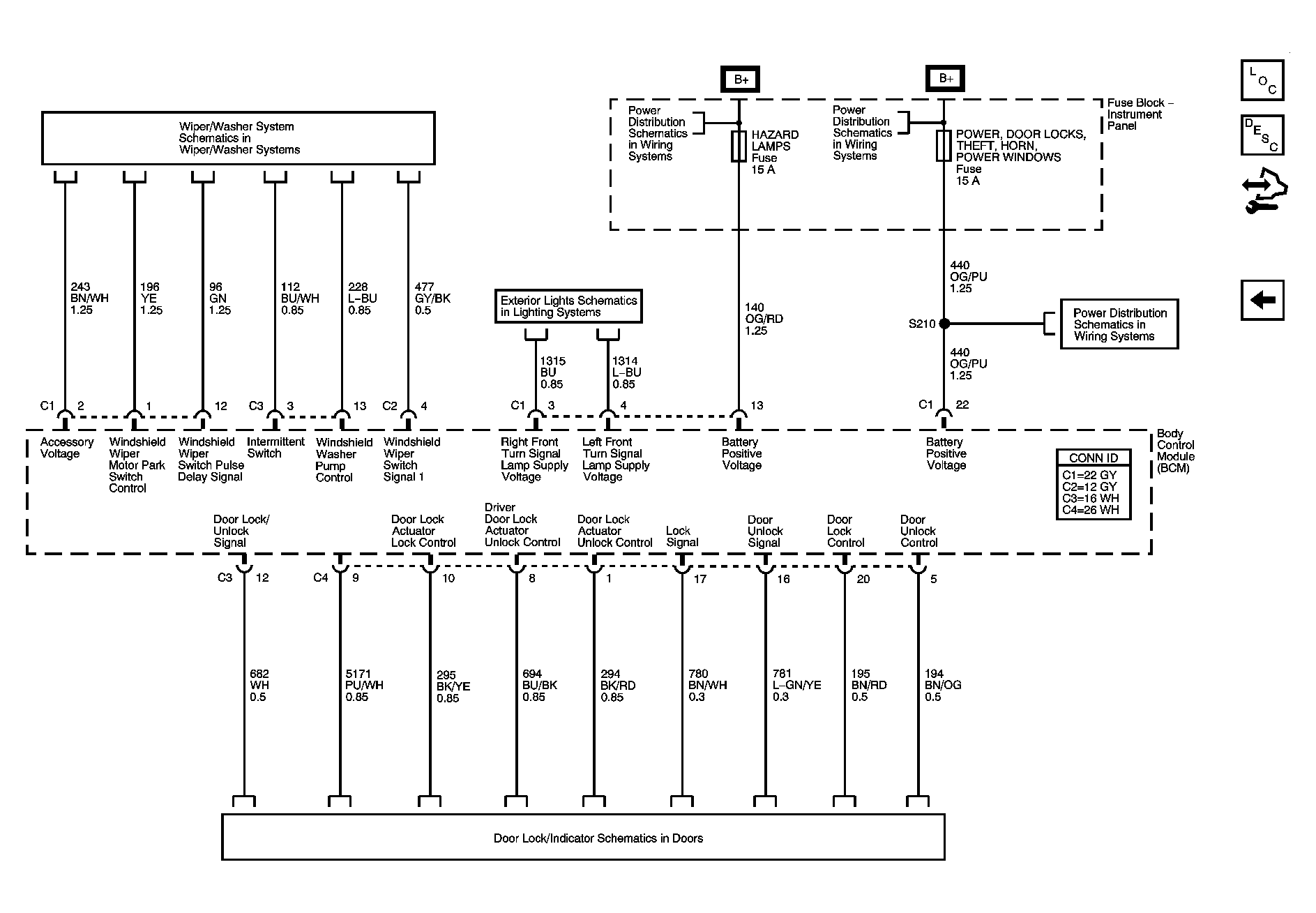

Fig 1: Body Control Module (BCM) Power and Ground

Courtesy of GENERAL MOTORS CORP.

Fig 2: Controlled/Monitored Subsystem References (1 of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Controlled/Monitored Subsystem References (2 of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Controlled/Monitored Subsystem References (3 of 3)

Courtesy of GENERAL MOTORS CORP.
