Installation Procedure

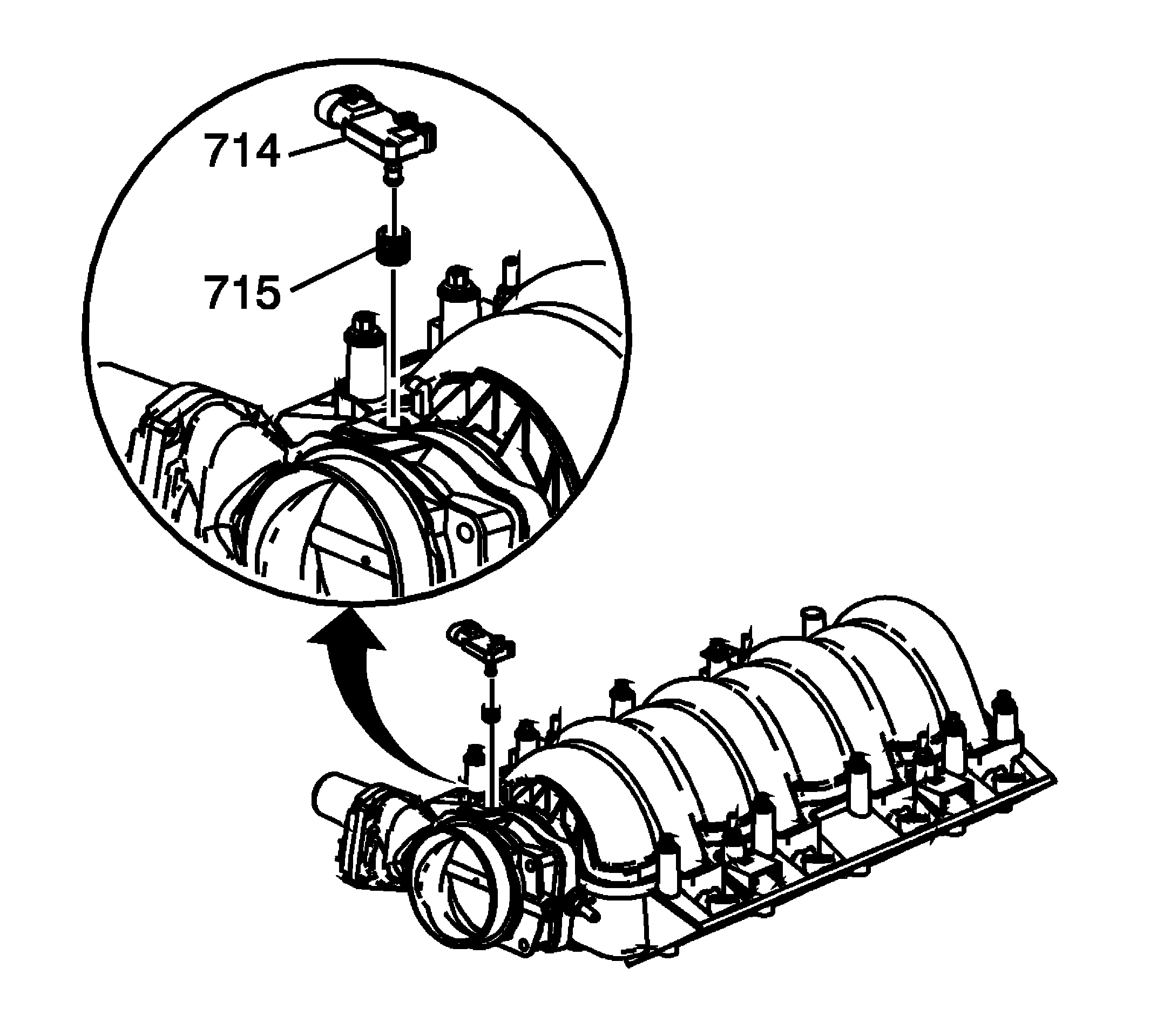

    Fig 1: MAP Sensor & Grommet
    GM1408858Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor (714).
    2. Fig 2: Oil Filler Cap, Right Sight Shield, MAP Sensor & Electrical Connector
    GM1464034Courtesy of GENERAL MOTORS CORP.
  2. Reconnect the MAP sensor electrical connector (3) to the engine wiring harness.
  3. Install engine sight shield (2).
  4. Install the oil filler cap (1).
