Power Steering Pump Replacement

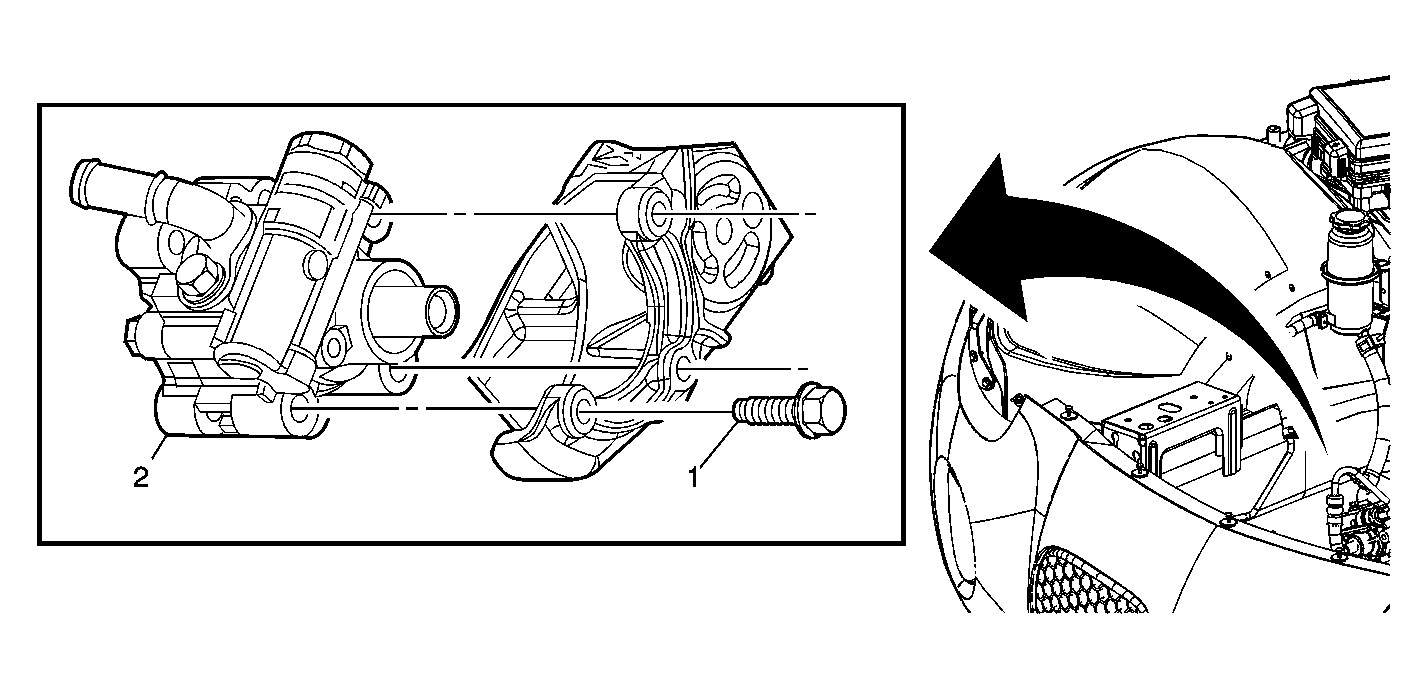

Fig 1: Power Steering Pump
GM1585425Courtesy of GENERAL MOTORS CORP.
Power Steering Pump Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the power steering pump pulley. Refer to Power Steering Pulley Replacement .
1 Power Steering Pump Mounting Bolt (Qty: 3)

Tighten:  22 N.m (16 lb ft)
