Control Module HVAC: Locations

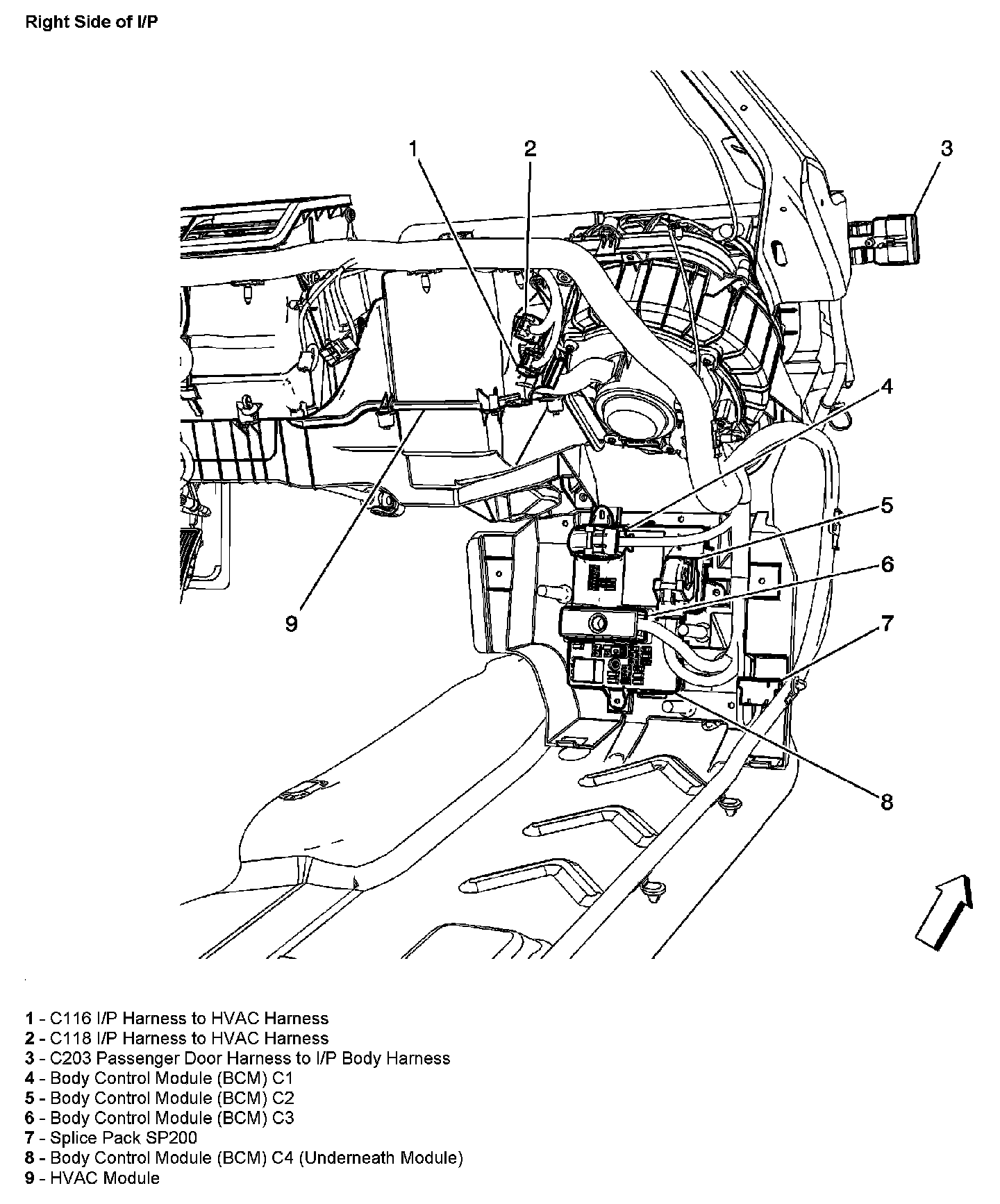

Right Side Of I/P:

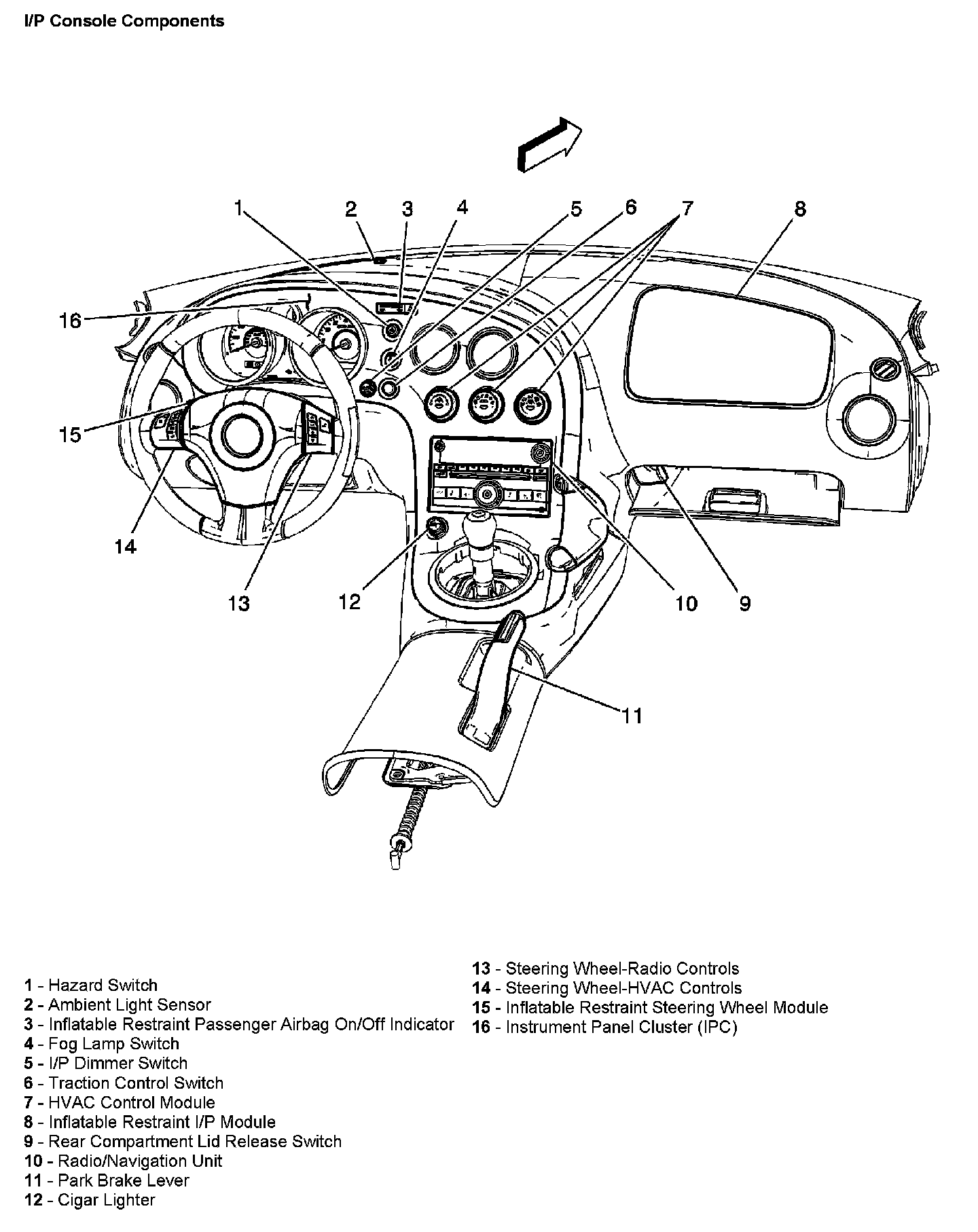

I/P Console Components:



HVAC Module Components:
