Removal Procedure

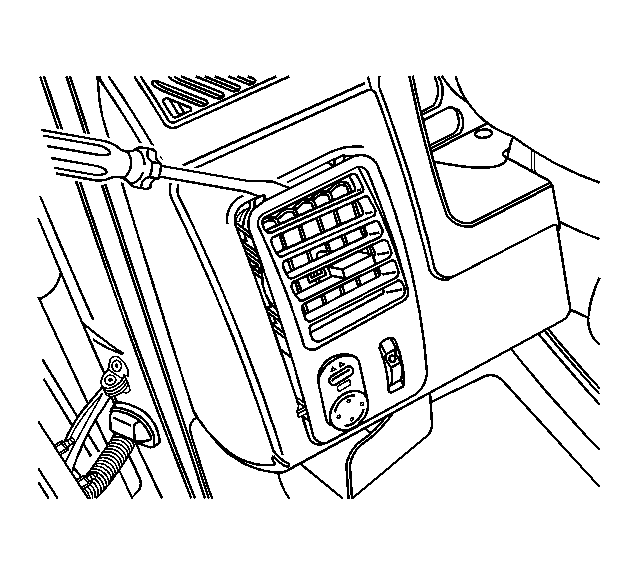

    Fig 1: Removing/Installing Left Front Air Deflector
    GM1344277Courtesy of GENERAL MOTORS CORP.
  1. Use a flat blade tool to remove the left front air deflector.

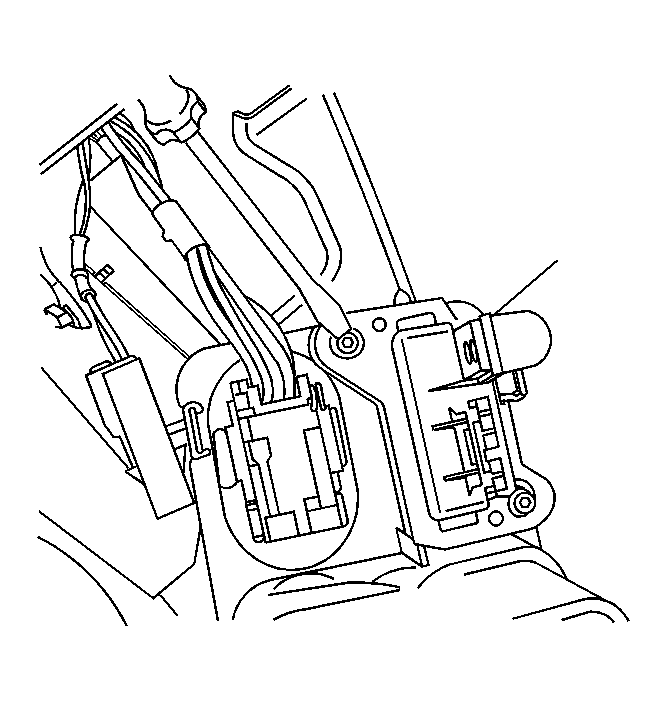

    2. Fig 2: View Of Power Mirror Switch Electrical Connection
    GM1344275Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connection from the power mirror switch
    3. Fig 3: View Of Power Mirror Switch
    GM1344285Courtesy of GENERAL MOTORS CORP.
  3. Remove the power mirror switch.
