Removal Procedure

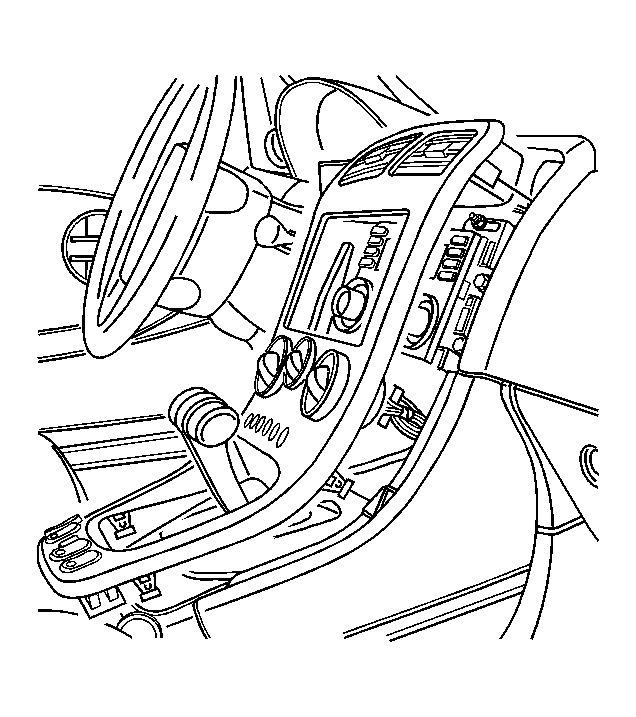

    Fig 1: View Of Center Console Trim Bezel
    GM1344259Courtesy of GENERAL MOTORS CORP.
  1. Remove the console shift lever bezel. Refer to Trim Bezel Replacement - Center in Instrument Panel, Gages, and Console.
    2. Fig 2: Removing Screws From Power Window Switch Assembly
    GM1344240Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws from the power window switch assembly.
    3. Fig 3: View Of Power Window Switch Assembly
    GM1344239Courtesy of GENERAL MOTORS CORP.
  3. Remove the switch assembly from the bezel.
