Removal Procedure

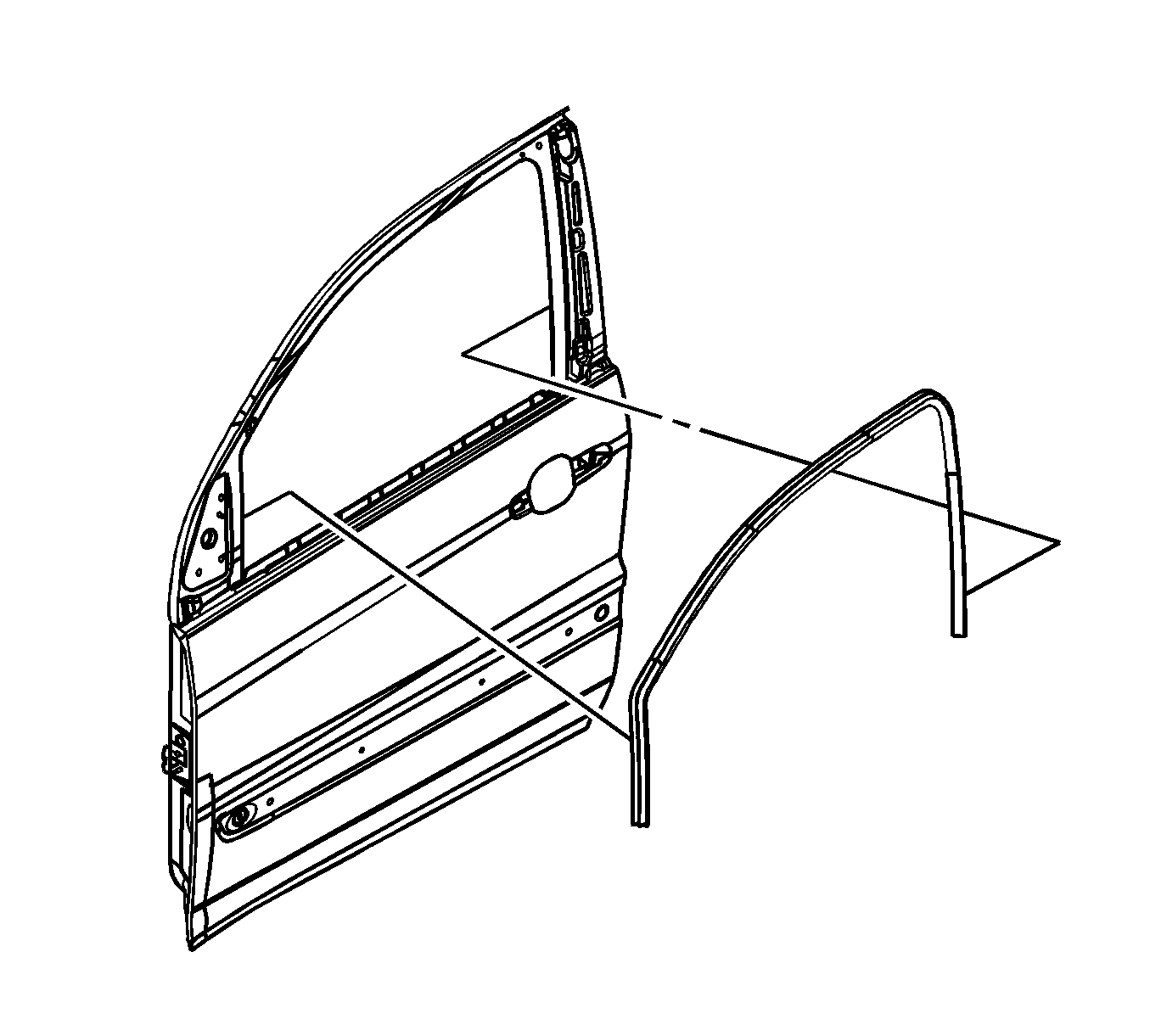

    Fig 1: View Of Front Window Weatherstrip Run Channel Assembly
    GM1378601Courtesy of GENERAL MOTORS CORP.
  1. Lower the front door window.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the inner belt seal. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  4. Starting at one end, carefully pull the window weatherstrip run channel assembly from the door frame.
