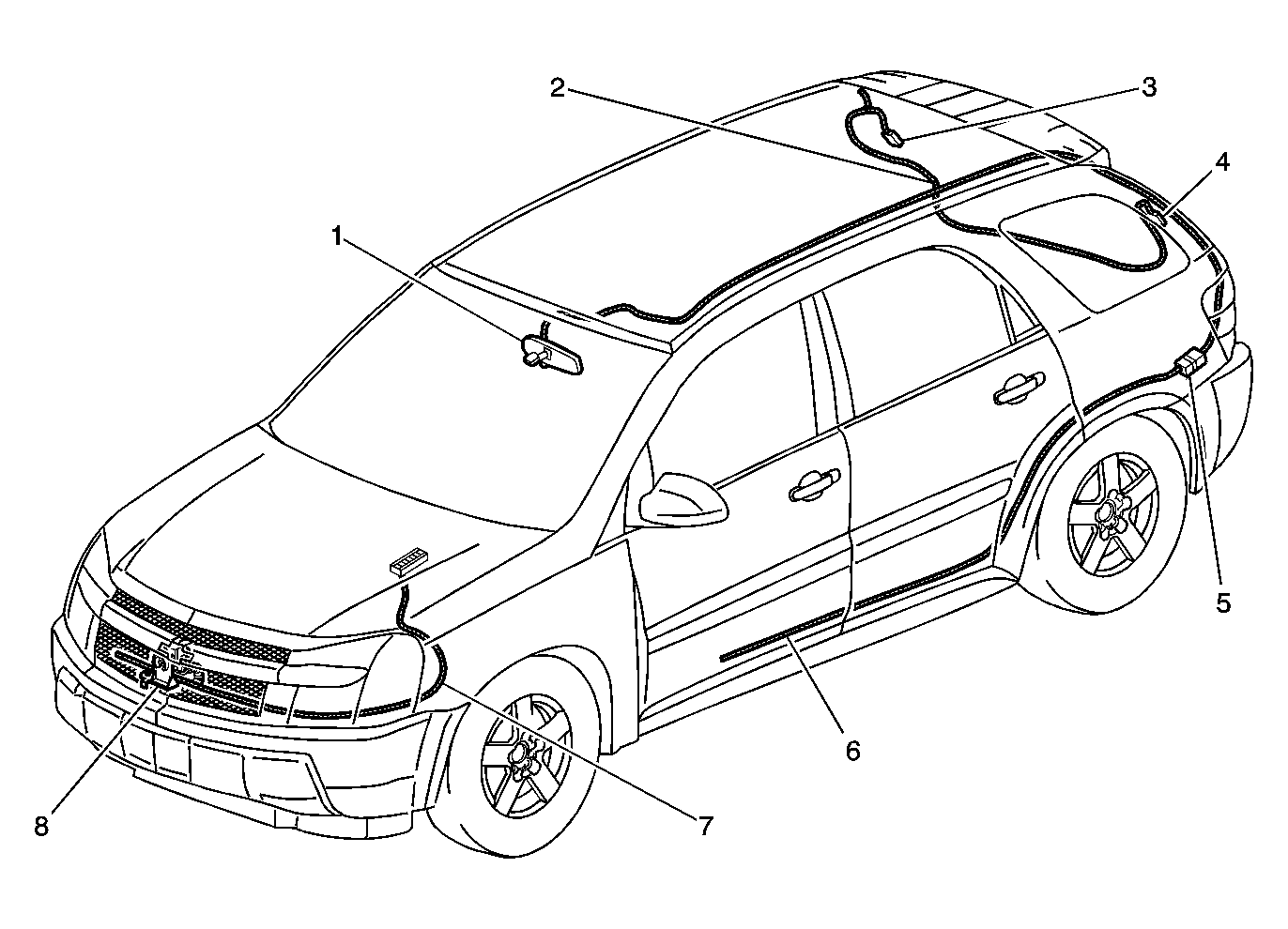

Stationary Windows Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inside Rearview Mirror |
| 2 |
Liftgate Harness |
| 3 |
Rear Defogger Grid C2 |
| 4 |
Rear Defogger Grid C1 |
| 5 |
C300 |
| 6 |
Body Harness |
| 7 |
Forward Lamp Harness |
| 8 |
Ambient Air Temperature Sensor (DH3/DF5) |
