ABS Schematics

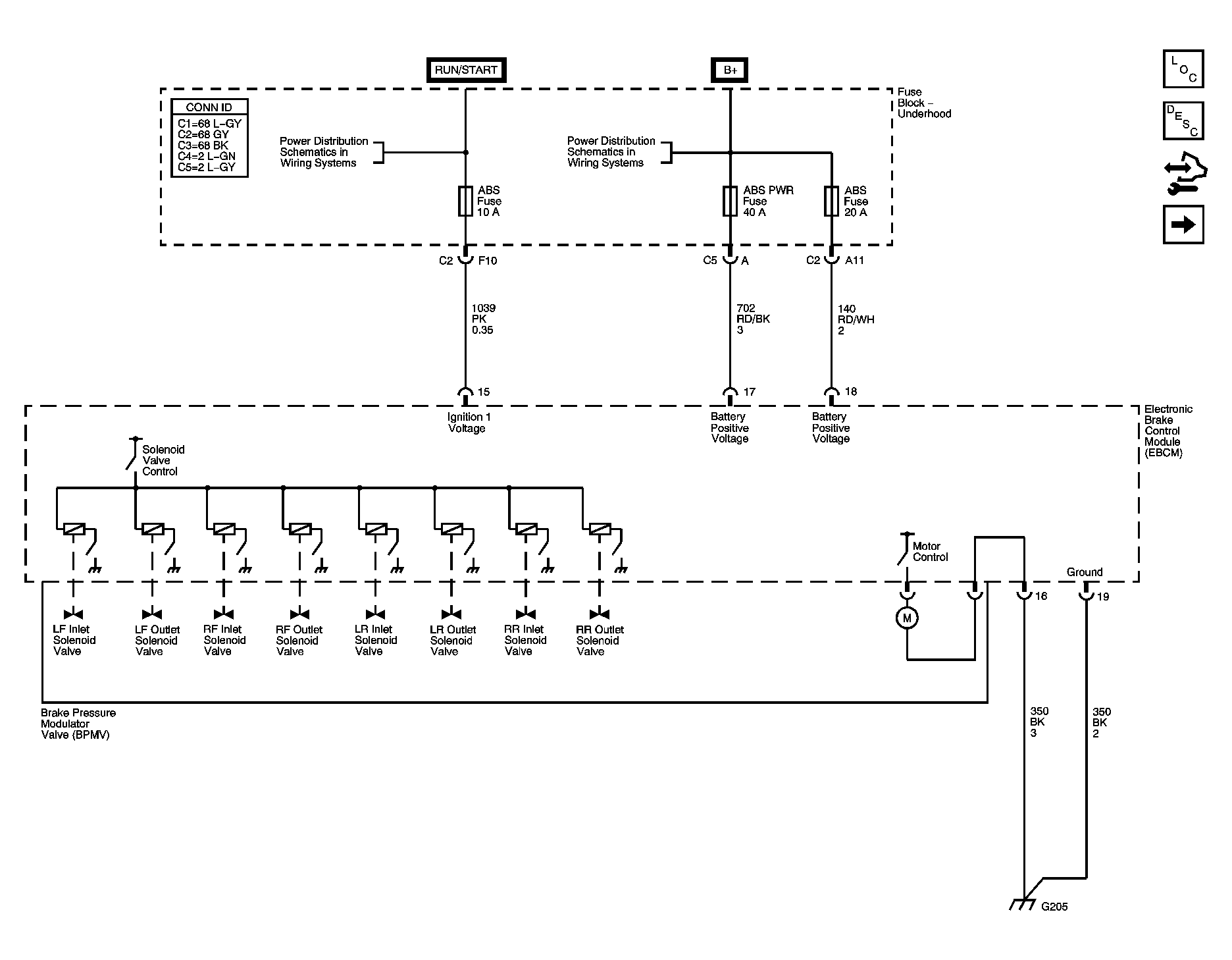

Fig 1: Power, Ground
GM1380898Courtesy of GENERAL MOTORS CORP.

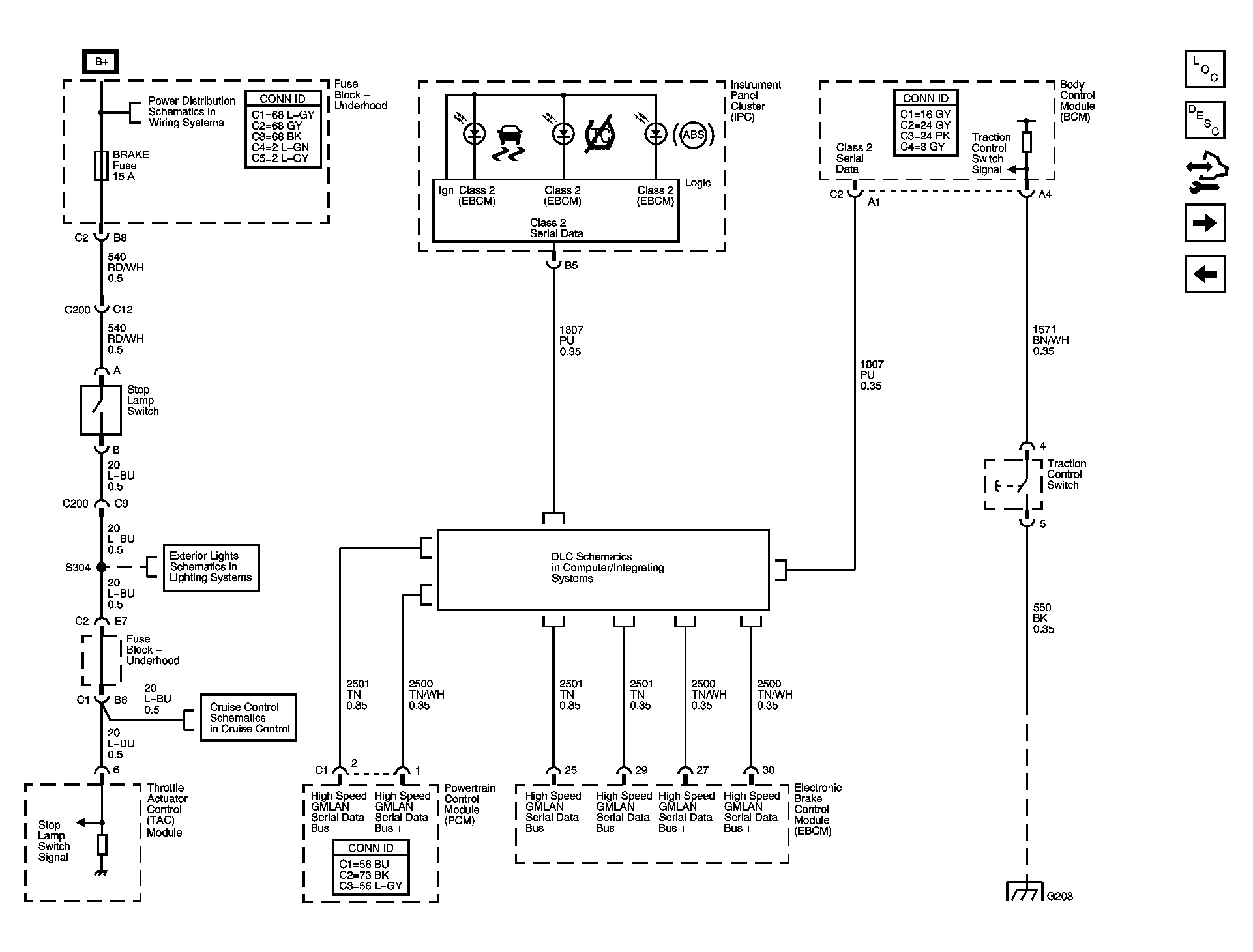

Fig 2: Indicators, TC Switch
GM1625861Courtesy of GENERAL MOTORS CORP.

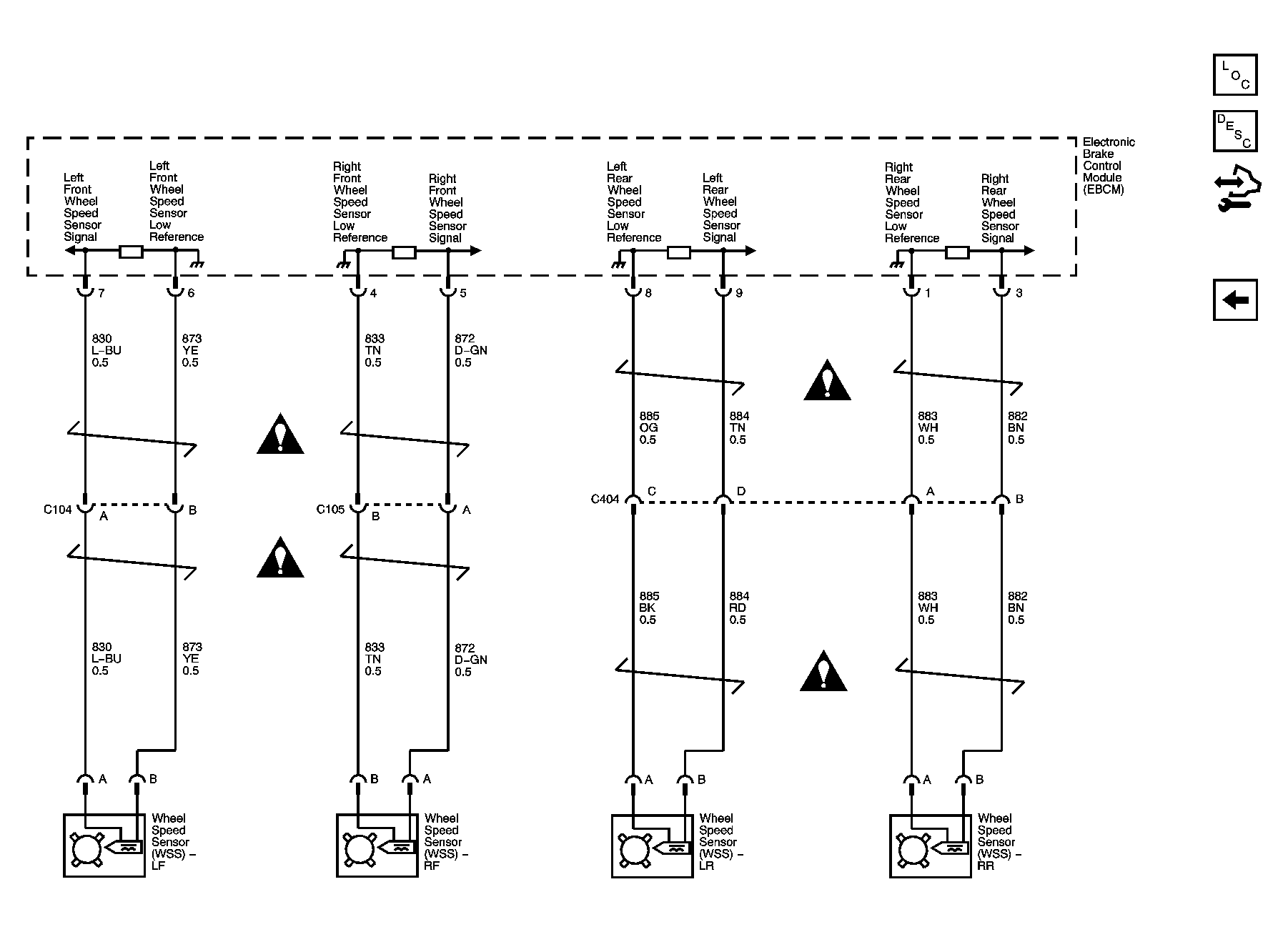

Fig 3: Wheel Speed Sensors
GM1380900Courtesy of GENERAL MOTORS CORP.
