Engine Controls Schematics

Fig 1: Power, Ground, ENG MAIN Relay, MIL, PCM Communication

Courtesy of GENERAL MOTORS CORP.

Fig 2: 5-Volt References

Courtesy of GENERAL MOTORS CORP.

Fig 3: Low References

Courtesy of GENERAL MOTORS CORP.

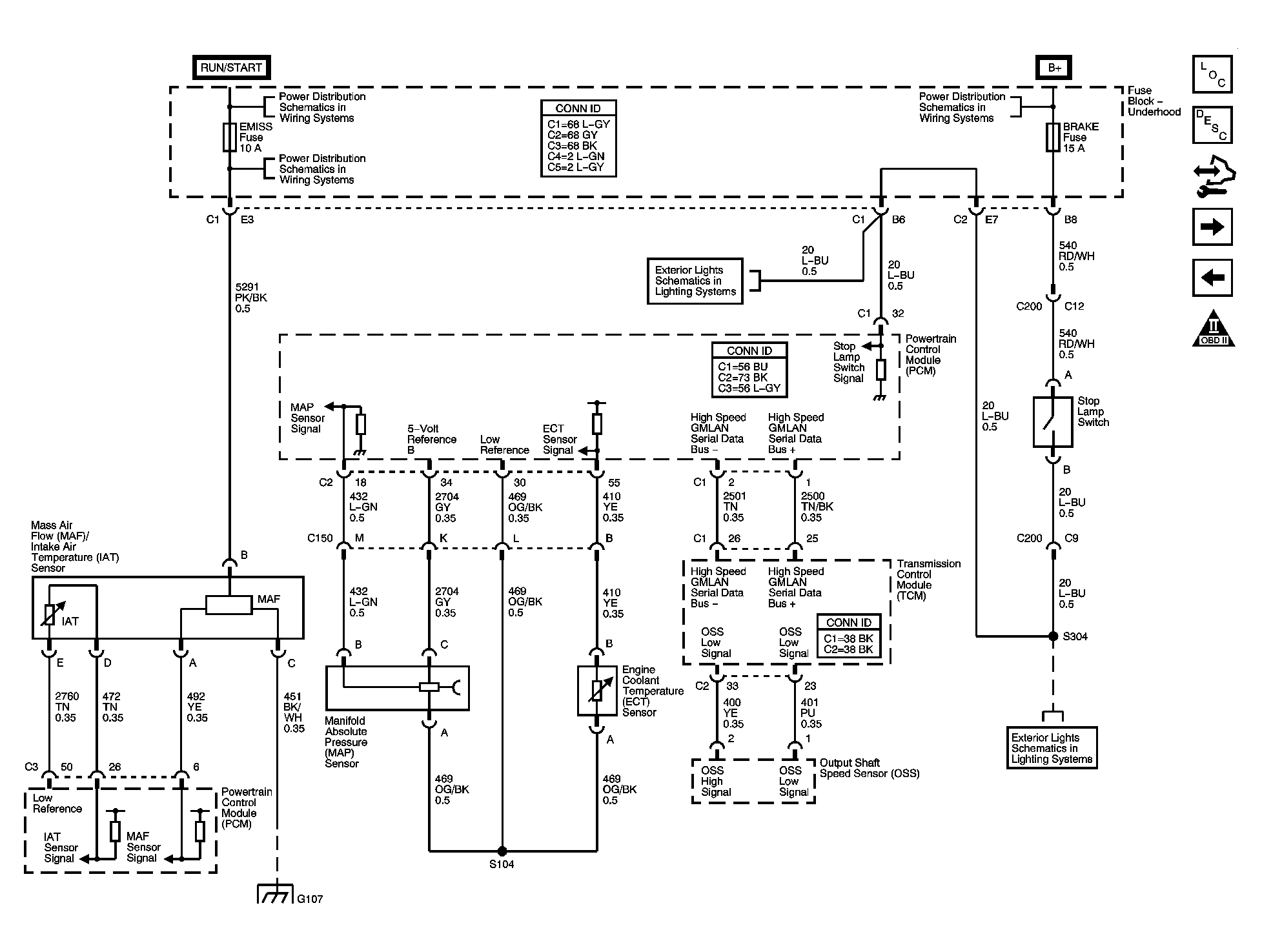

Fig 4: Engine Data Sensors - MAF/IAT, MAP, ECT, Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

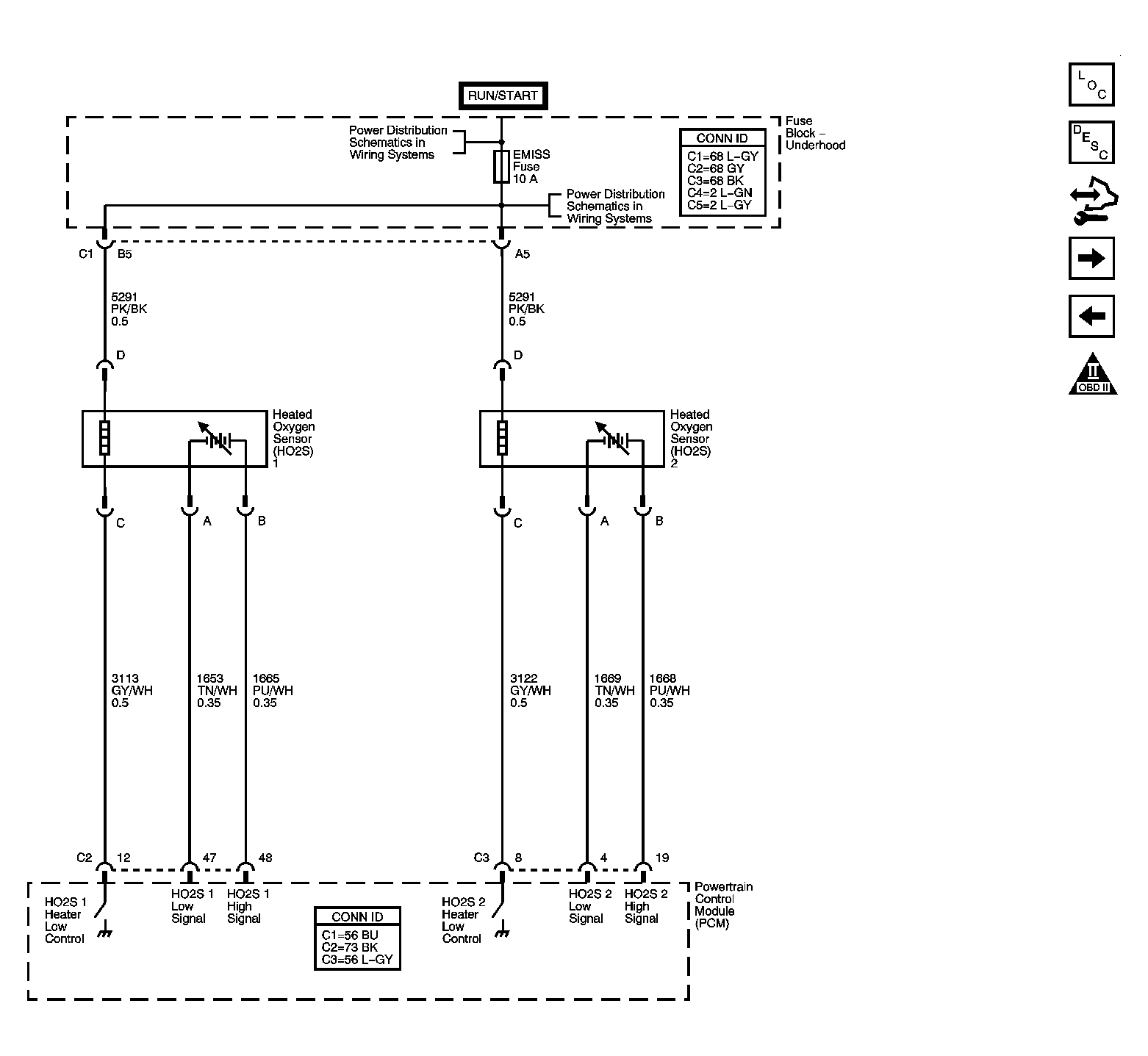

Fig 5: Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 6: Throttle Controls

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition System - ICM

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition System - Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 9: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

Fig 10: EGR, FTP, EVAP Solenoids

Courtesy of GENERAL MOTORS CORP.

Fig 11: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
