Input Speed Sensor Installation

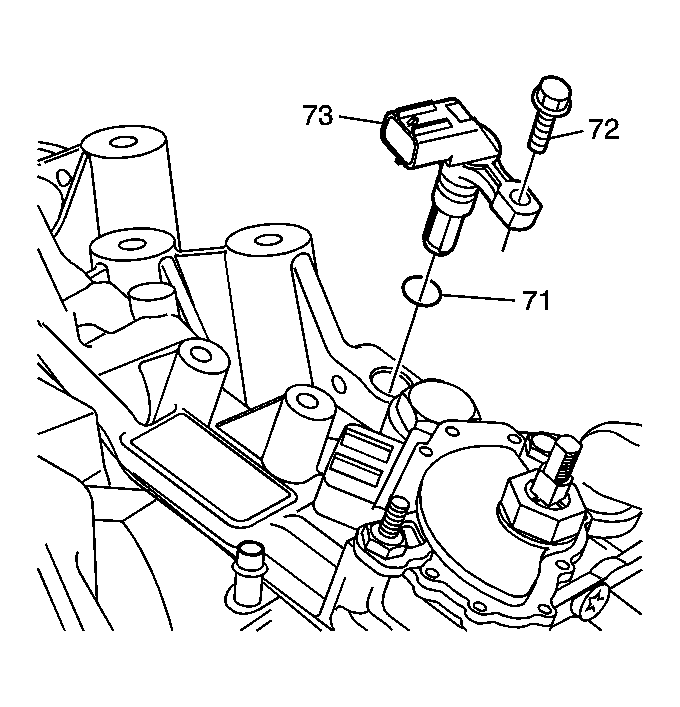

    Fig 1: View Of Input Shaft Speed Sensor
    GM749325Courtesy of GENERAL MOTORS CORP.
  1. Apply automatic transmission fluid to the new input speed sensor O-ring seal (71).
  2. Install the new input speed sensor O-ring seal (71) onto the input speed sensor (73).
  3. Install the input speed sensor (73) into the transmission case assembly (17).
    4. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the M6 x 1.0 x 16 mm input speed sensor bolt (72).

    Tighten:  Tighten the input speed sensor bolt (72) to 5 N.m (44 lb in).
