Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

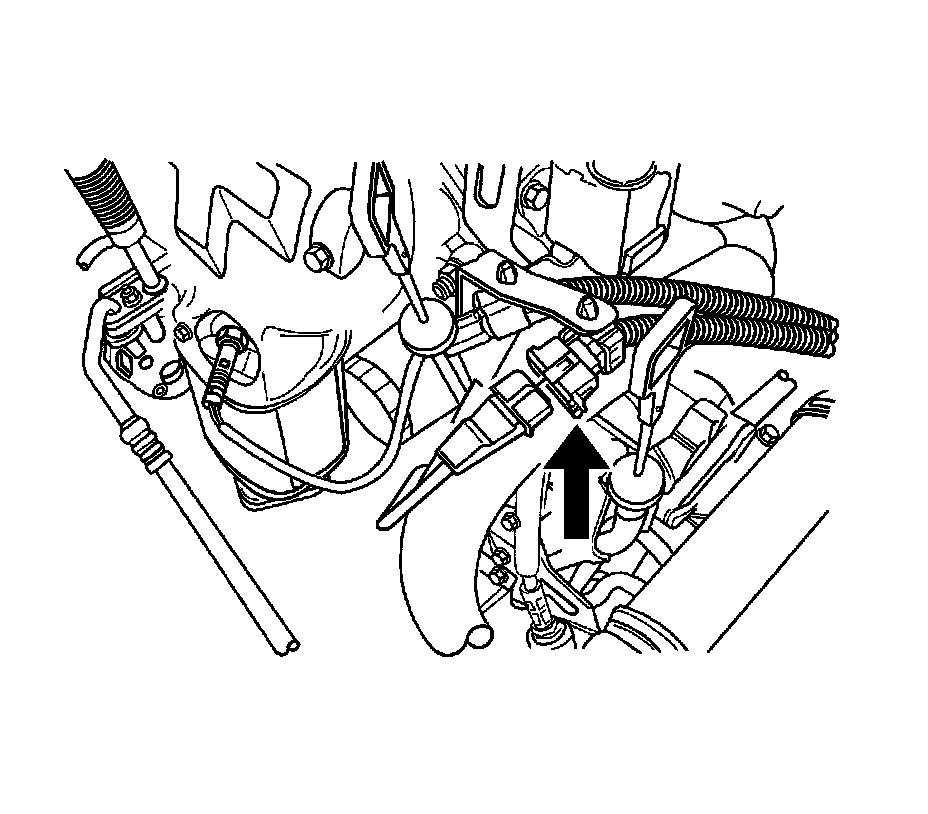

2. Disconnect the crankshaft position (CKP) sensor electrical connector.

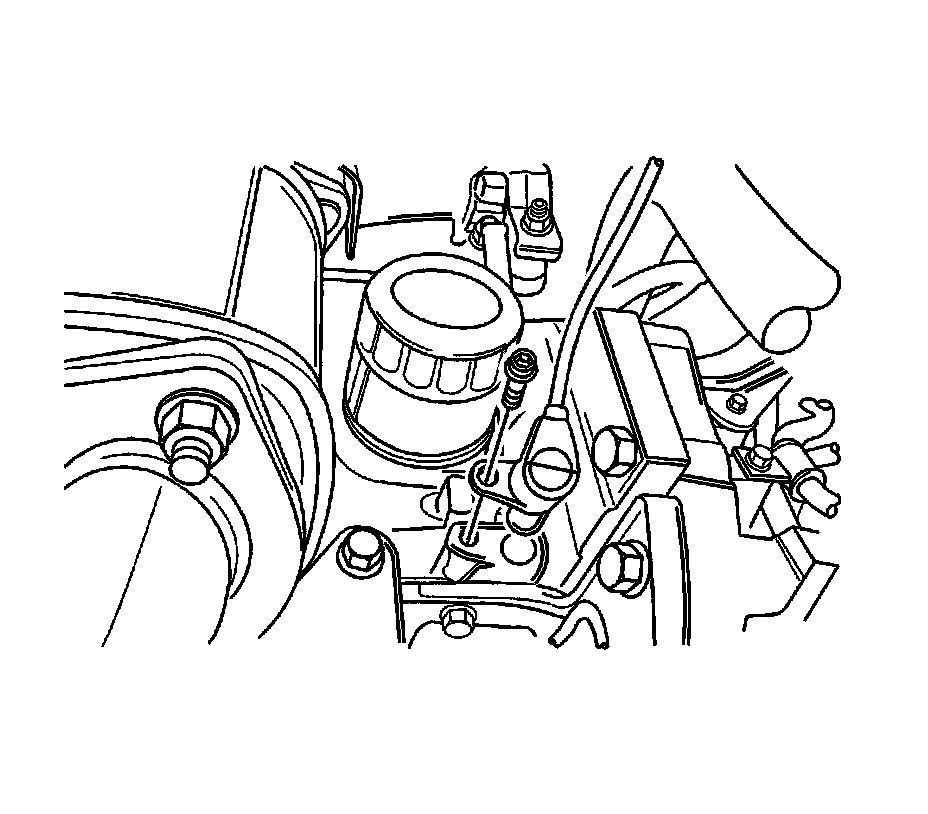

3. Remove the CKP sensor bolt.
4. Remove the CKP sensor.

INSTALLATION PROCEDURE




1. Install the CKP sensor with the bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the CKP sensor bolt to 6.5 N.m (58 lb in).




2. Connect the CKP sensor electrical connector.
3. Connect the negative battery cable.
