Removal Procedure

Remove control valve body cover. Refer to CONTROL VALVE BODY COVER REPLACEMENT .

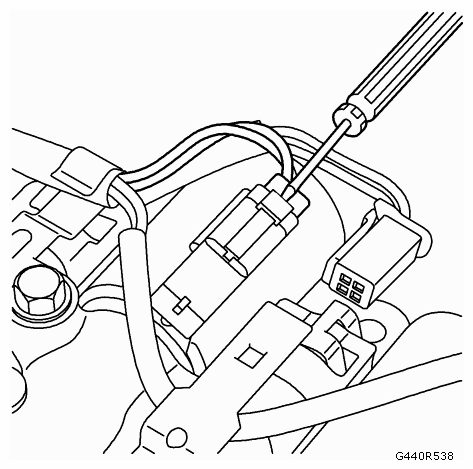

Fig 1: Removing Wiring Harness For Solenoid Valves
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Detach the wiring harness for the solenoid valves. (The illustration shows how to use a screwdriver for detaching the different connectors.)

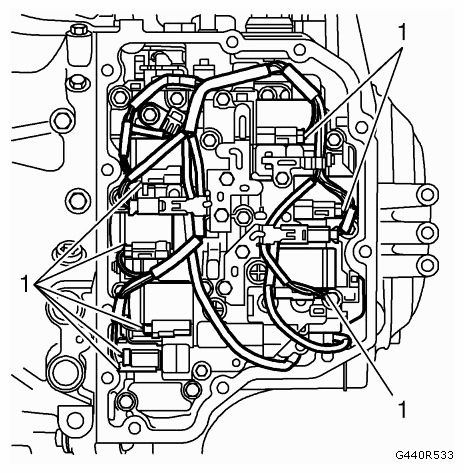

Fig 2: Identifying Connectors From Solenoid Valves
Courtesy of SAAB-SCANIA OF AMERICA, INC.
1. 2.1. Detach 8 connectors from the solenoid valves (1).
2. 2.2. Unplug the 2 connectors from the engine speed sensors (2).

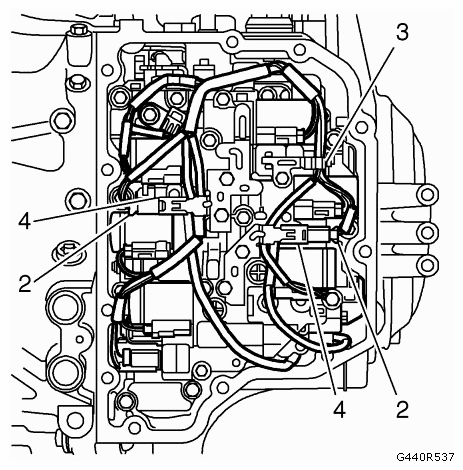

  Fig 3: Identifying Solenoid Valves, Engine Speed Sensors, Mountings And Retaining Clip
  Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. 2.3. Remove the wiring harness from the 2 retaining clips (3).
Unplug the engine speed sensor connectors.
Detach the connectors from the two mountings (4).
Remove the temperature sensor.

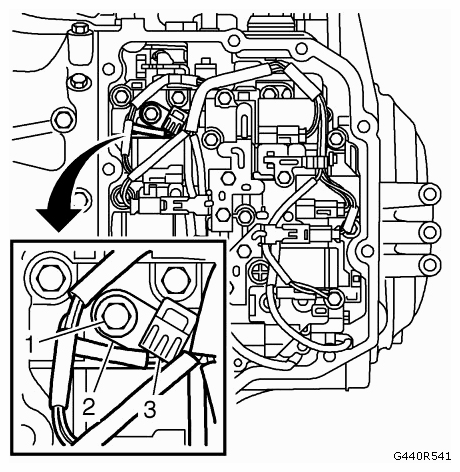

Fig 4: Identifying Attaching Plate, Temperature Sensor And Screw
Courtesy of SAAB-SCANIA OF AMERICA, INC.
1. 4.1. Remove the screw (1).
2. 4.2. Lift away the attaching plate (2).
3. 4.3. Remove the temperature sensor (3).
Move the wiring harness for the solenoid valves and the wiring harness for the engine speed sensors aside.
Remove the cover (1).

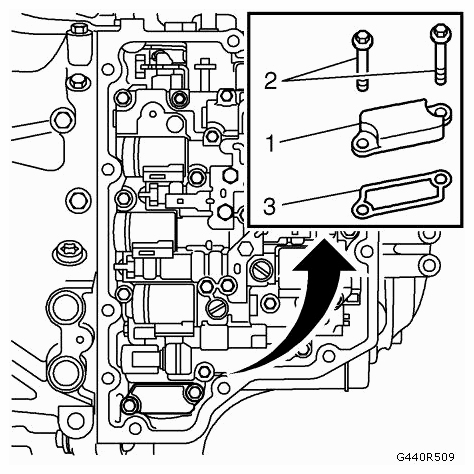

Fig 5: Identifying Gasket, Cover And Screws
Courtesy of SAAB-SCANIA OF AMERICA, INC.
1. 6.1. Remove the screws (2).
2. 6.2. Remove the gasket (3).
Remove the valve housing.

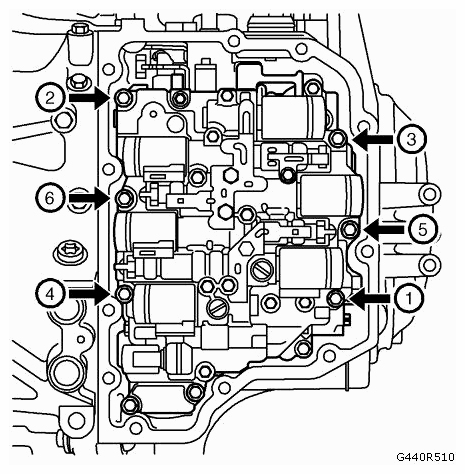

Fig 6: Valve Housing Fasteners Tightening Sequence
Courtesy of SAAB-SCANIA OF AMERICA, INC.
1. 7.1. Undo the fasteners in the specified order.
2. 7.2. Remove the fasteners.
Lower the car to the floor.

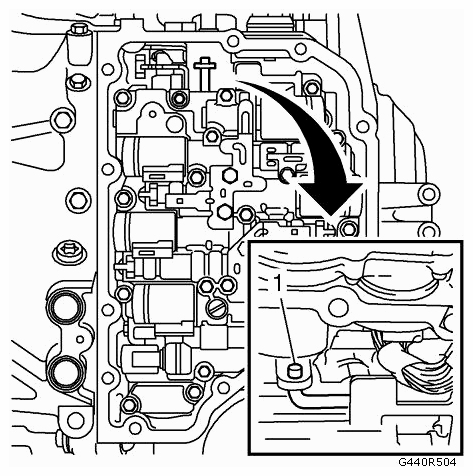

Unhook the clutch rod (1).

Fig 7: Identifying Clutch Rod
Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: The ducts are filled with oil.

Carefully lift the valve housing upwards.
