Engine Sight Bracket Replacement

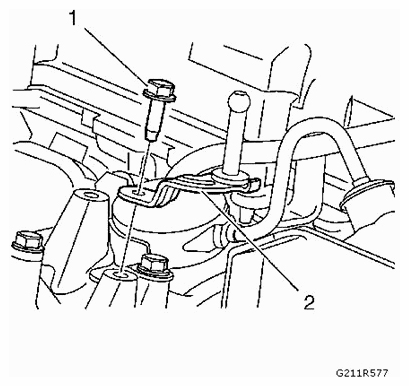

Fig 1: Removing Engine Sight Bracket
G09406953Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT .
1 Engine Sight Shield Bracket Fastener
Refer to FASTENER CAUTION .
Tighten
10 Nm (89 lb in)
2 Engine Sight Shield Bracket
