Supply Circuit Tests Ground & Control Unit Power

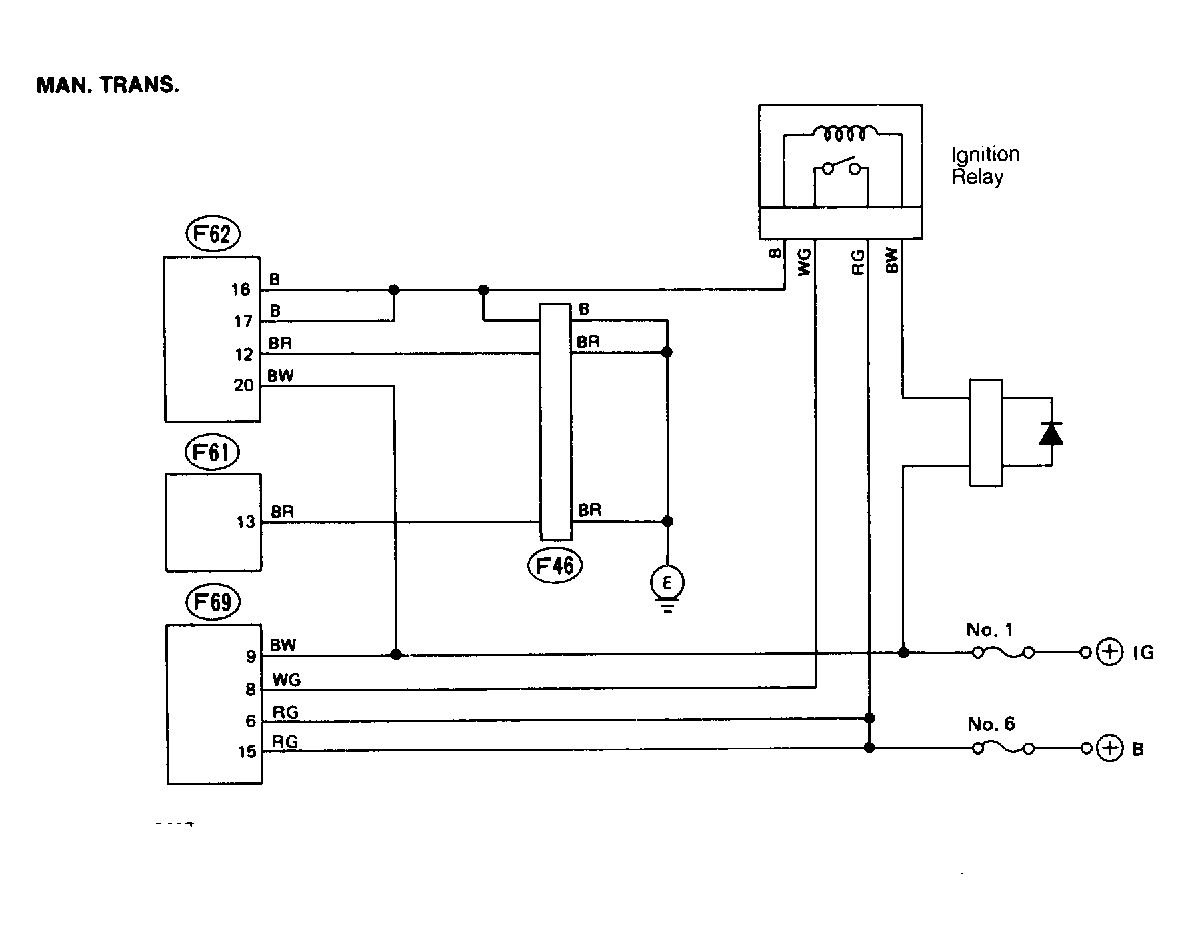

Fig 1: Justy Ground & Control Unit Power Supply Test (Man. Trans.)
Courtesy of SUBARU OF AMERICA, INC.

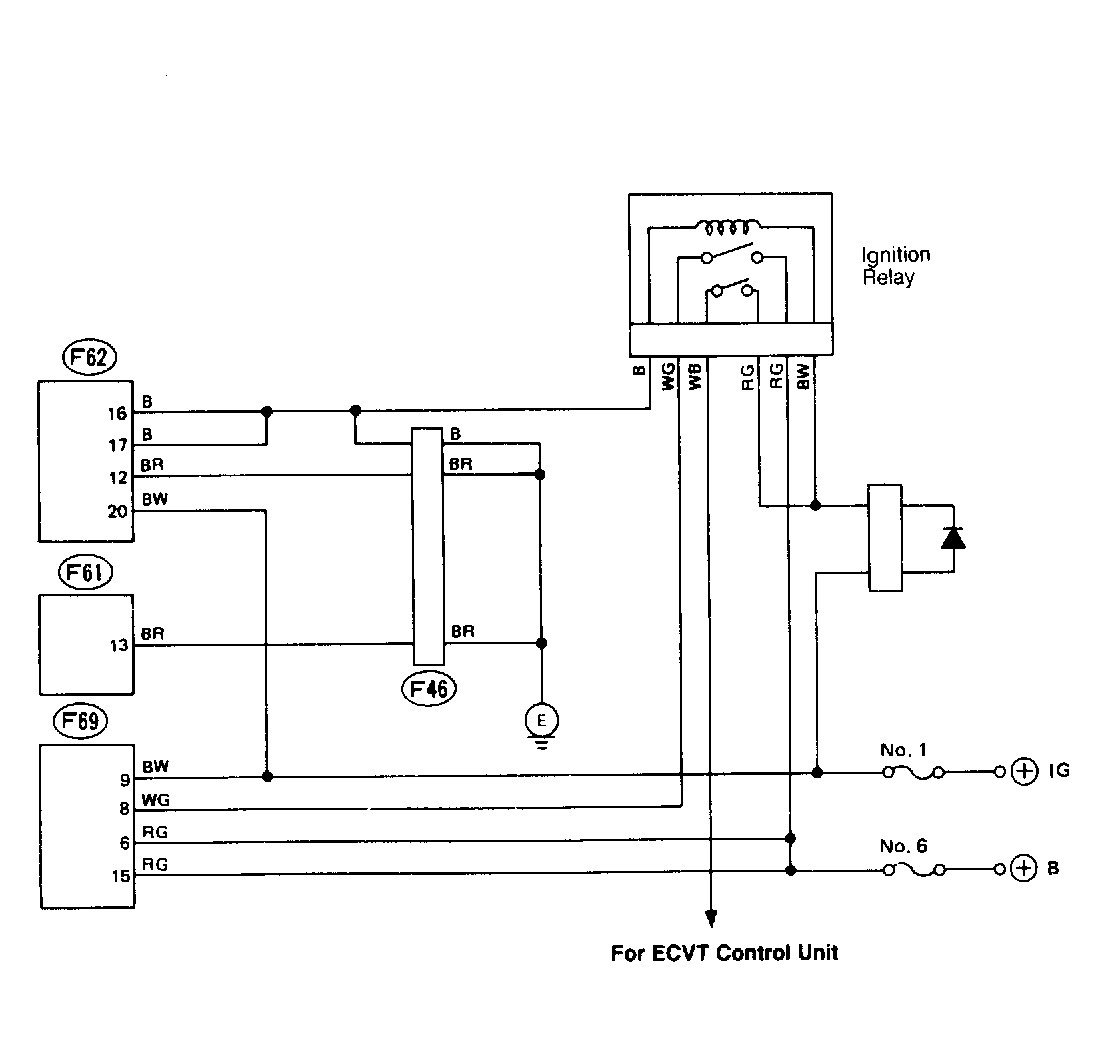

Fig 2: Justy Ground & Control Unit Power Supply Test (ECVT Trans.)
Courtesy of SUBARU OF AMERICA, INC.

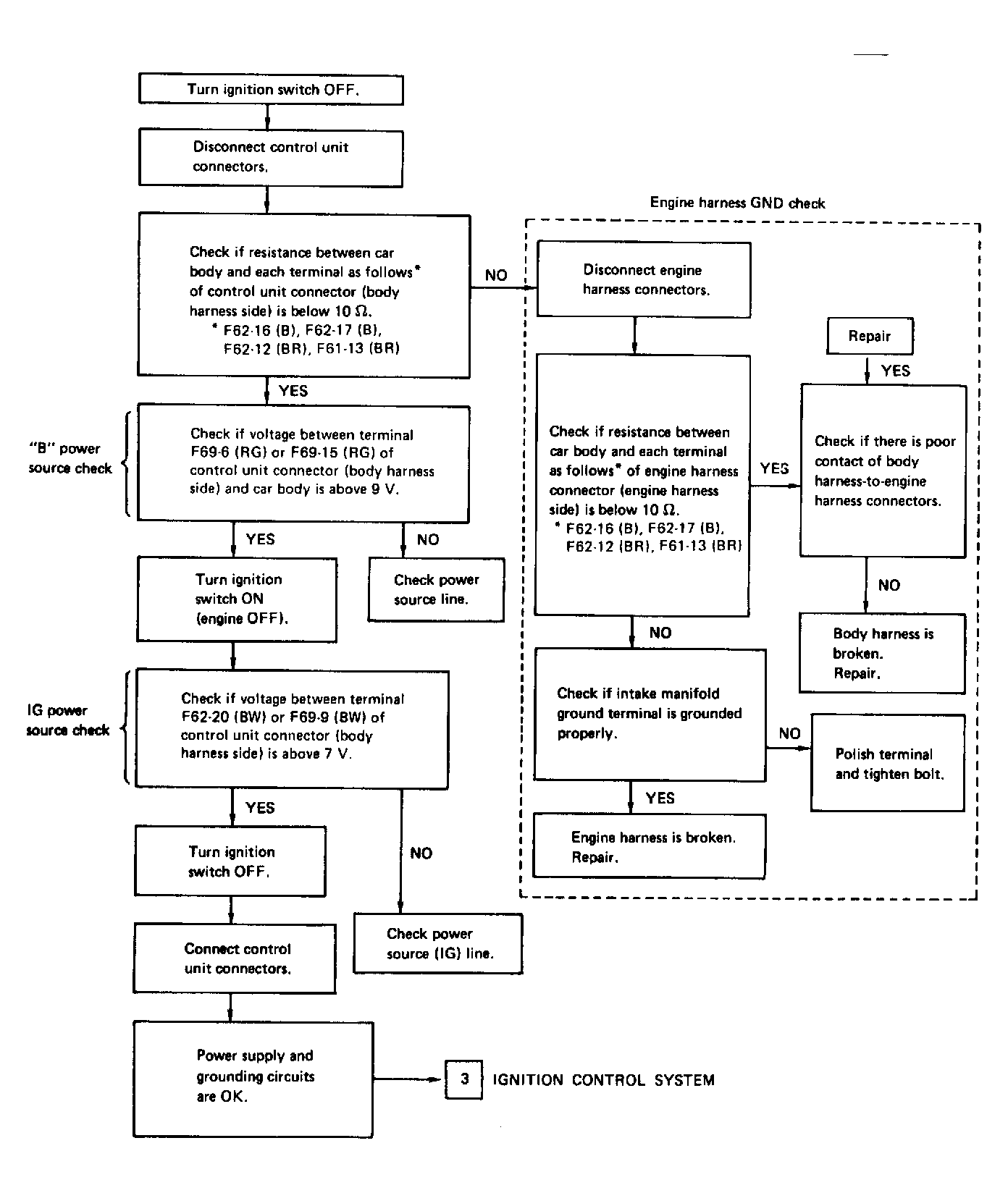

Fig 3: Justy Ground & Control Unit Power Supply Test (Flow Chart)
Courtesy of SUBARU OF AMERICA, INC.
