Code 23 - Pressure Sensor

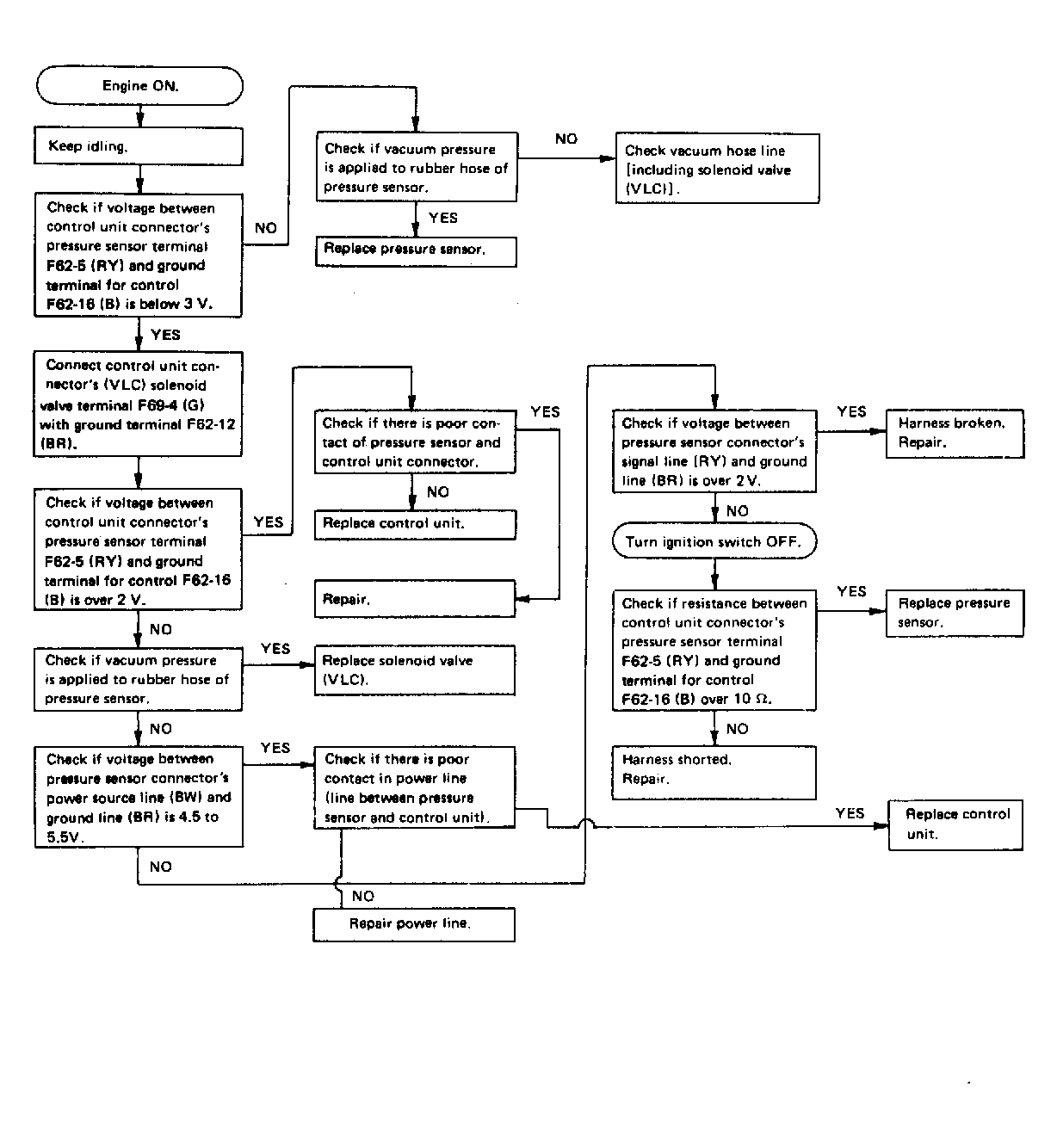

Fig 1: Flow Chart - Trouble Code 23: Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Wiring Schematic - Trouble Code 23: Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
