Transmission Control Systems: Locations
ELECTRICAL COMPONENTS LOCATION

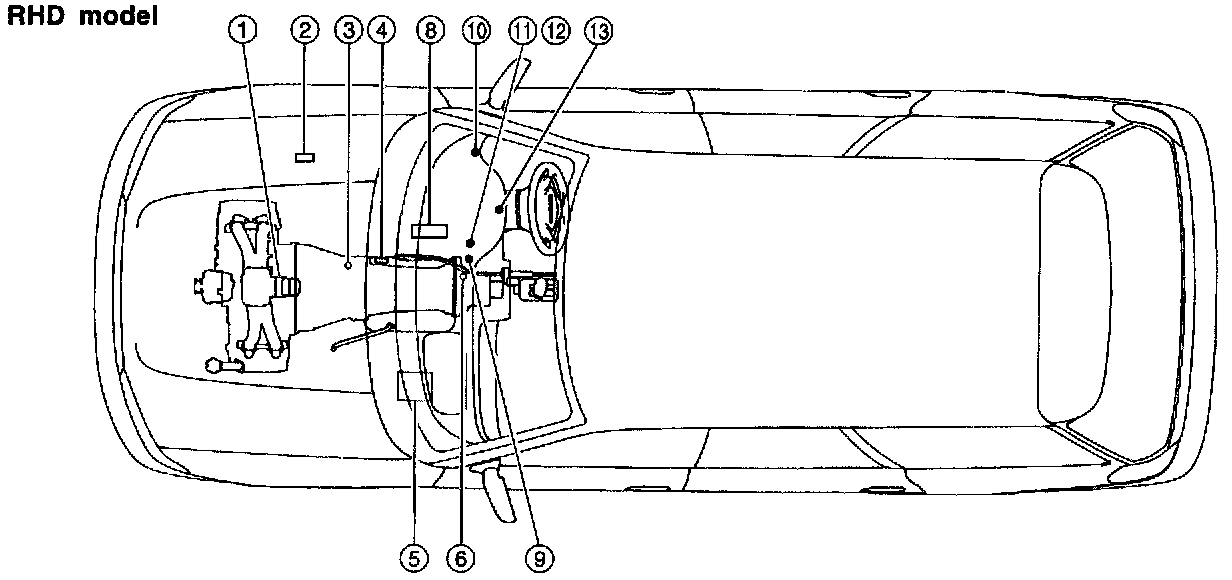

RIGHT HAND DRIVE

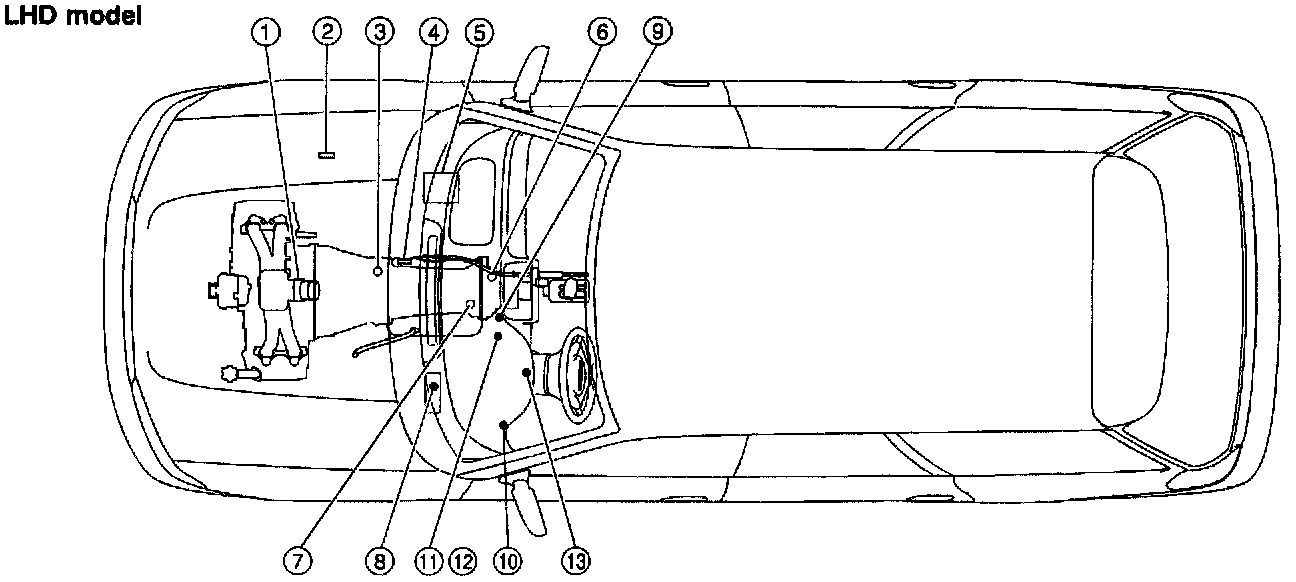

LEFT HAND DRIVE
COMPONENTS:
(1) Throttle Position Sensor
(2) Dropping Resistor
(3) Vehicle Speed Sensor 2
(4) Inhibitor Switch
(5) Engine Control Module
(6) Vehicle Speed Sensor 1 (AWD)
(7) Vehicle Speed Sensor 1 (FWD)
(8) Transmission Control Module
(9) Data Link Connector (for Subaru Select Monitor Only)
(10) Data Link Connector (for Subaru Select Monitor or OBD II General Scan Tool)
(11) Diagnosis Connector
(12) Diagnosis Terminal
(13) AT Oil Temperature Indicator and Diagnostic Light
