Communication For Initializing Impossible

DIAGNOSIS:
- Faulty harness connector

TROUBLE SYMPTOM:
- ABS warning light remains on.





WIRING DIAGRAM

10C1:

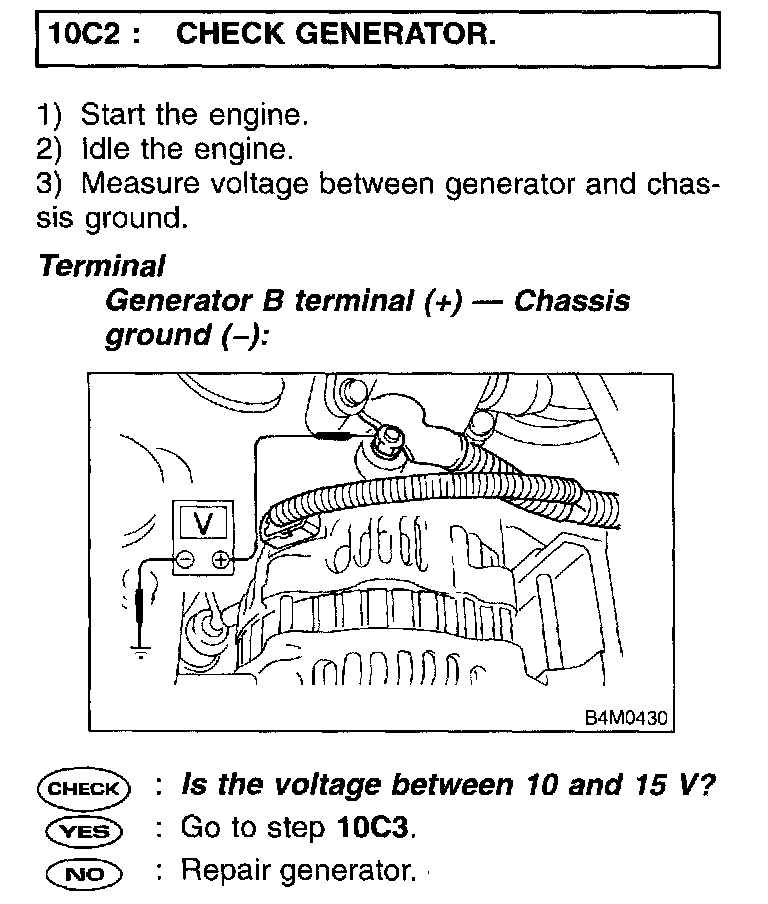

10C2:




10C3:




10C4:




10C5:




10C6:




10C7:

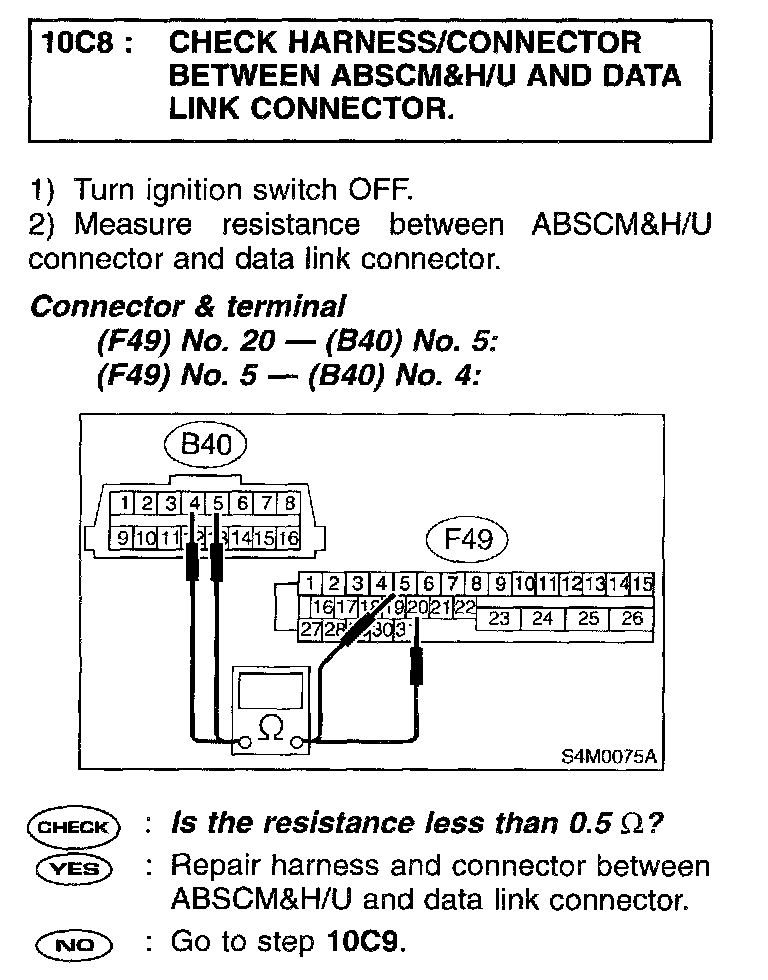

10C8:




10C9:
