Differential Assembly
REAR
DIFFERENTIAL ASSEMBLY

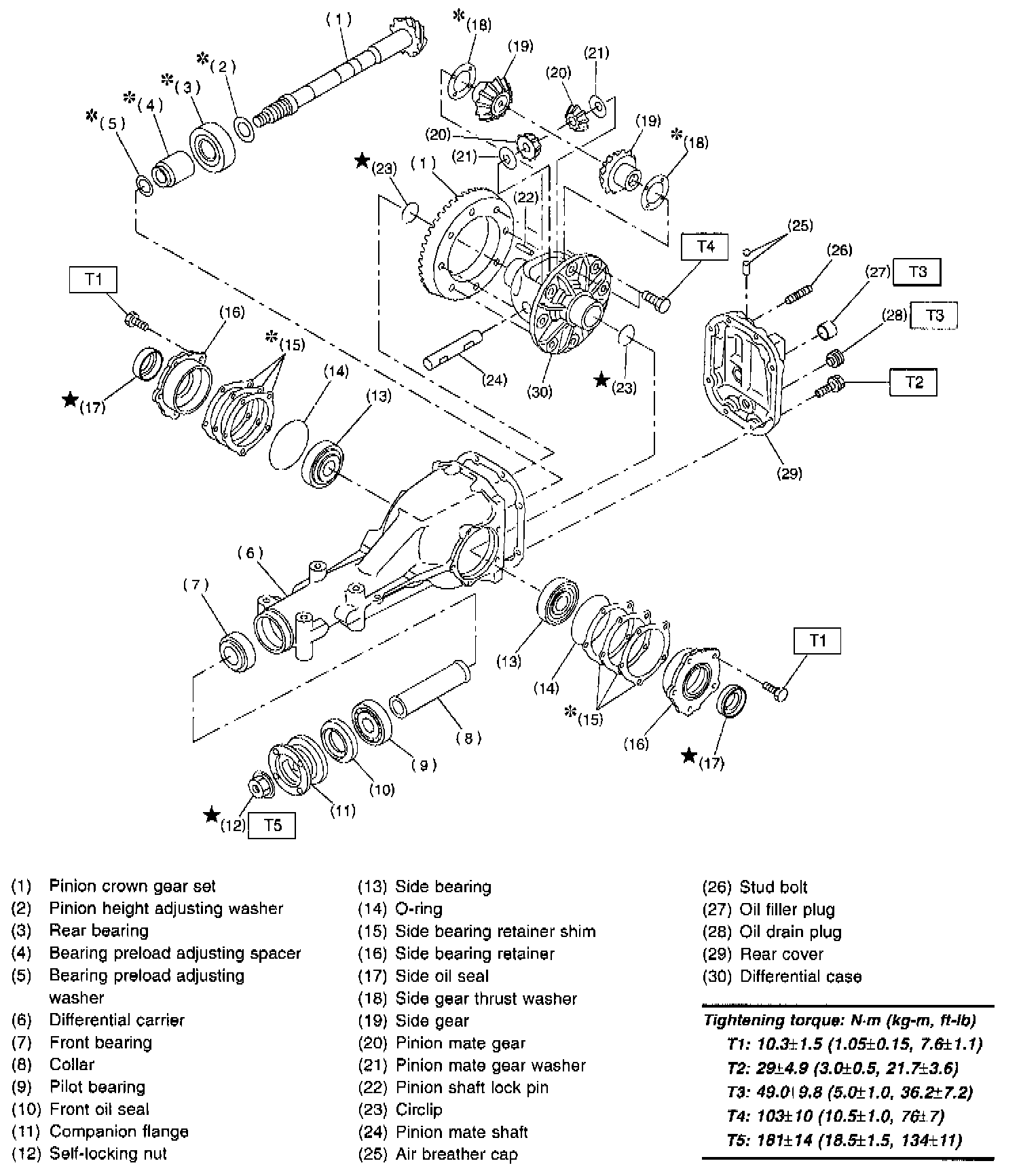

WITHOUT LSD

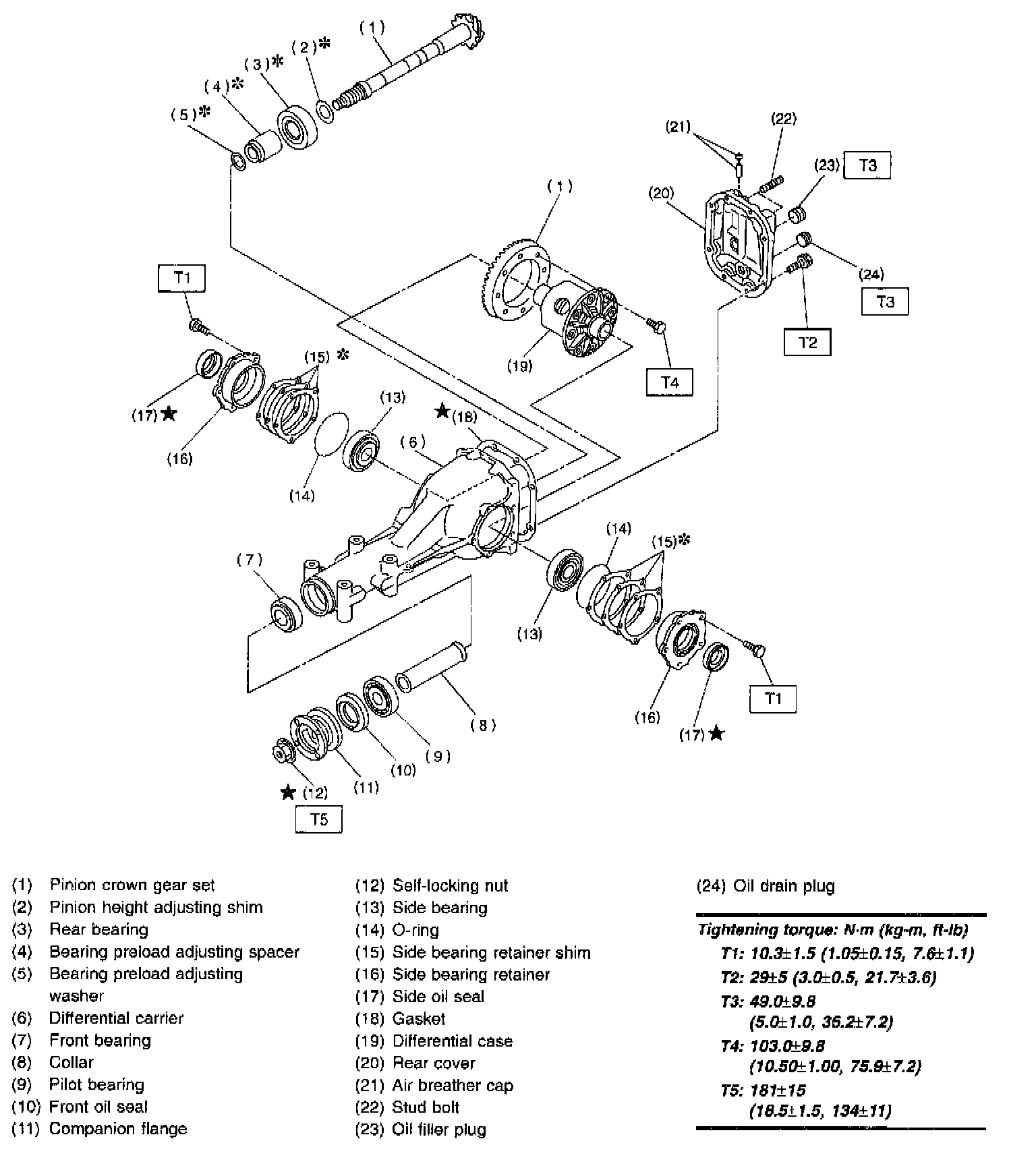

WITH LSD

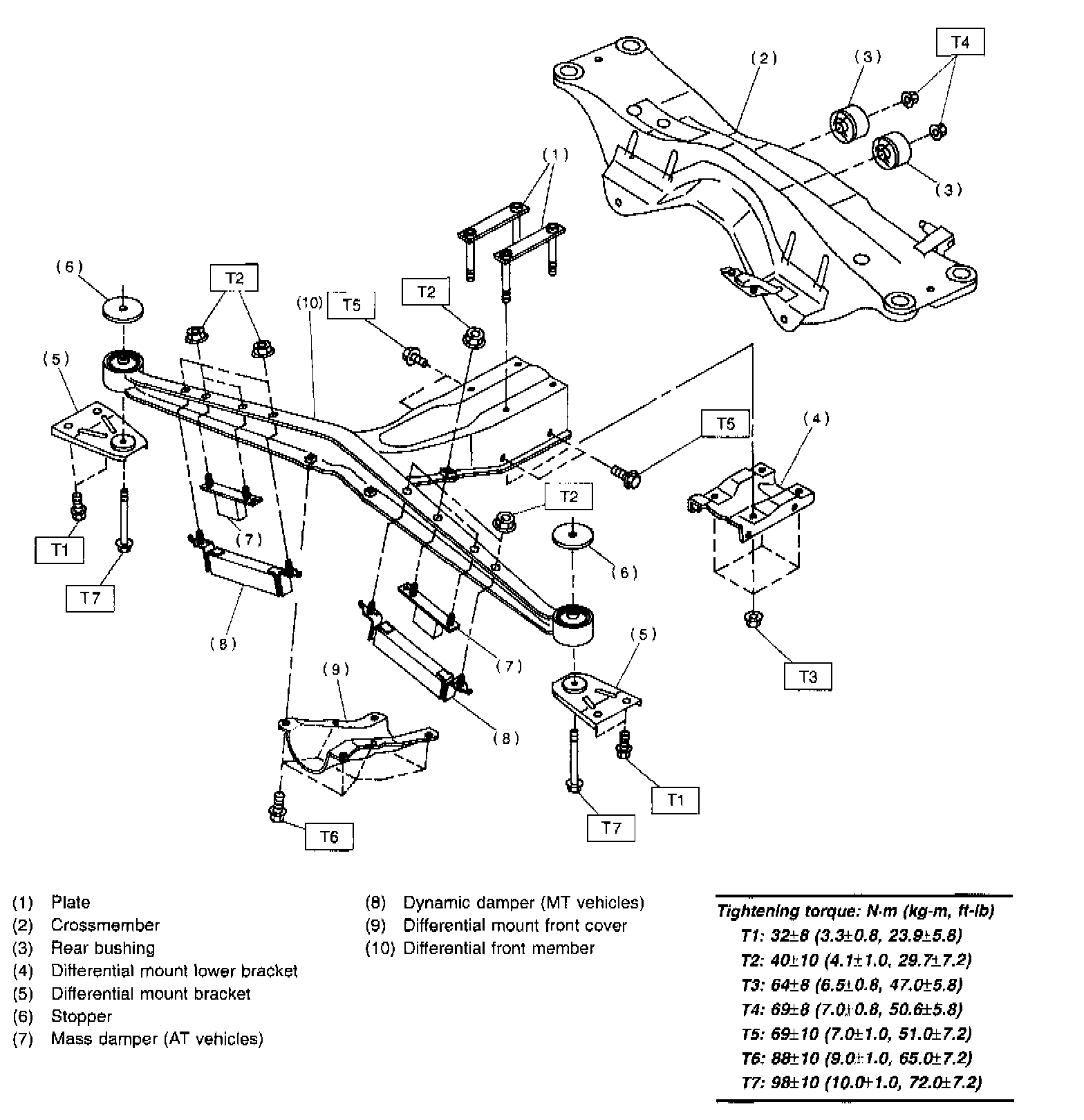

REAR DIFFERENTIAL MOUNTING SYSTEM
