System Diagram

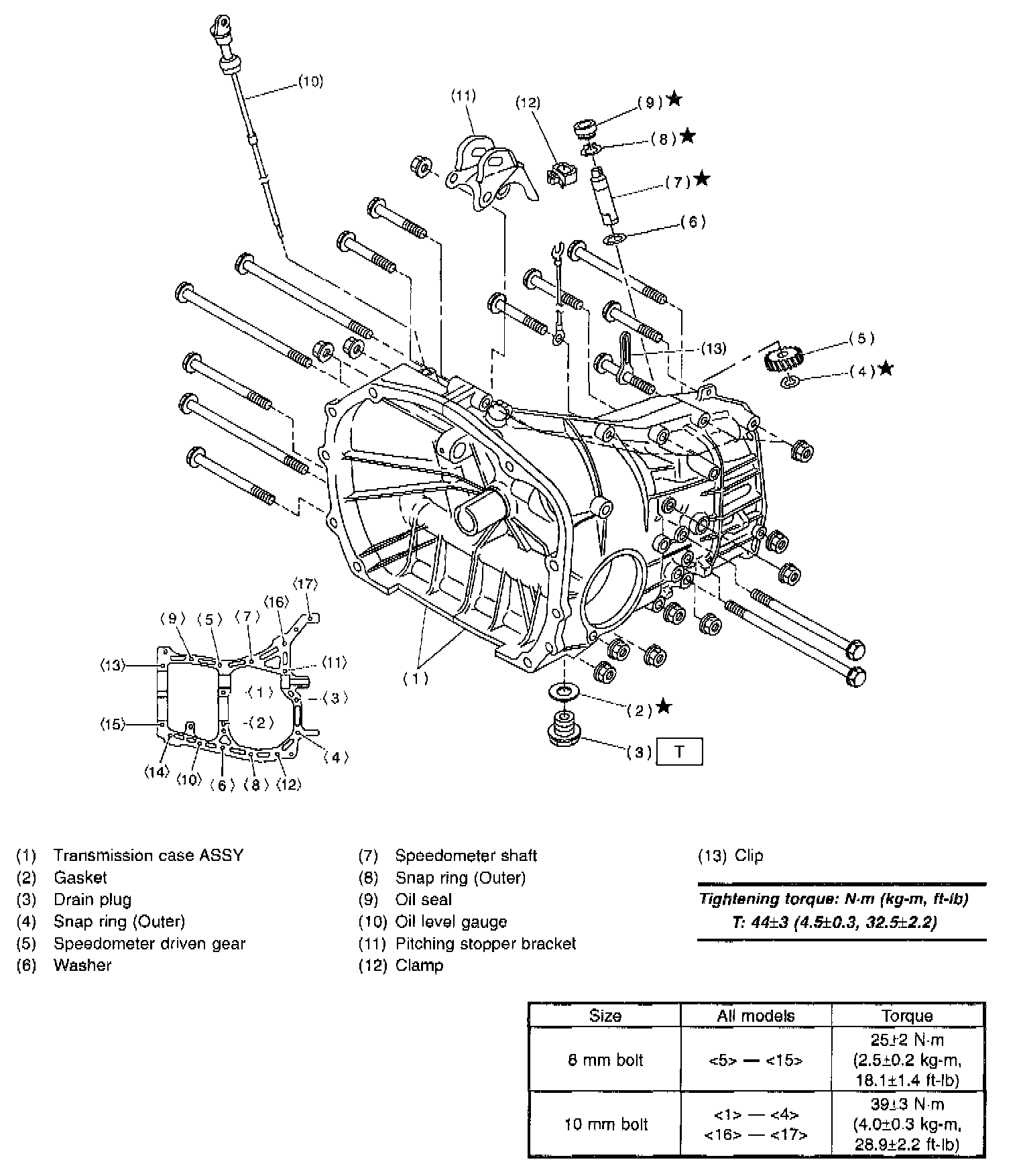

1. Transmission Case

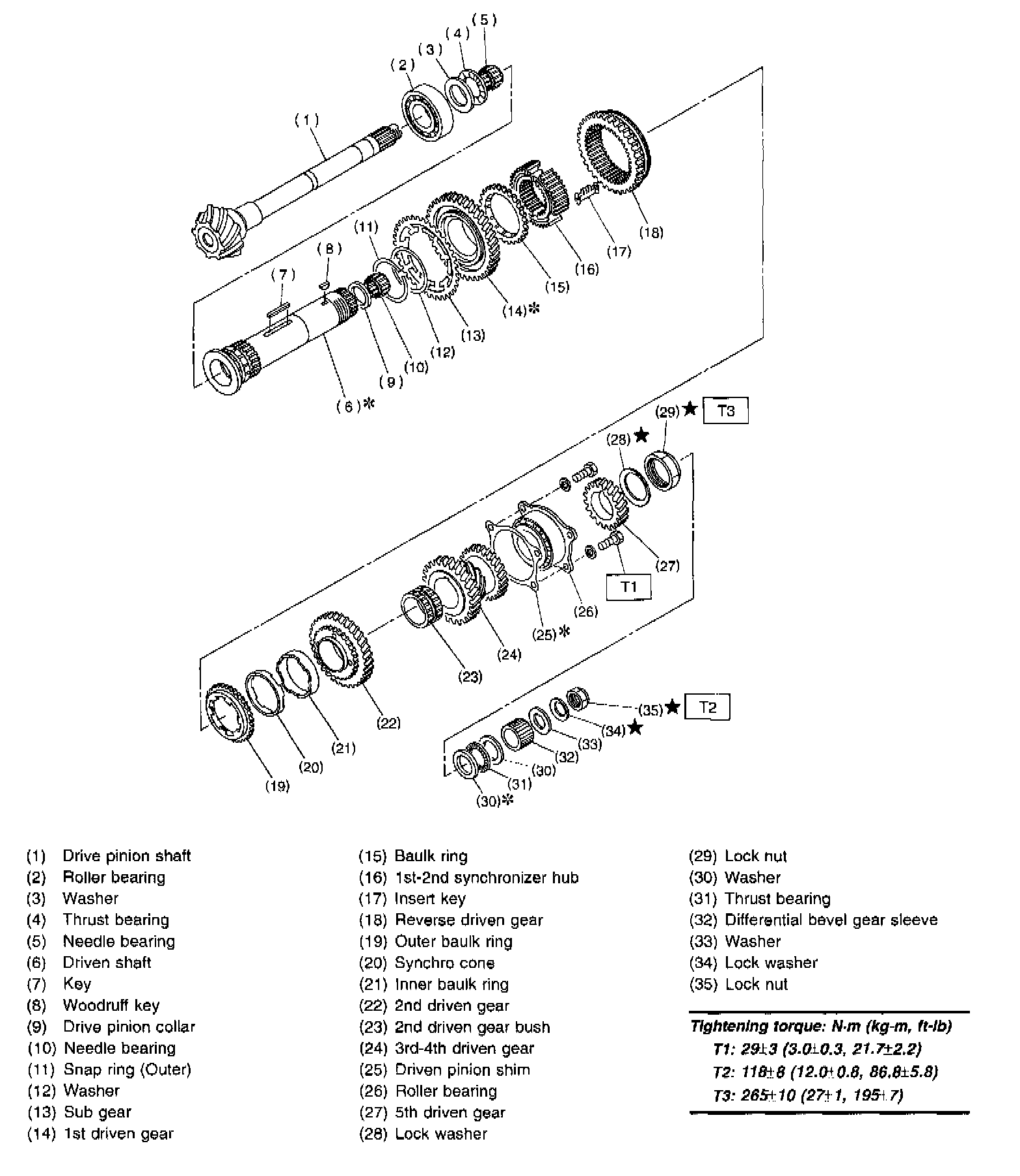

2. Drive Pinion Assembly

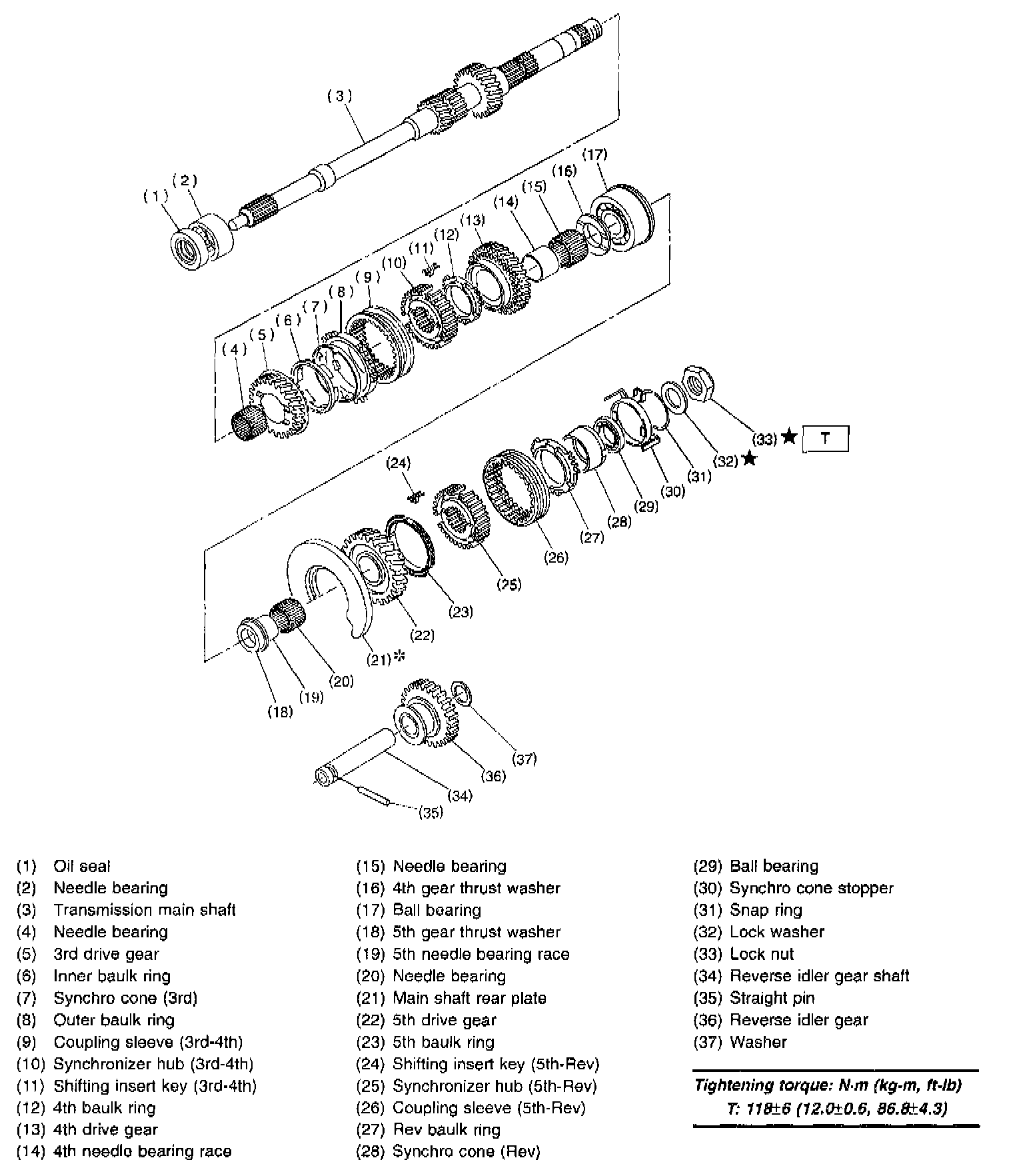

3. Main Shaft Assembly

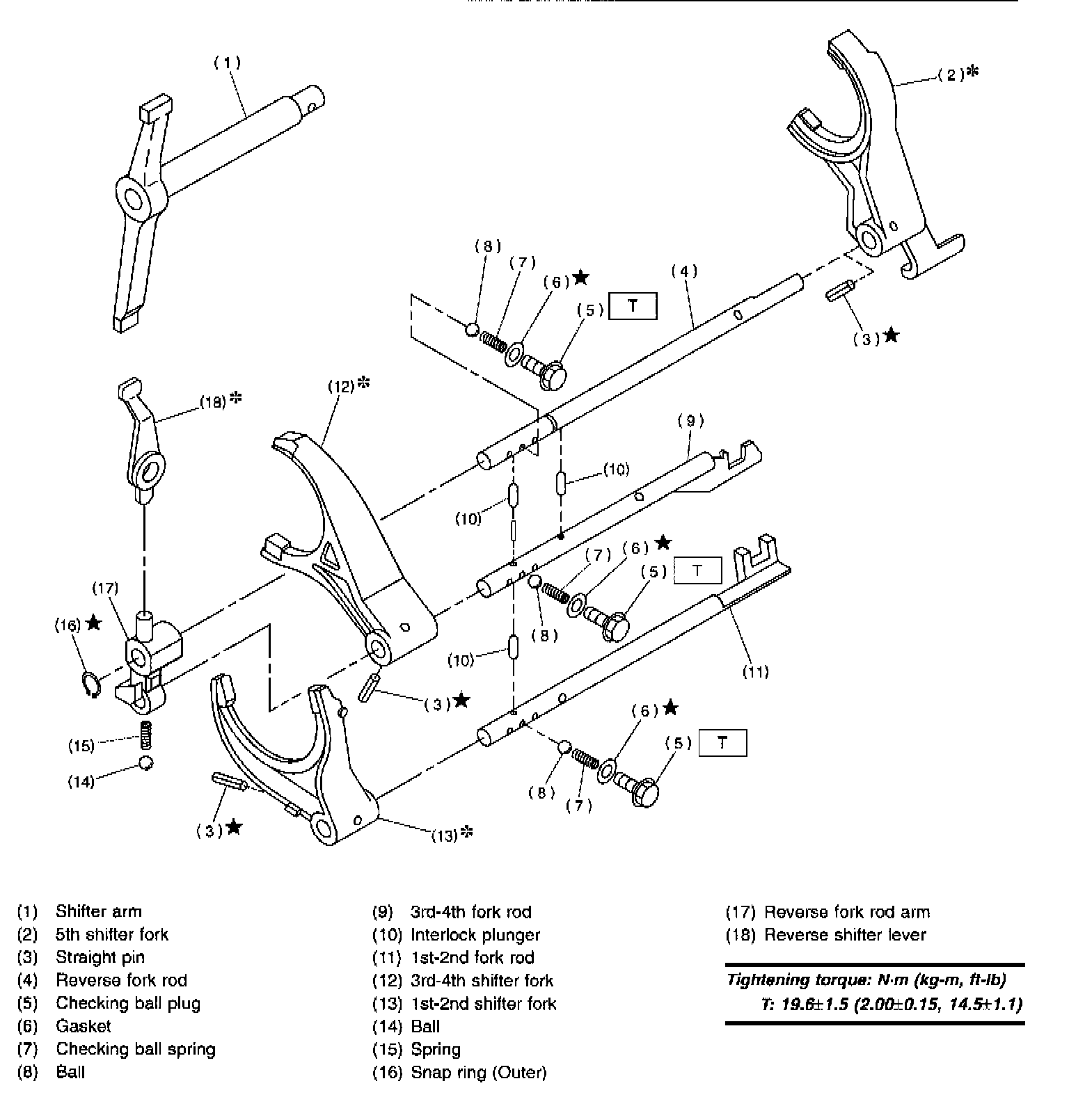

4. Shifter Fork and Shifter Rod

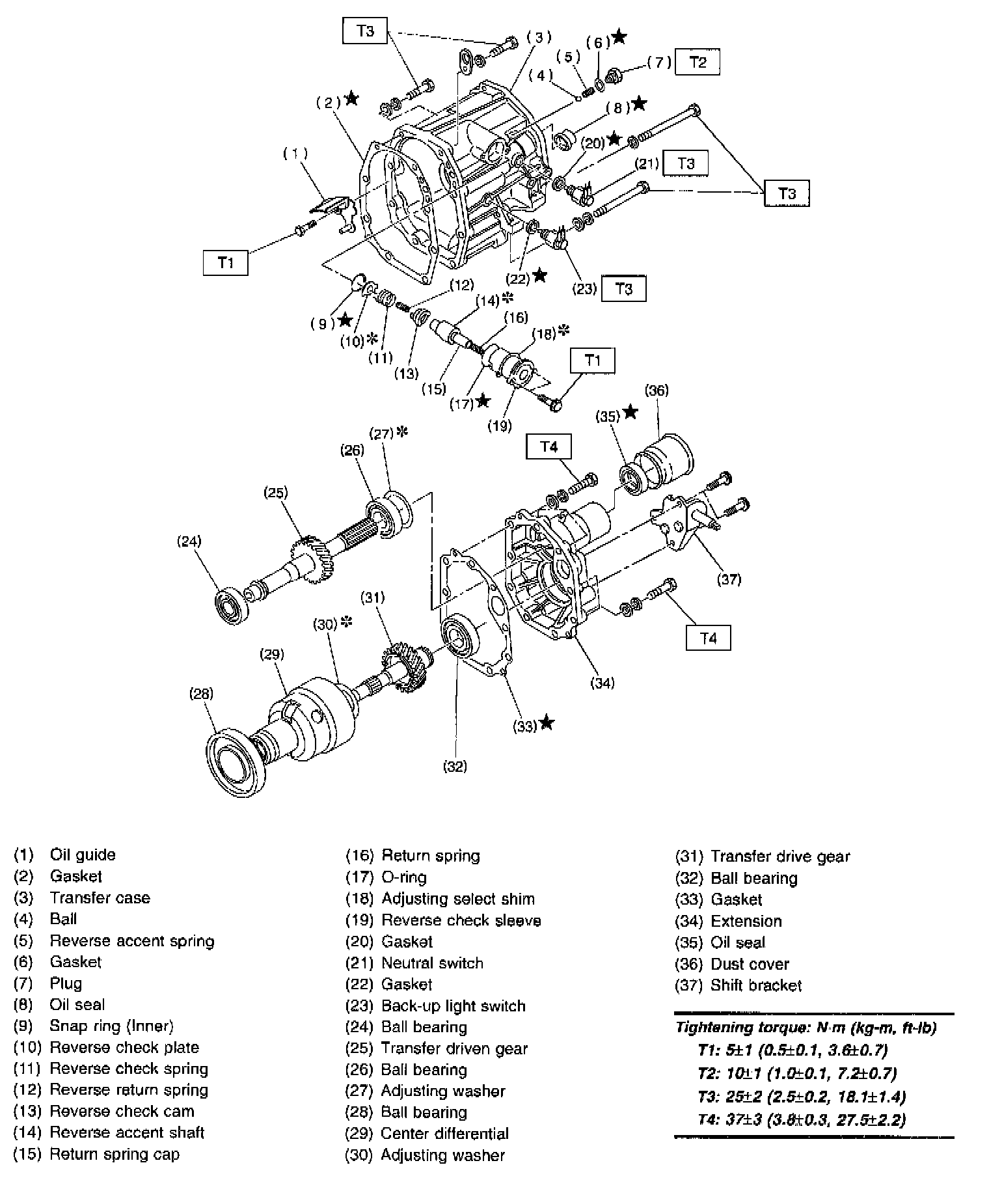

5. Transfer Case and Extension

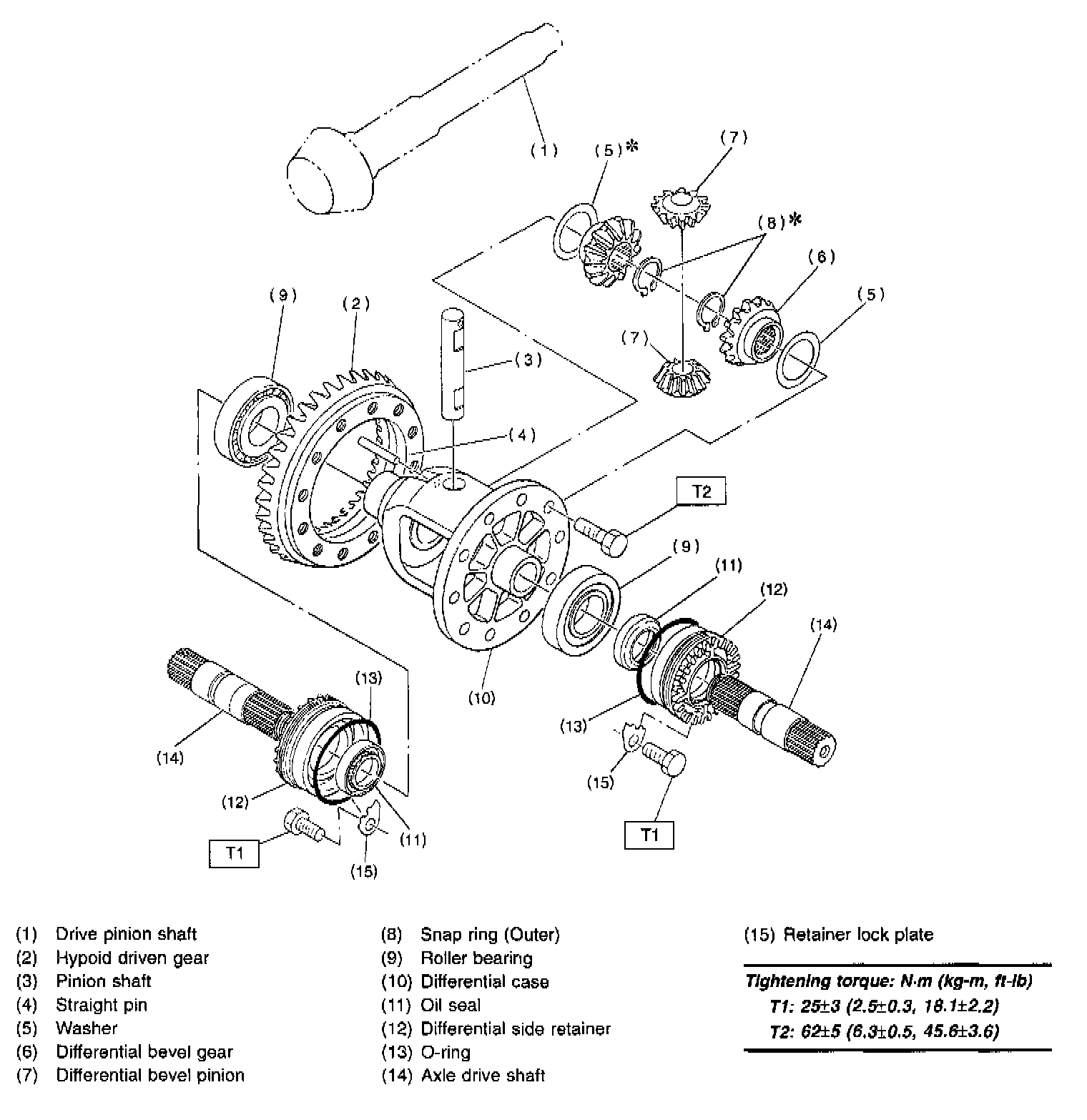

6. Front Differential
