TCM Pinout Values

TCM I/O Signal - Connector View:

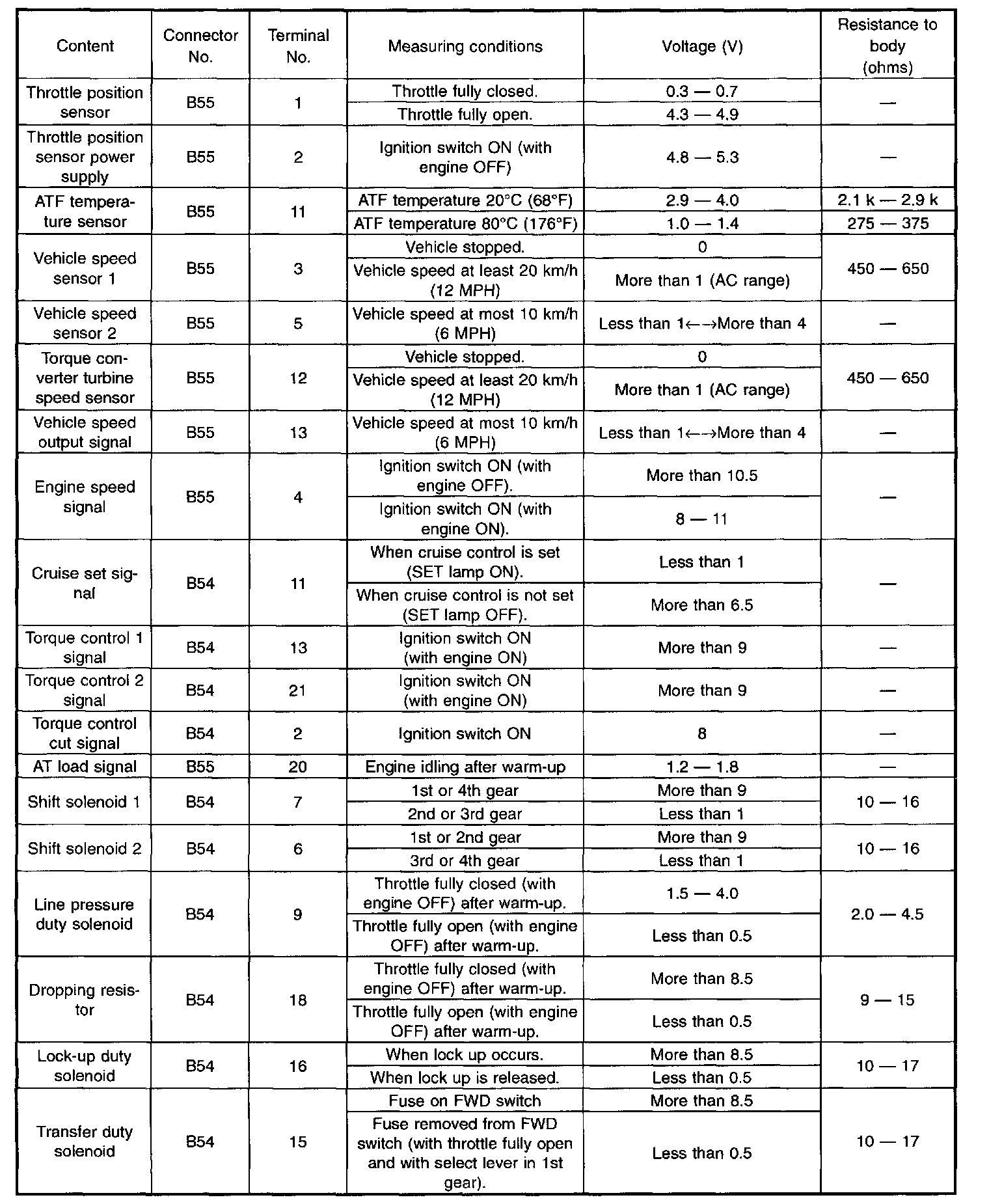

TCM I/O Signal - Connector Pinouts, Part 1 Of 3:

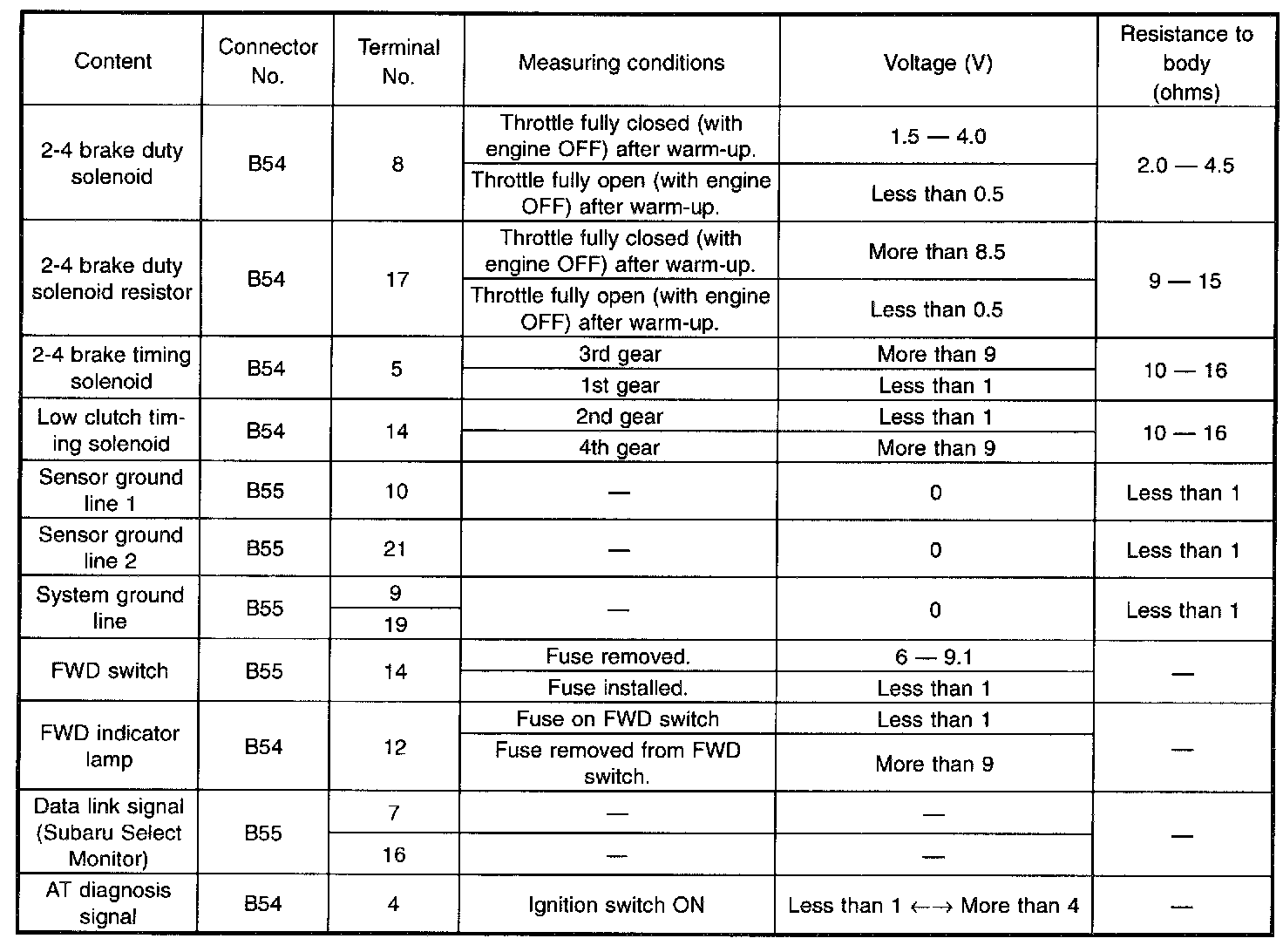

TCM I/O Signal - Connector Pinouts, Part 2 Of 3:

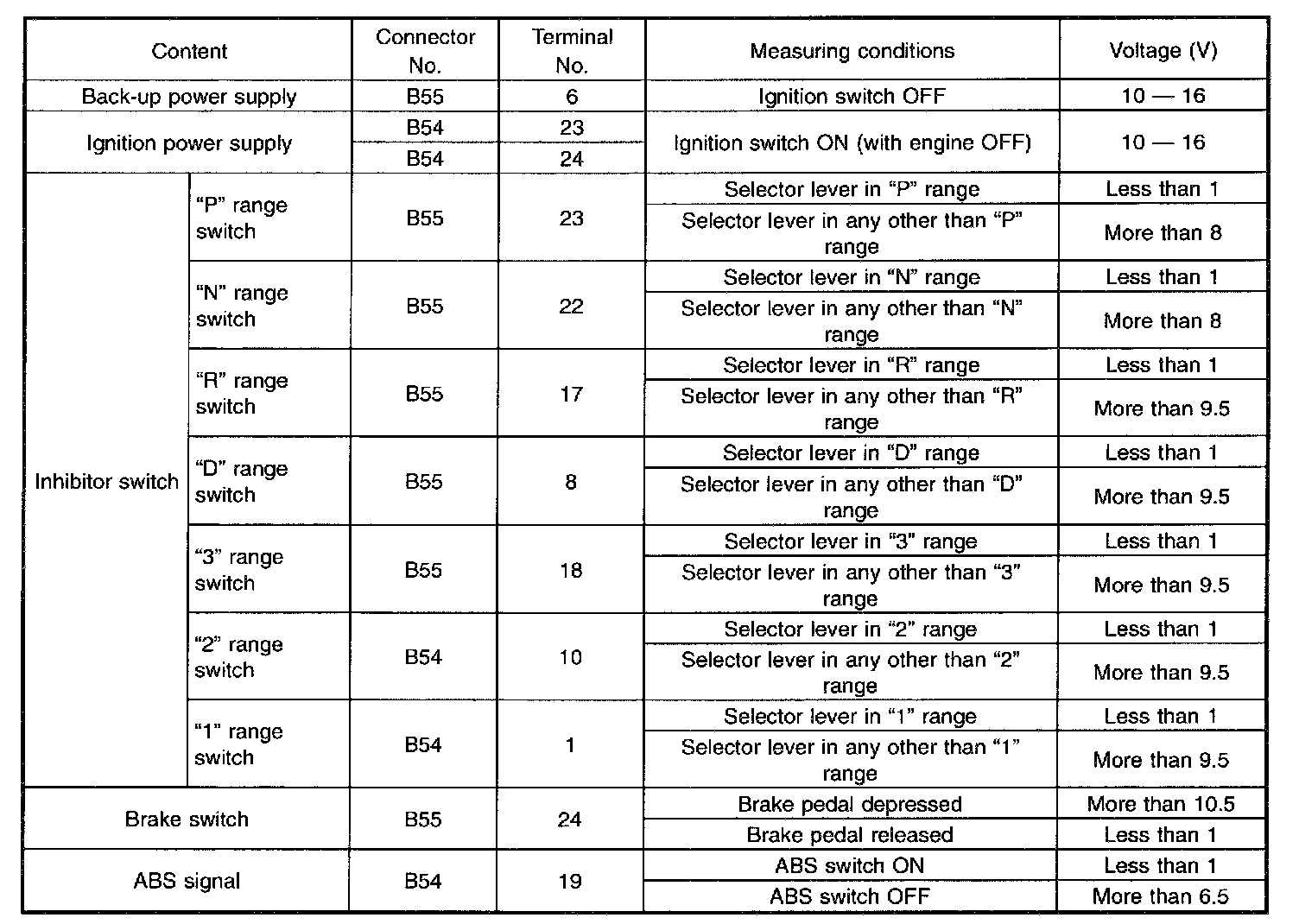

TCM I/O Signal - Connector Pinouts, Part 3 Of 3:






NOTE: Check with ignition switch ON.
