Electronic Brake Control Module: Testing and Inspection

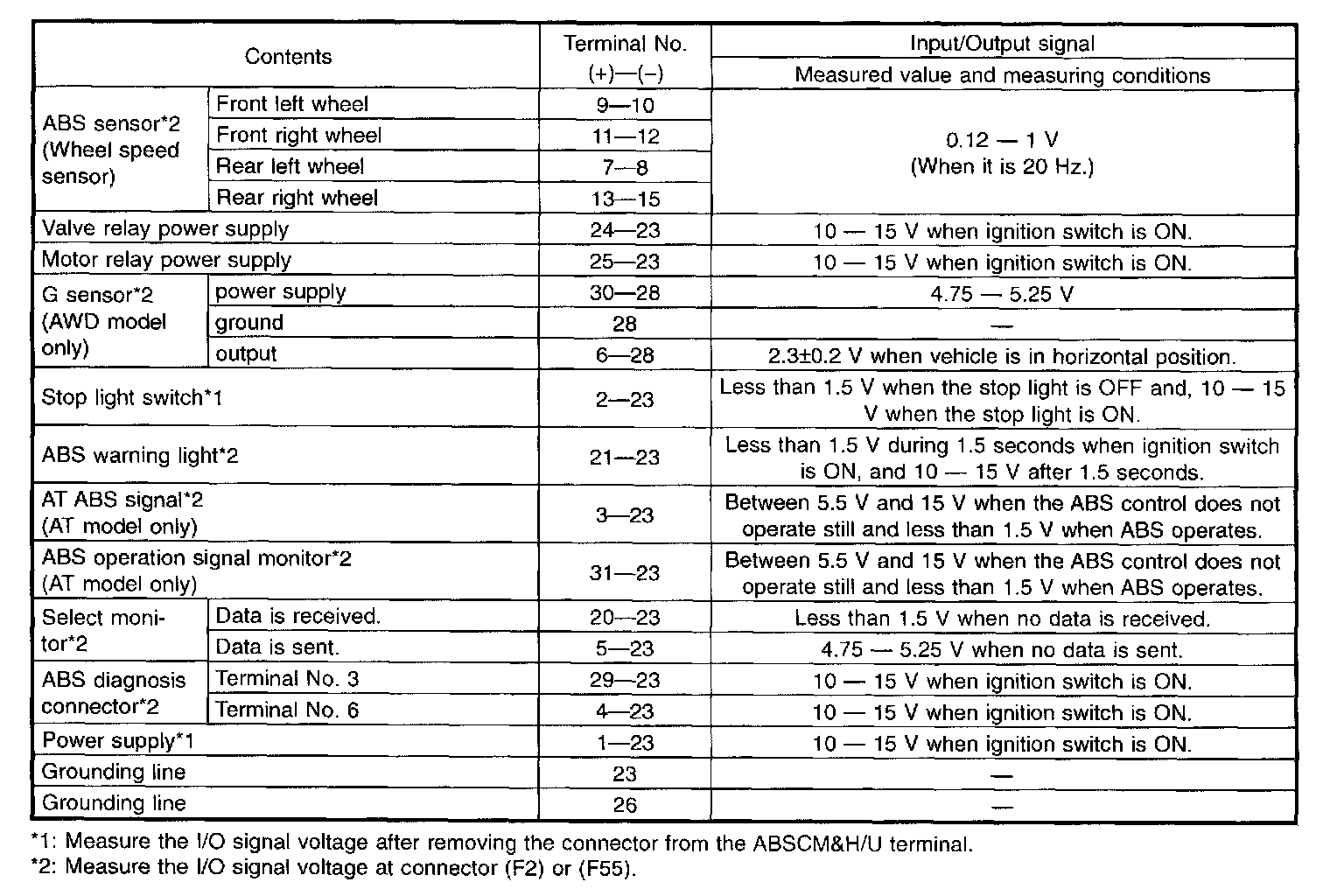

I/O SIGNAL VOLTAGE












NOTE:
- The terminal numbers in the ABS control module and hydraulic control unit connector are as shown in the figure.
- When the connector is removed from the ABSCM&H/U, the connector switch closes the circuit between terminal No. 21 and No. 23. The ABS warning light illuminates.
