Cruise Control Module: Testing and Inspection

Control Module I/O Signal - Connector View:

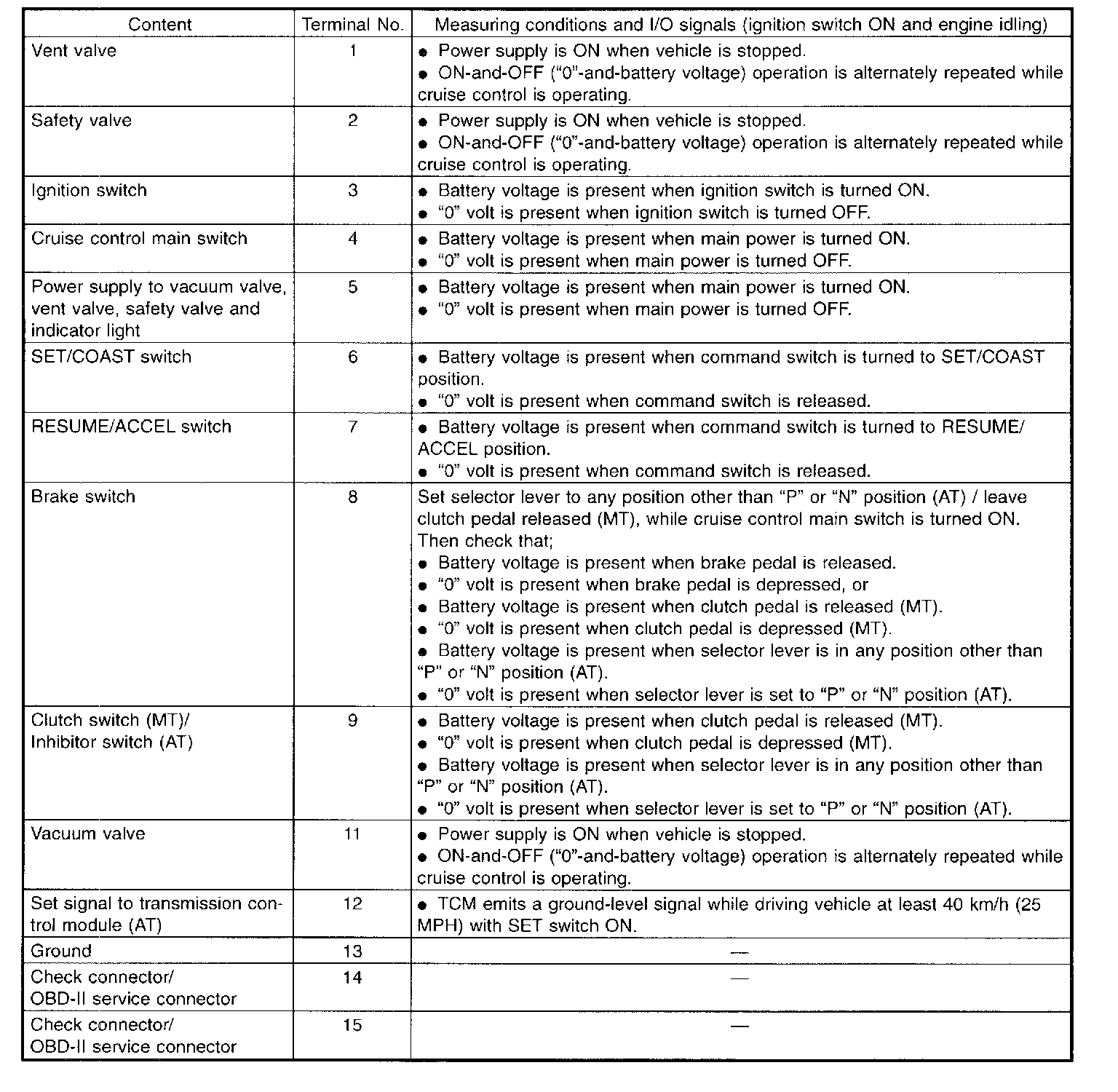

Control Module I/O Signal - Pinout Values ( Part 1 Of 2 ):



Control Module I/O Signal - Pinout Values ( Part 2 Of 2 ):
