Fluid Diagrams

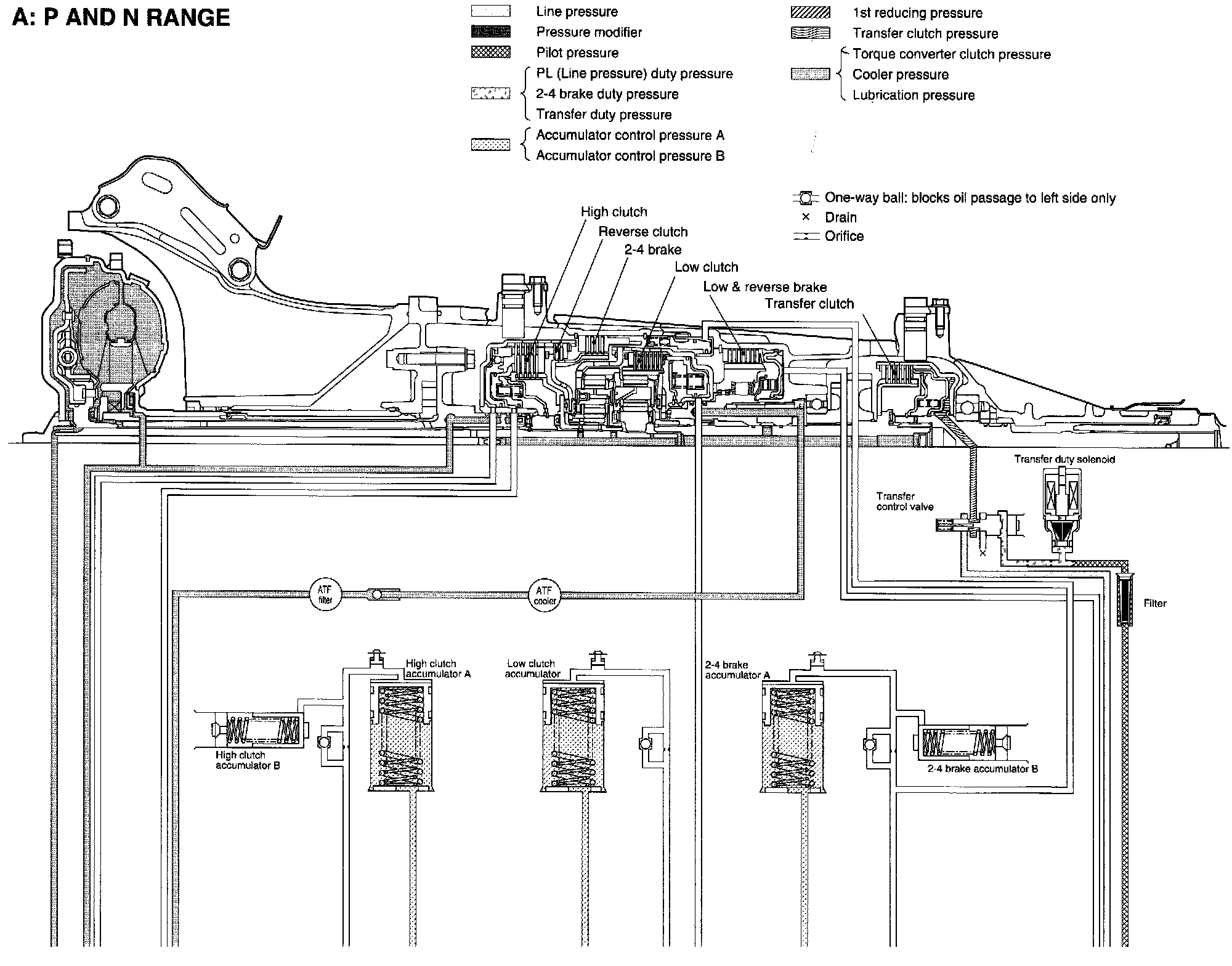

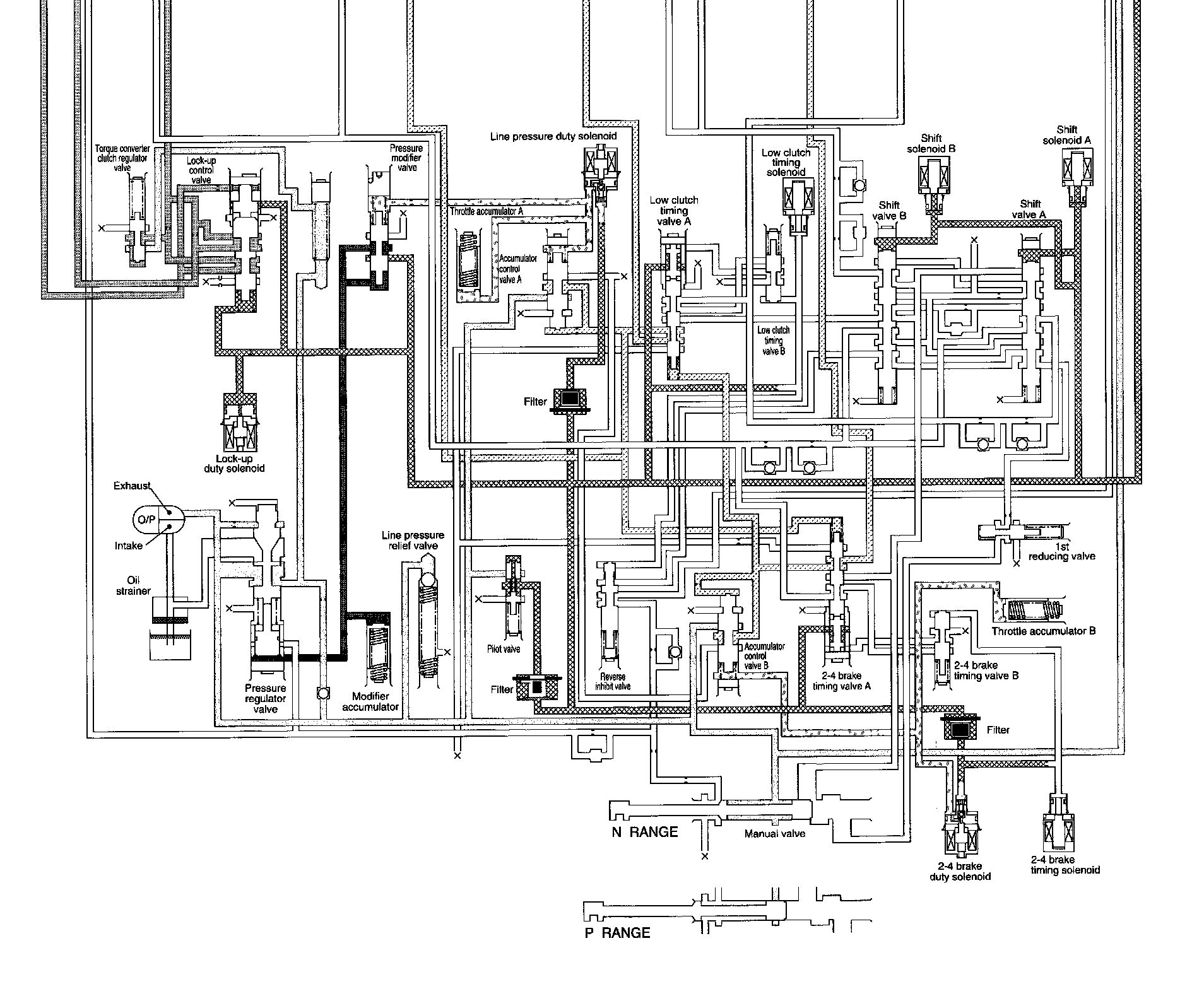

A: P And N Range
B.: R Range
C: Fourth Speed Of D Range (Lock Up Off)
D: Fourth Speed Of D Range (Lock Up On)
E. Third Speed Of D And 3 Range

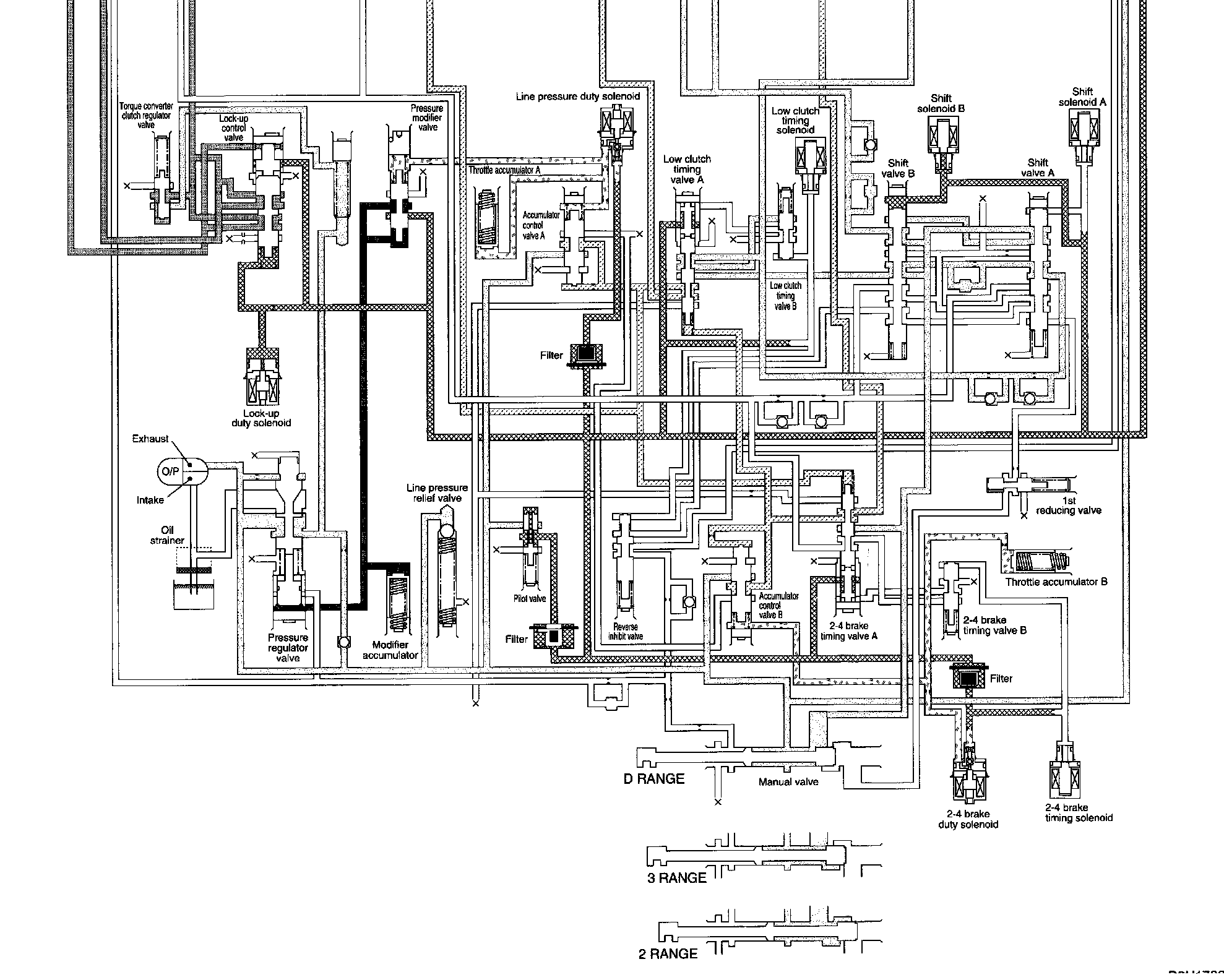

F.: Second Speed Of D, 3 And 2 Range
G: First Speed Of D, 3 And 2 Range
H: First Speed Of 1 Range
