Legacy Outback Wagon F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transmission Case and Control Device
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

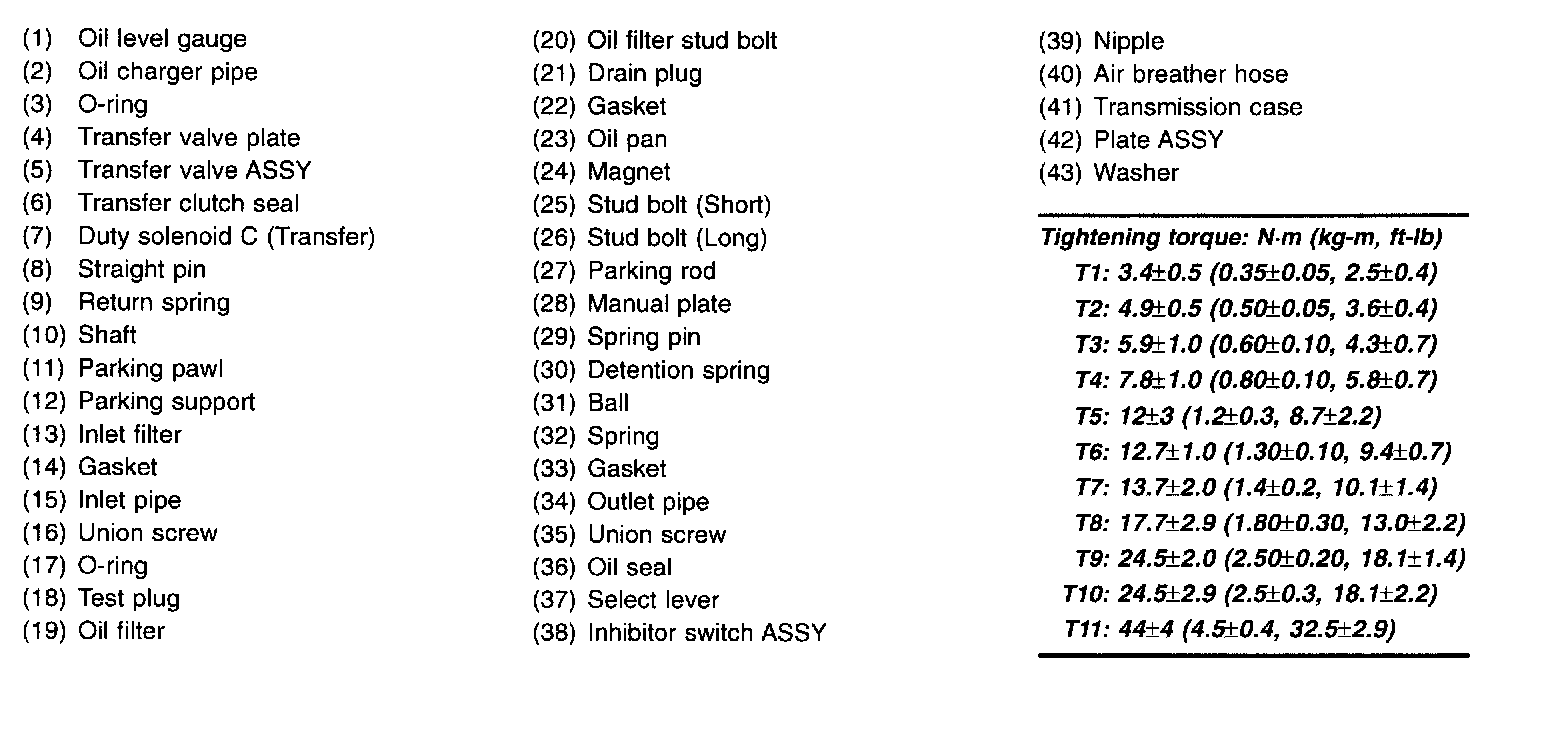

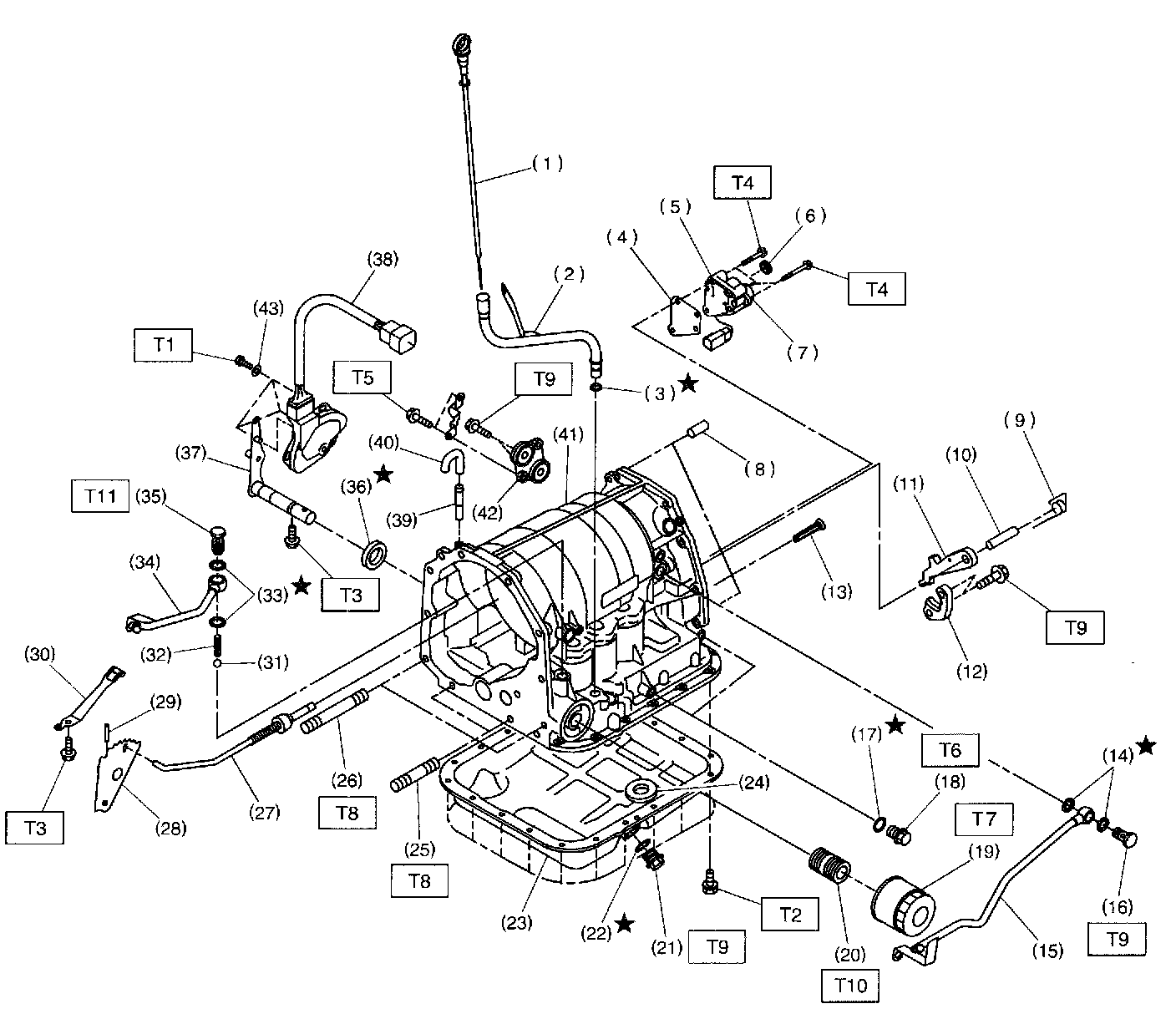

Transmission Case and Control Device
1 of 2
2 of 2
