General Diagnostics Table With Non-Conformity For Engine

A: GENERAL DIAGNOSTICS TABLE WITH NON-CONFORMITY SYMPTOM FOR ENGINE

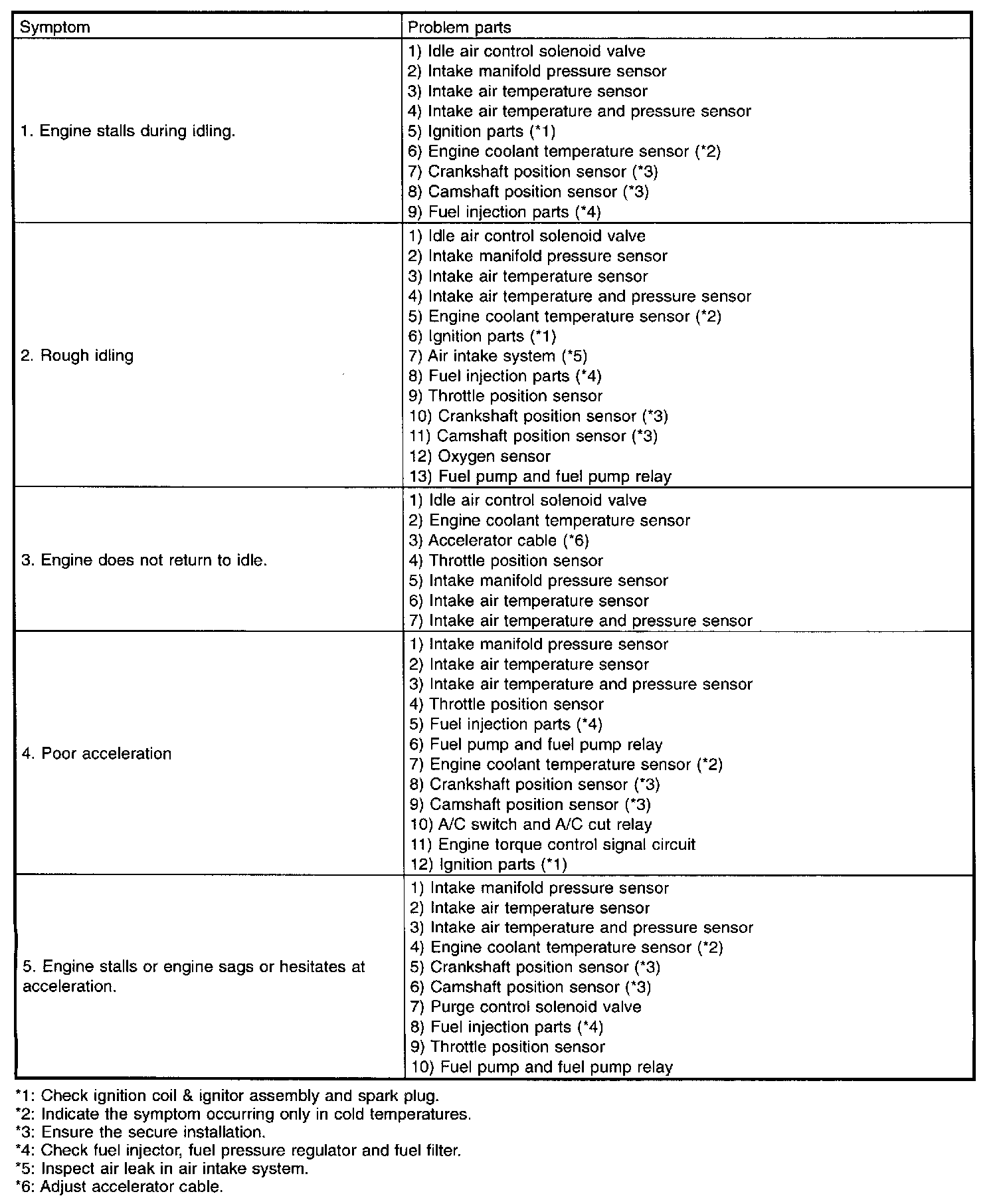

Part 1 Of 2:

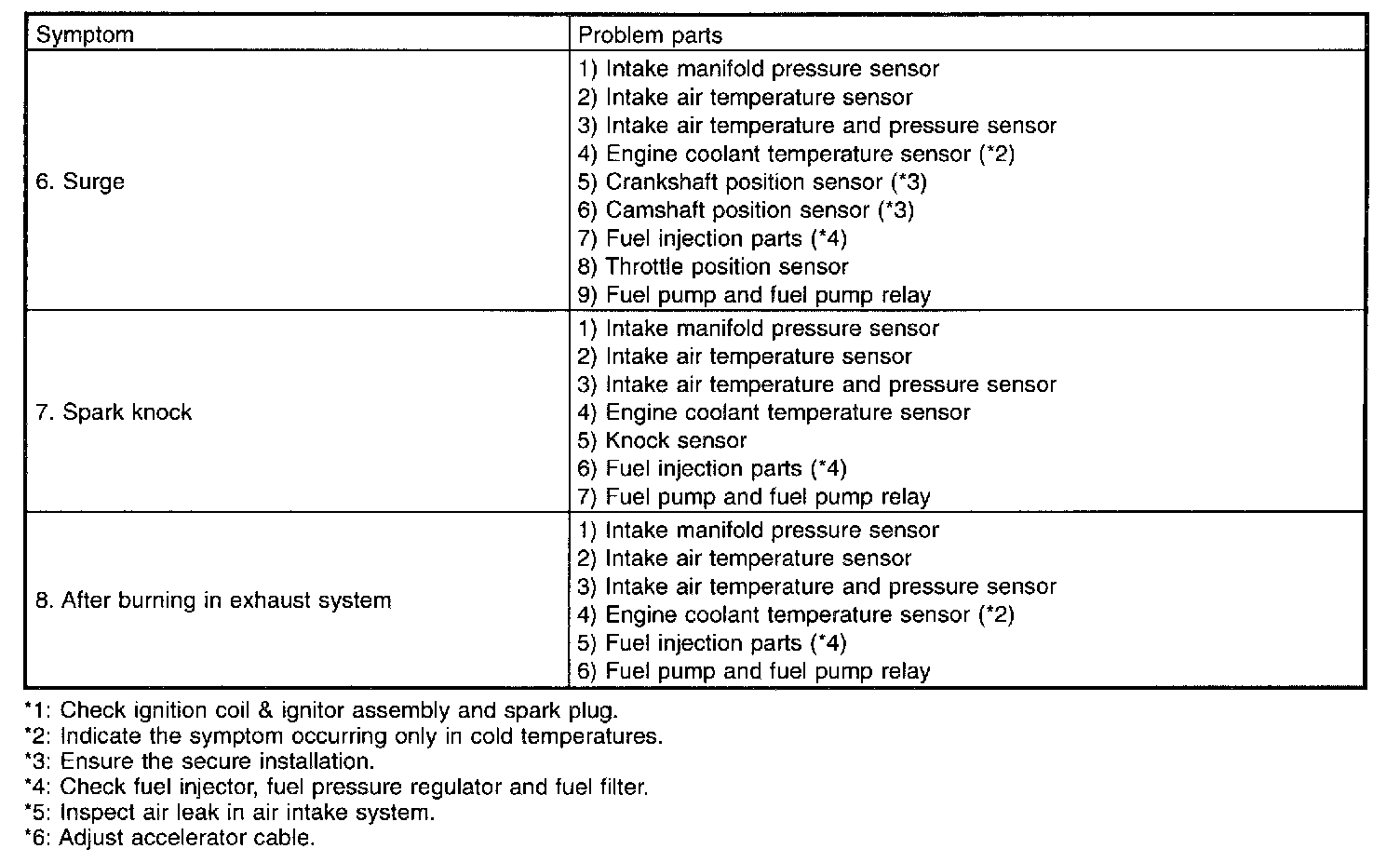

Part 2 Of 2:





NOTE: Malfunction of parts other than those listed is also possible.
