Compressor Diagnosis

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

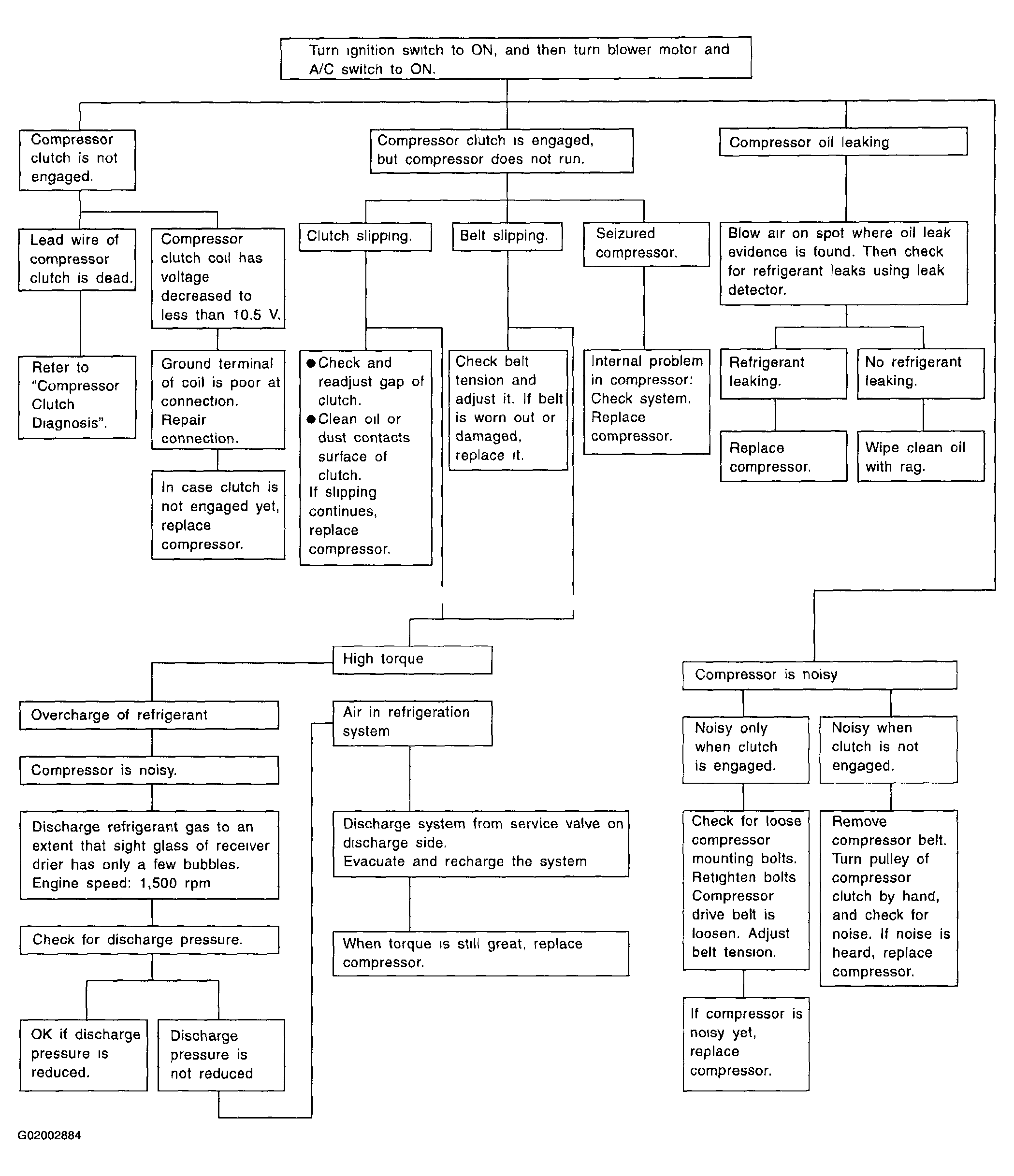

Fig 1: Compressor Diagnosis Chart
G02002884
