Relay And Fuse: Location

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Relays used with A/C system are located as shown in the figure.

A/C relay
Sub fan (condenser fan) relay
Fuses (15 A and 20 A)

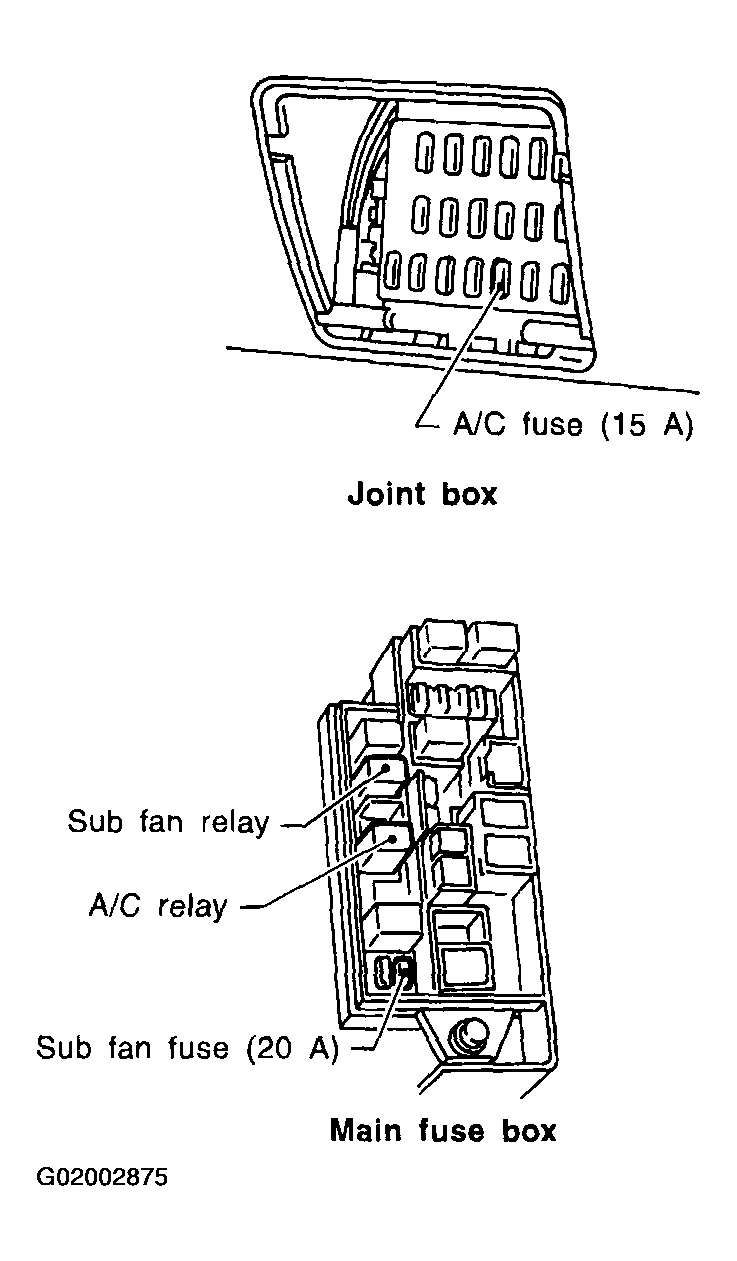

Fig 1: Identifying Relay & Fuse Locations
