Airbag Procedures (17-02-95R)

Publication date: 2001-03-27
Reference number: 17-02-95R
Supersedes refnos: 17-02-95

AIRBAG PROCEDURES

TECHNICAL SERVICE BULLETIN

Reference Number(s): 17-02-95R, Date of Issue: March 27, 2001

SUBARU:

Airbag-Equipped Vehicles

Superceded Bulletin(s): 17-02-95, Date of Issue: March 28, 1995

NOTE: This article supersedes Service Bulletin 17-02-95 dated.

DESCRIPTION

Airbag Procedures

When servicing the SRS Airbag System, always follow the service procedures, precautions, and warnings indicated in the appropriate Subaru Service Manuals and related Service Bulletins. Failure to do so may result in personal injury and/or damage to the system.

BULLETIN CONTENT

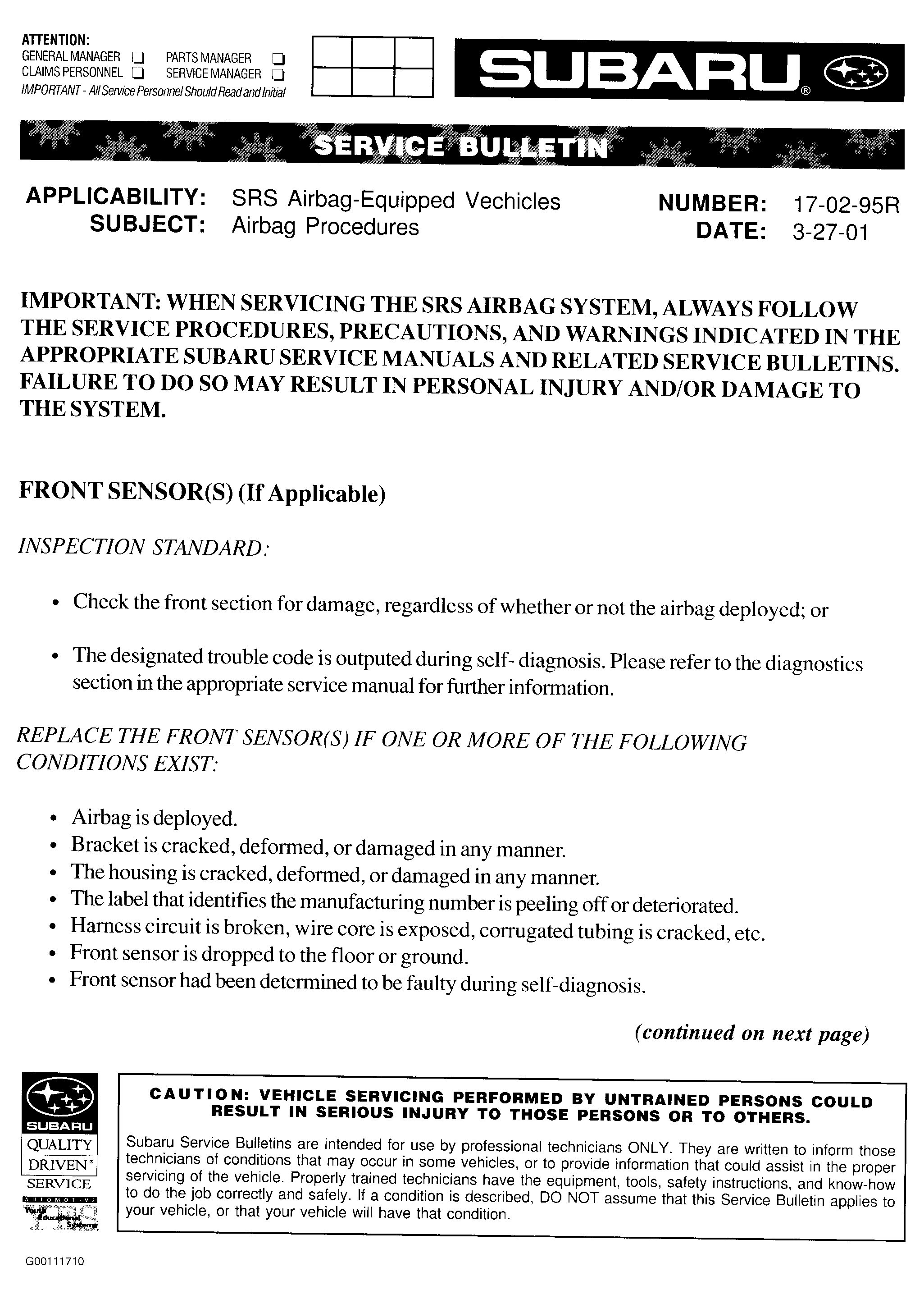

Fig 1: Page 1 of Bulletin

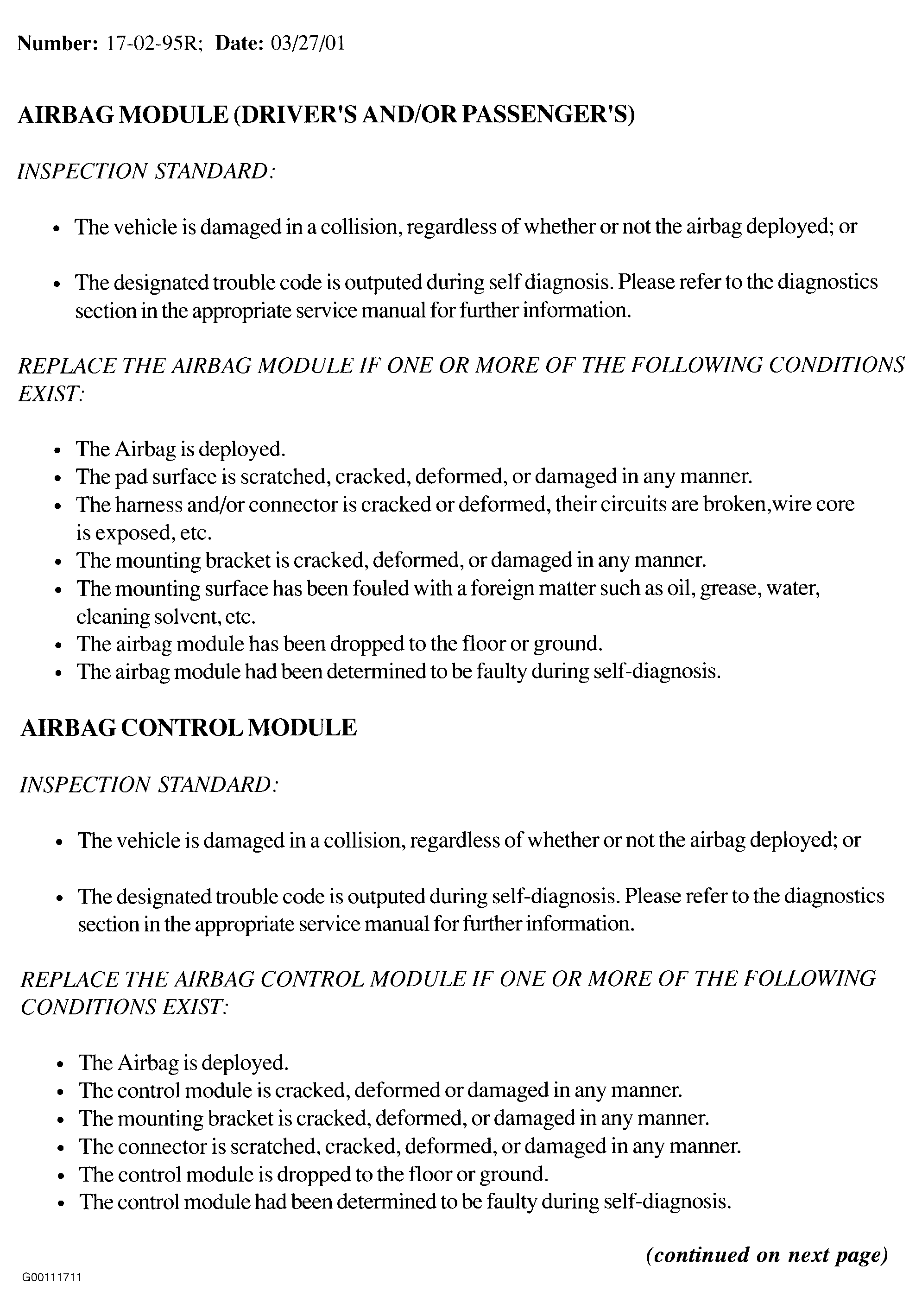

Fig 2: Page 2 of Bulletin

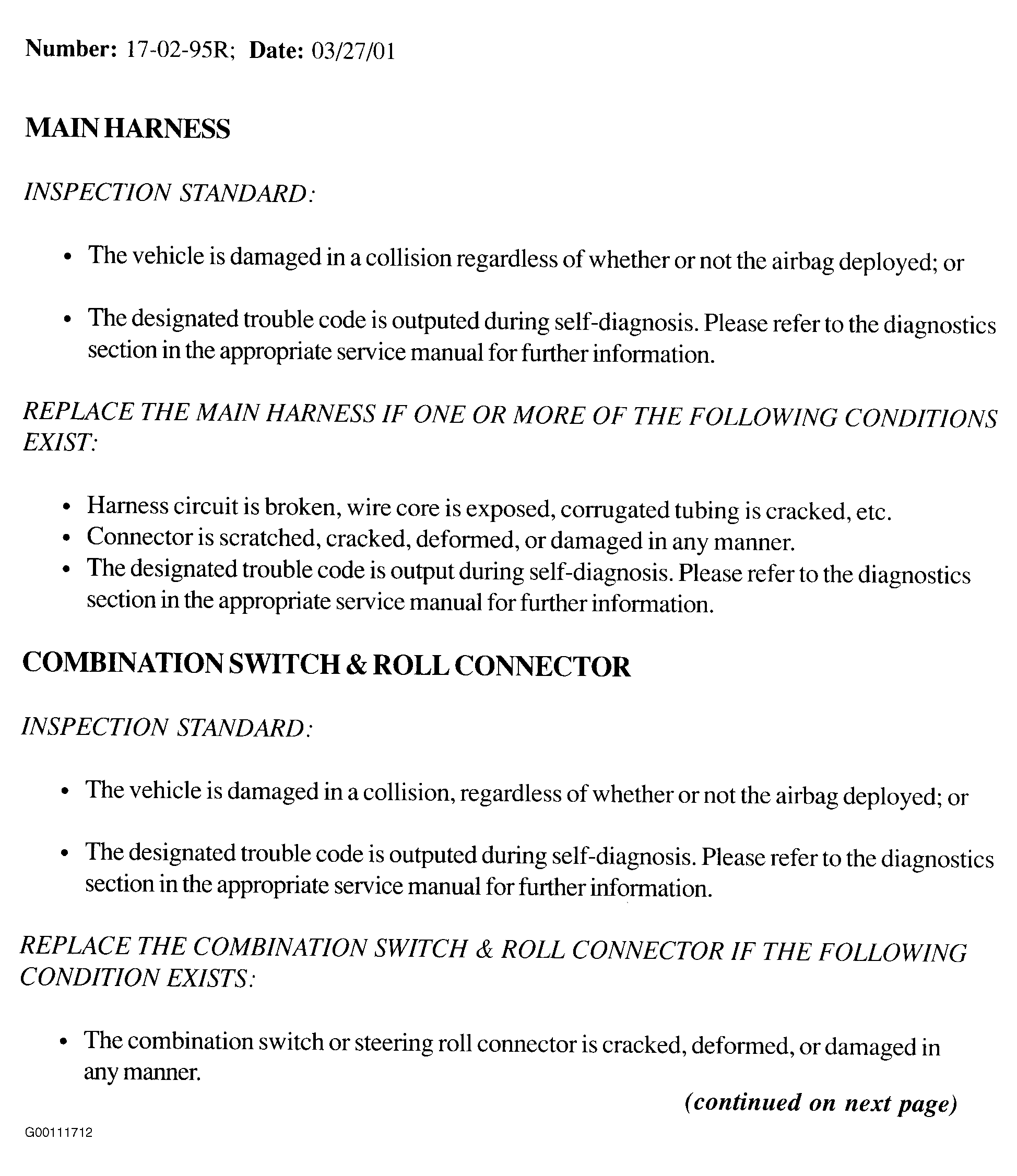

Fig 3: Page 3 of Bulletin

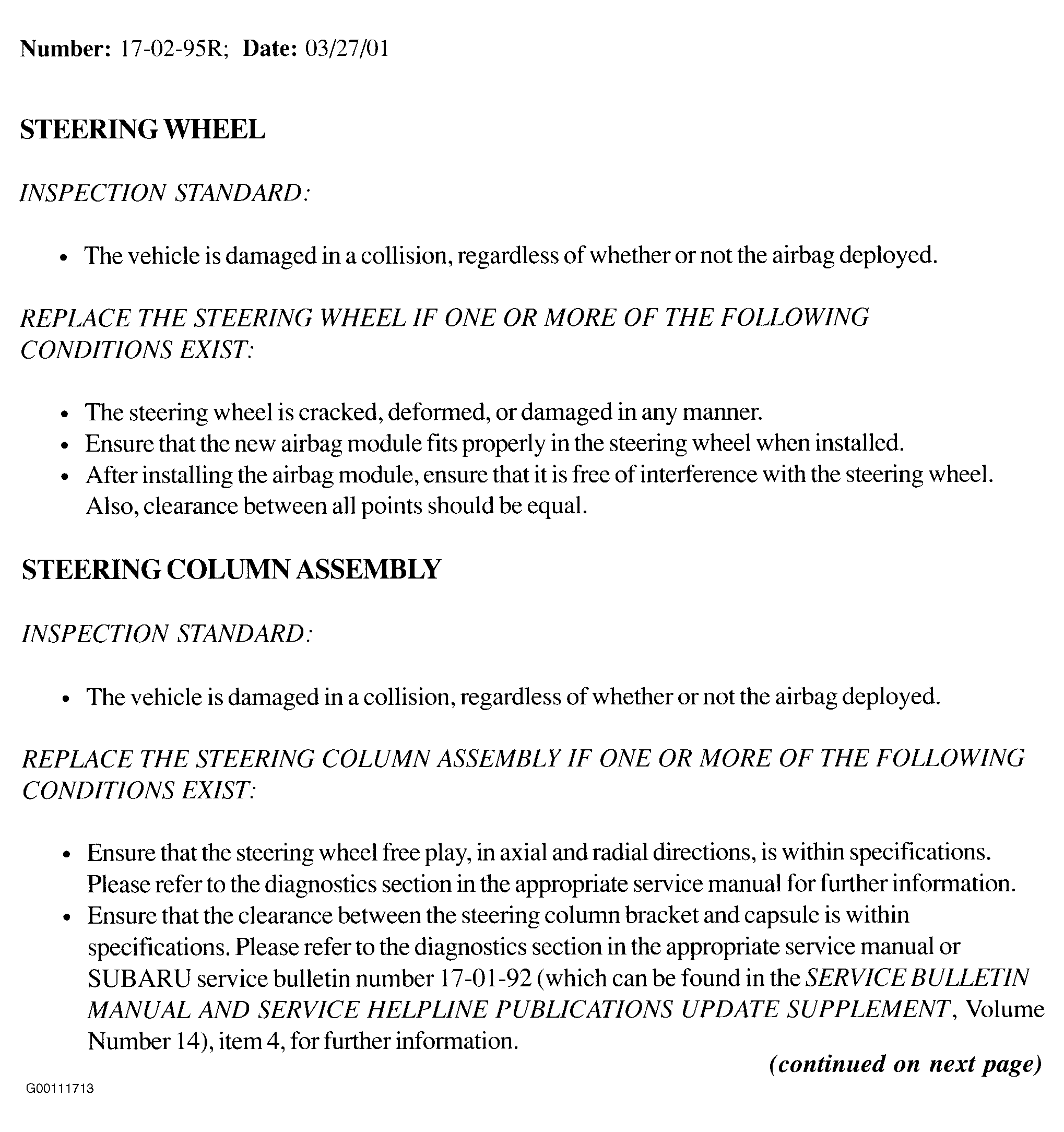

Fig 4: Page 4 of Bulletin

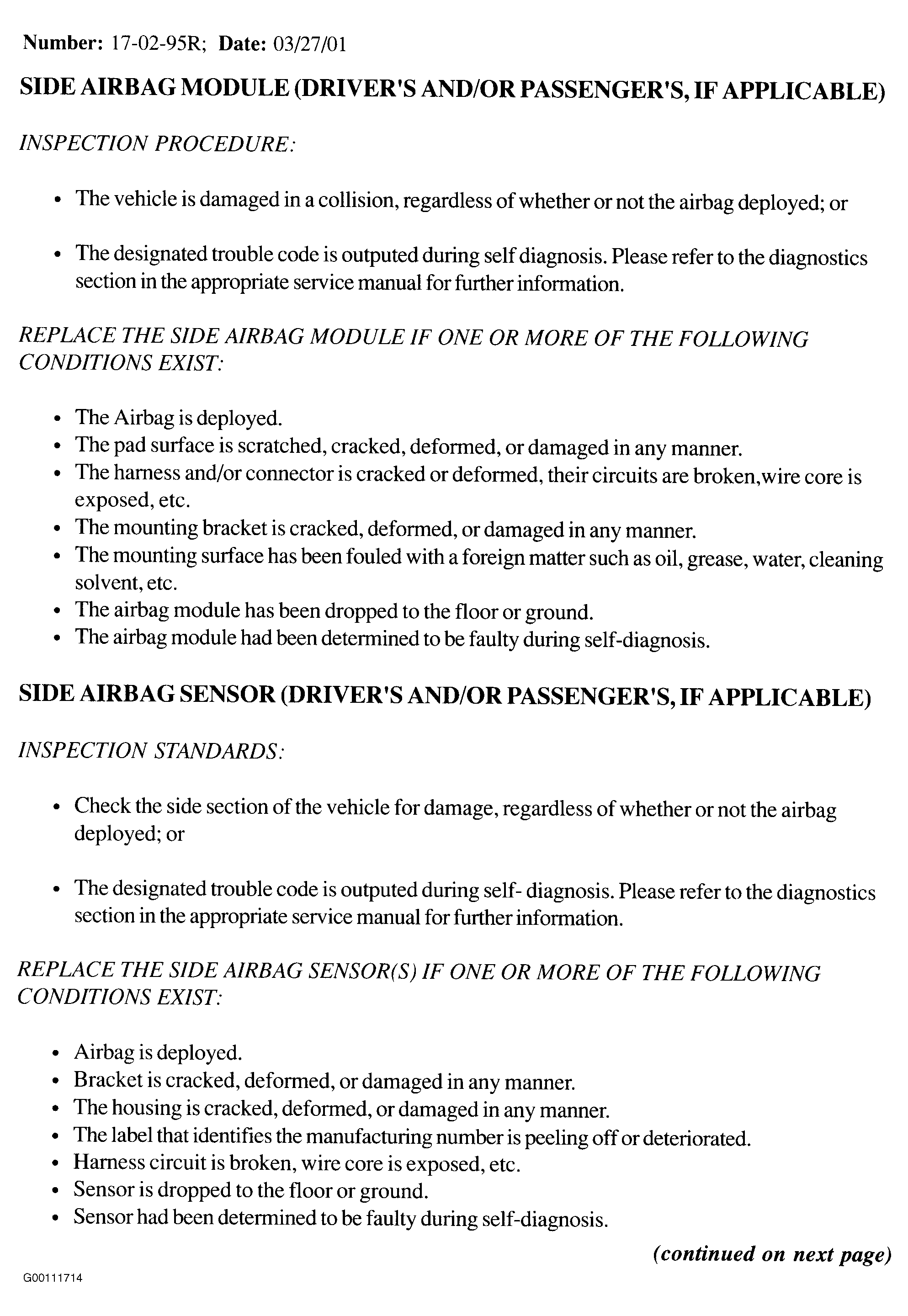

Fig 5: Page 5 of Bulletin

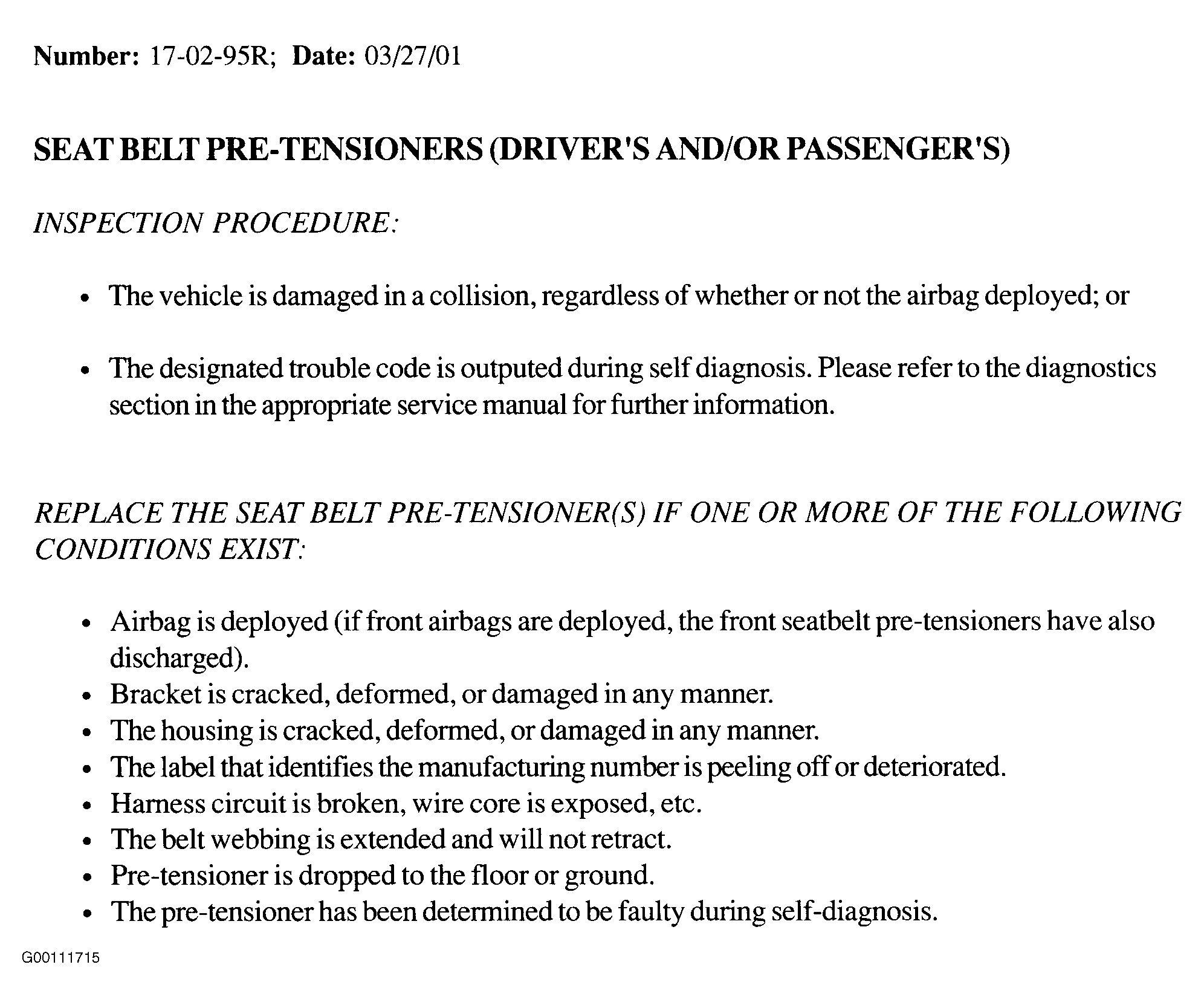

Fig 6: Page 6 of Bulletin
