Fuse Index Information

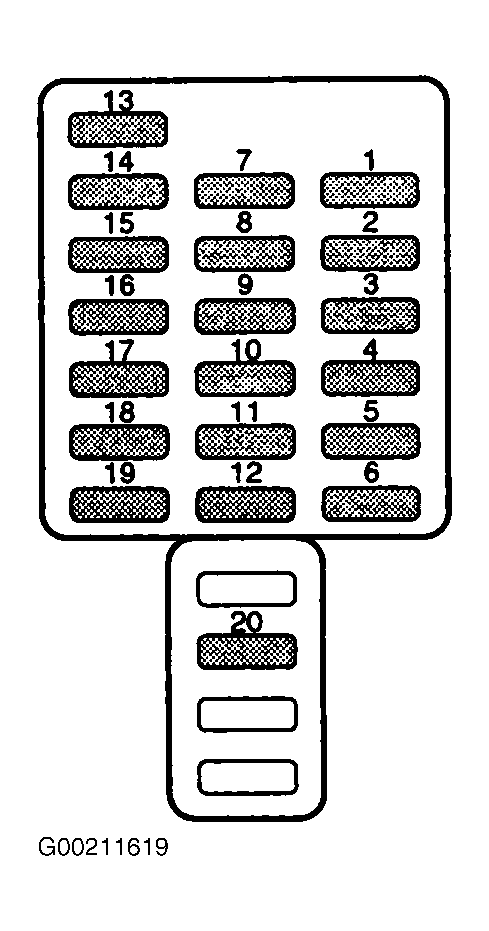

FUSE PANEL BEHIND COIN TRAY
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| 1 | 15A | Heater Fan |
| 2 | 15A | Heater Fan |
| 3 | 15A | Power Door Lock & Keyless entry |
| 4 | 20A | Cigarette Lighter & Remote Controlled Rear View Mirrors |
| 5 | 10A | Tail Light & Parking Light |
| 6 | 15A | SRS Air Bag |
| 7 | 15A | Front Fog Light |
| 8 | 30A | ABS Solenoid |
| 9 | 15A | Radio & Clock |
| 10 | 15A | Trailer |
| 11 | 15A | Engine Ignition System & SRS Air Bag |
| 12 | 10A | Illumination Brightness Control |
| 13 | 15A | Fuel Pump |
| 14 | 10A | Rear Window Wiper & Washer |
| 15 | 30A | Windshield Wiper & Washer |
| 16 | 20A | Brake Light |
| 17 | 15A | Air Conditioner |
| 18 | 15A | Backup Light, Cruise Control & ABS Control |
| 19 | 20A | Mirror Heater & Wiper Deicer |
| 20 | 20A | Accessory Power Socket & Seat Heater |
