Front Disc Brake Assembly: Notes

WARNING: This page is about a different car, the 2002 Subaru Forester and 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before disassembling and reassembling front disc brake assembly, identify the brakes components. See Fig 1 .

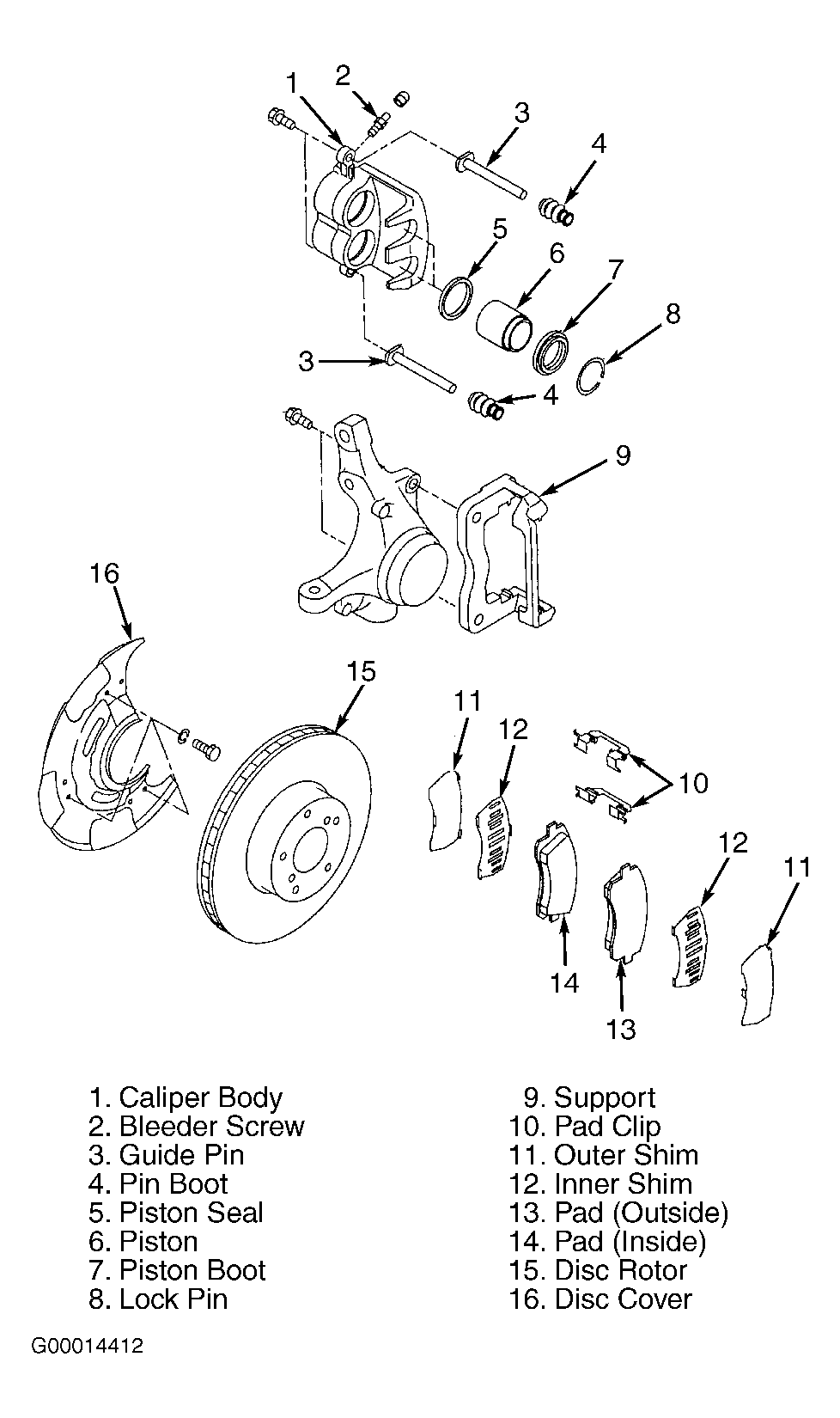

Fig 1: Identifying Front Disc Brake Components

Courtesy of SUBARU OF AMERICA, INC.
