Dropping Resistor: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery ground terminal.

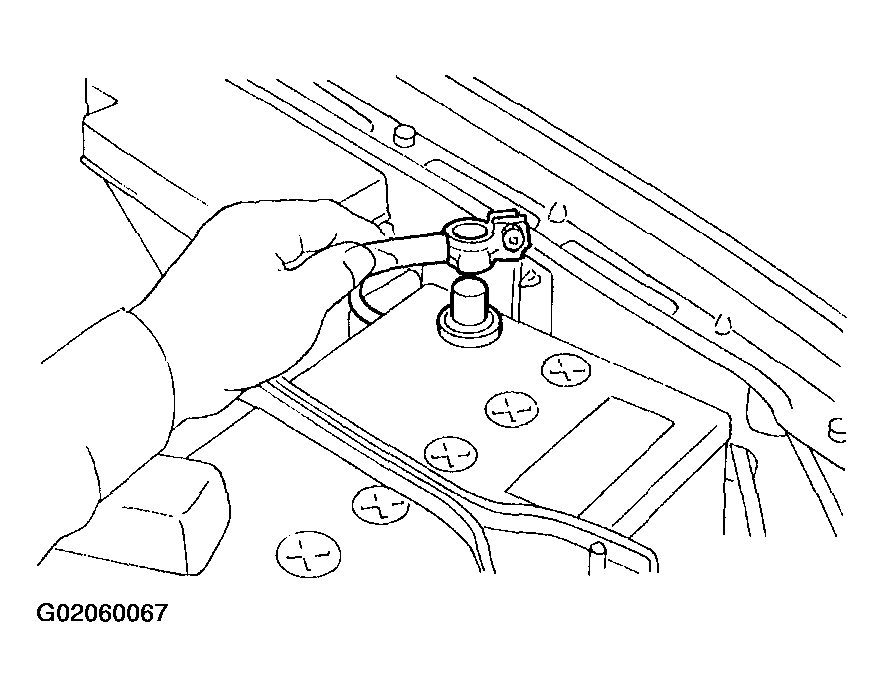

Fig 1: Disconnecting Battery Ground Terminal
Remove air intake duct. See AIR CLEANER CASE .

Fig 2: Identifying Air Intake Duct & Air Cleaner Case
Disconnect connector from dropping resistor.
Remove dropping resistor from bracket.

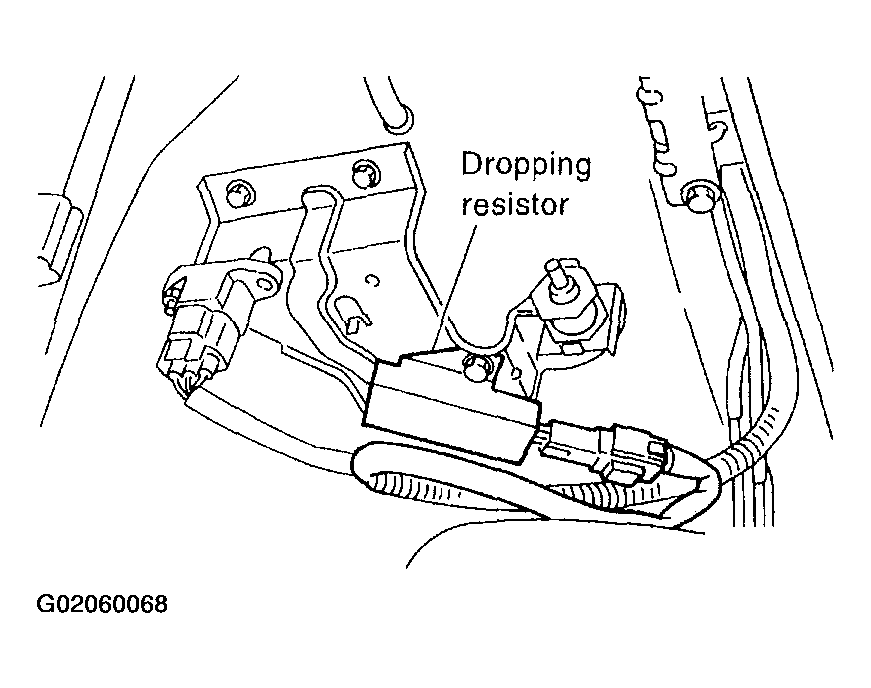

Fig 3: Identifying Dropping Resistor
