Transmission Mounting

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

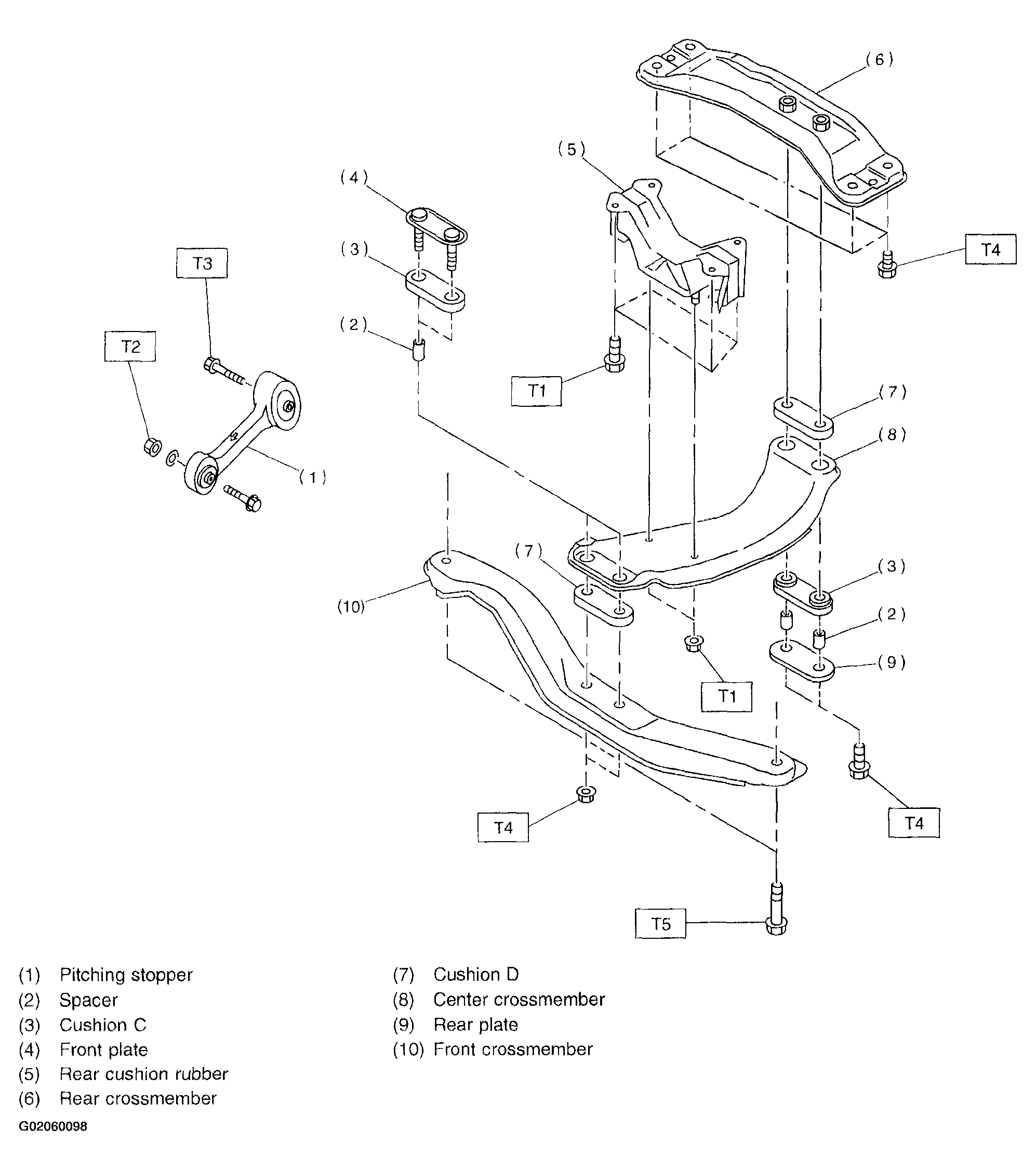

Fig 1: Identifying Transmission Mounting Components

Tightening torque: N.m (kgf-m, ft-lb)

T1: 34 (3.5, 25.3)
T2: 49 (5.0, 36.2)
T3: 57 (5.8, 42)
T4:) 69 (7.0, 51
T5: 137 (14, 101)
