Extension Case

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using ST, install oil seal to extension case.
    CAUTION: Use new oil seal.
  2. Install shift bracket to extension case.

    Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

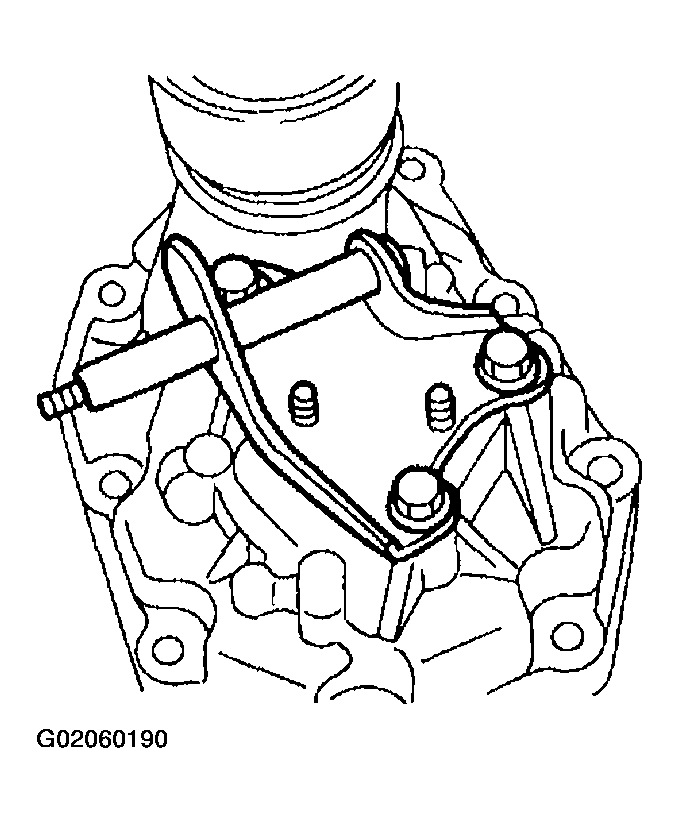

    Fig 1: Installing Shift Bracket To Extension Case
    G02060190
  3. Install transfer drive gear to extension case. See INSTALLATION - TRANSFER DRIVE GEAR  .
