Vehicle Speed Sensor: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground terminal from battery.
  2. Lift-up the vehicle.
  3. Remove center exhaust pipe, rear exhaust pipe and muffler.
  4. Disconnect connector from vehicle speed sensor.
  5. Turn and remove vehicle speed sensor.

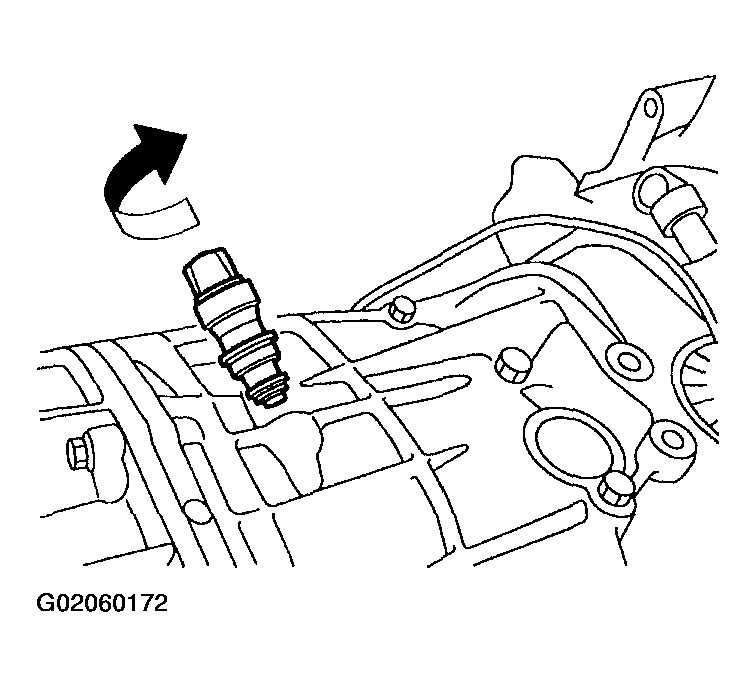

    Fig 1: Removing Vehicle Speed Sensor (Turn And Remove)
    G02060172
