Section 40 (Clutch System): Flywheel: Installation

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install flywheel and ST.
1. ST 498497100 CRANKSHAFT STOPPER

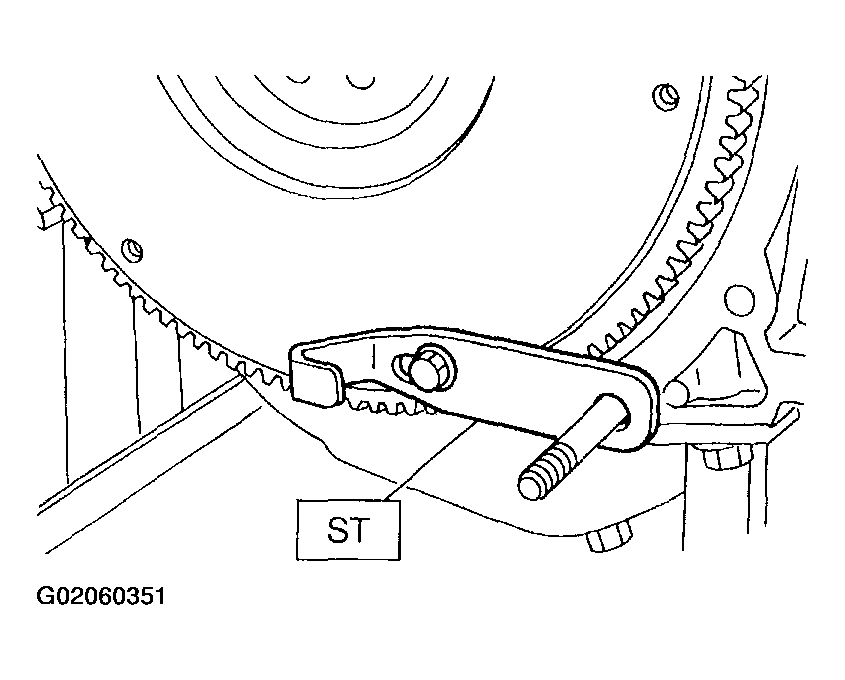

Fig 1: Identifying ST 498497100 Crankshaft Stopper
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.
1. Tightening torque: 72 N.m (7.3 kgf-m, 52.8 ft-lb)

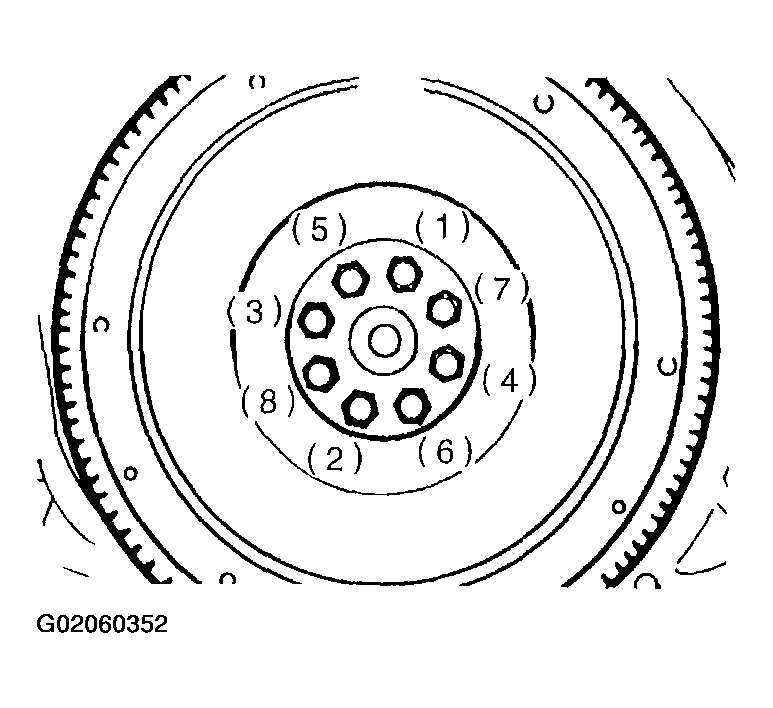

Fig 2: Tightening Flywheel Bolts In Crisscross Fashion
