General Diagnostic Table: Inspection

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

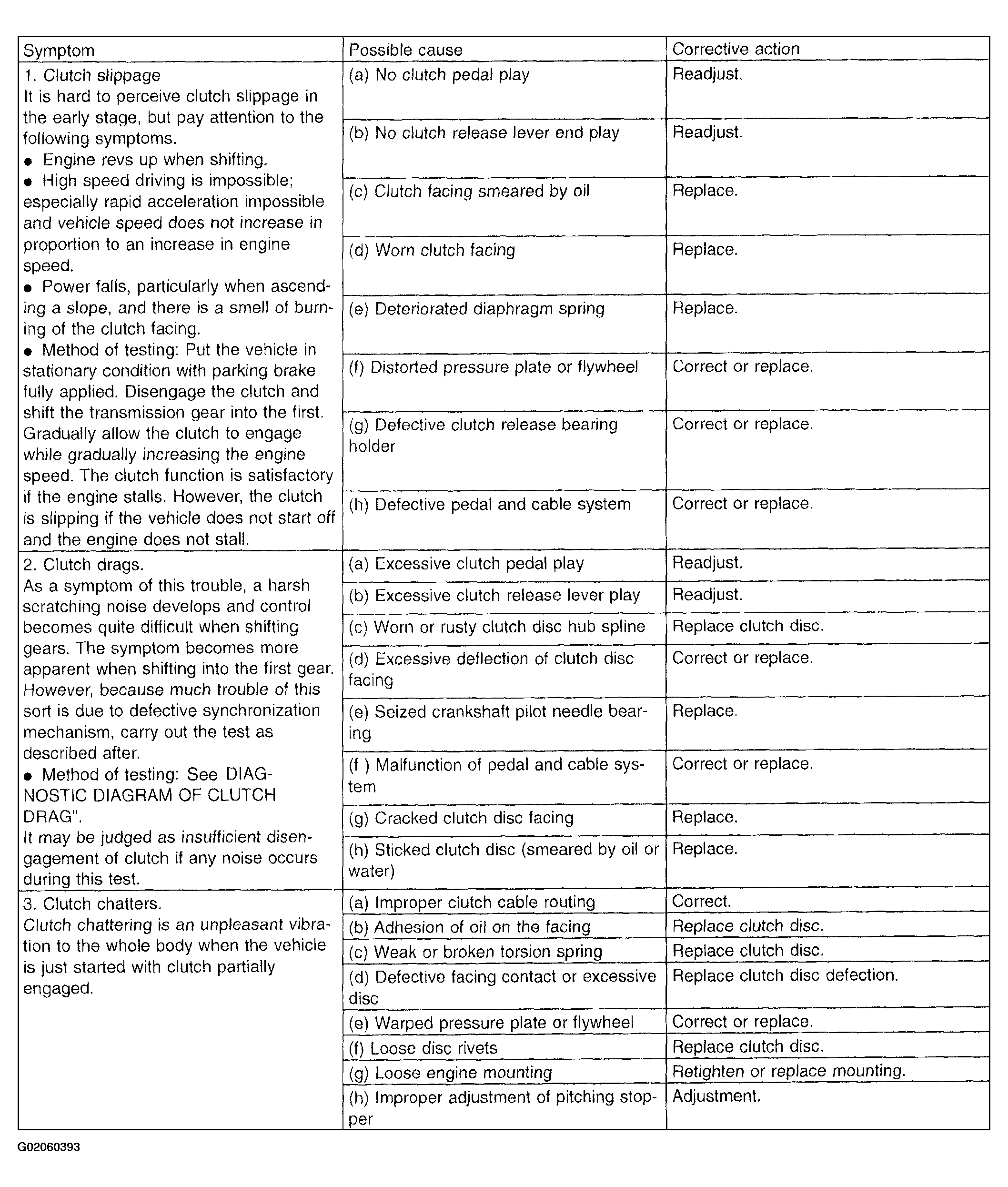

Fig 1: Symptom Chart (1 Of 2)
G02060393

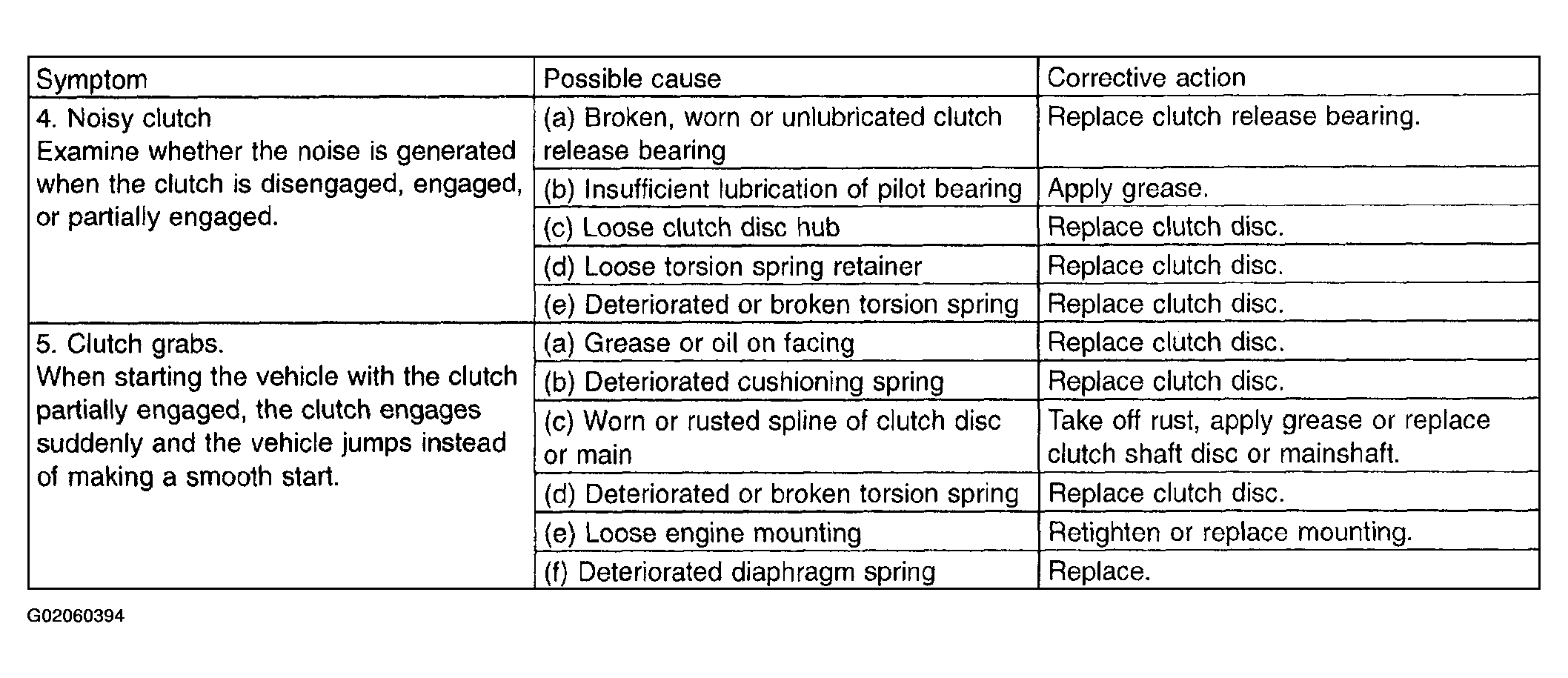

Fig 2: Symptom Chart (2 Of 2)
G02060394

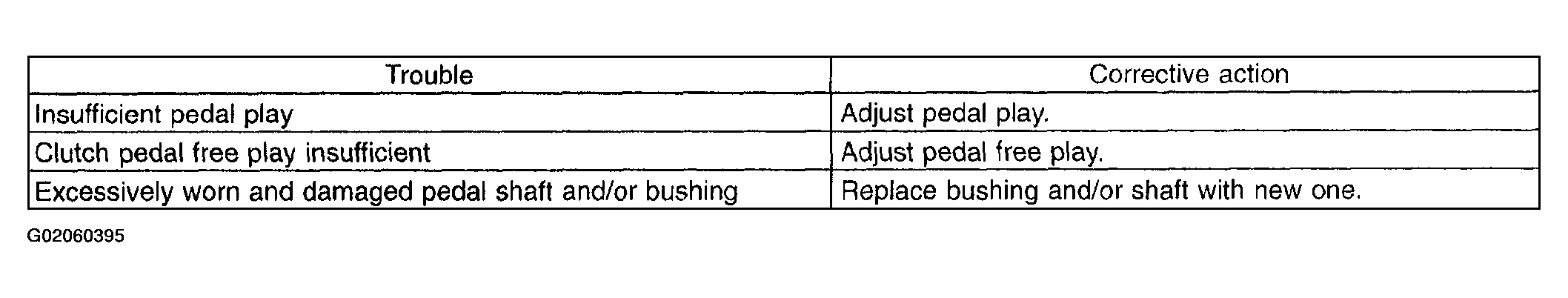

Fig 3: Trouble Shooting Chart
G02060395
