Master Cylinder: Installation

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install master cylinder to body, and install clutch pipe to master cylinder.
CAUTION: Check that pipe is routed properly.

Tightening torque:
1. T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
2. T2: 18 N.m (1.8 kg-m, 13.0 ft-lb)

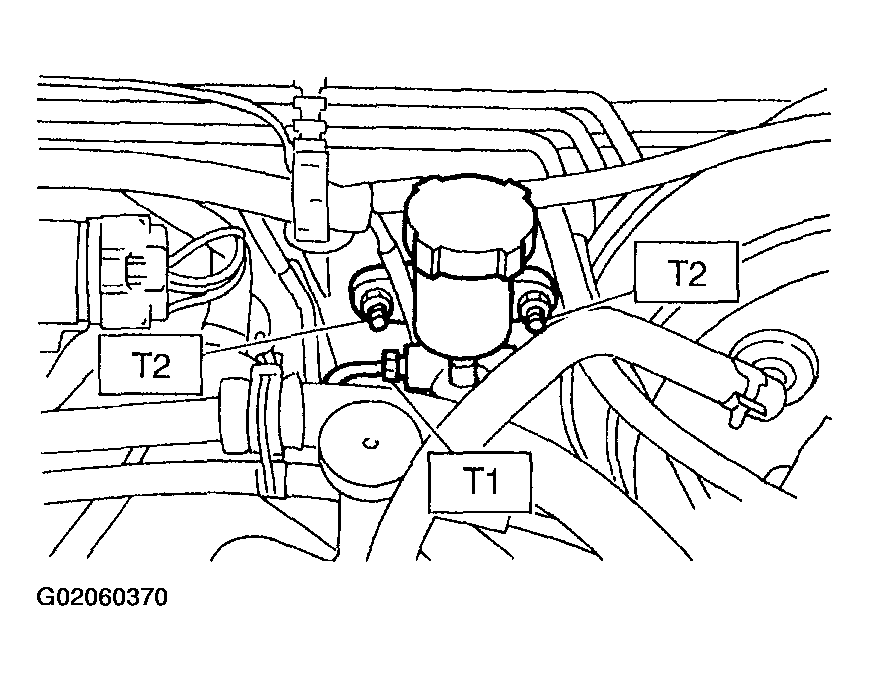

Fig 1: Installing Master Cylinder
Connect push rod of master cylinder to clutch pedal, and install clevis pin and snap pin.
NOTE: Apply grease to clevis pin.

Fig 2: Connect Push Rod Of Master Cylinder To Clutch Pedal
After bleeding air from system, ensure that clutch operates properly. See CLUTCH FLUID AIR BLEEDING .
