Operating Cylinder: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air cleaner case. See AIR CLEANER CASE .

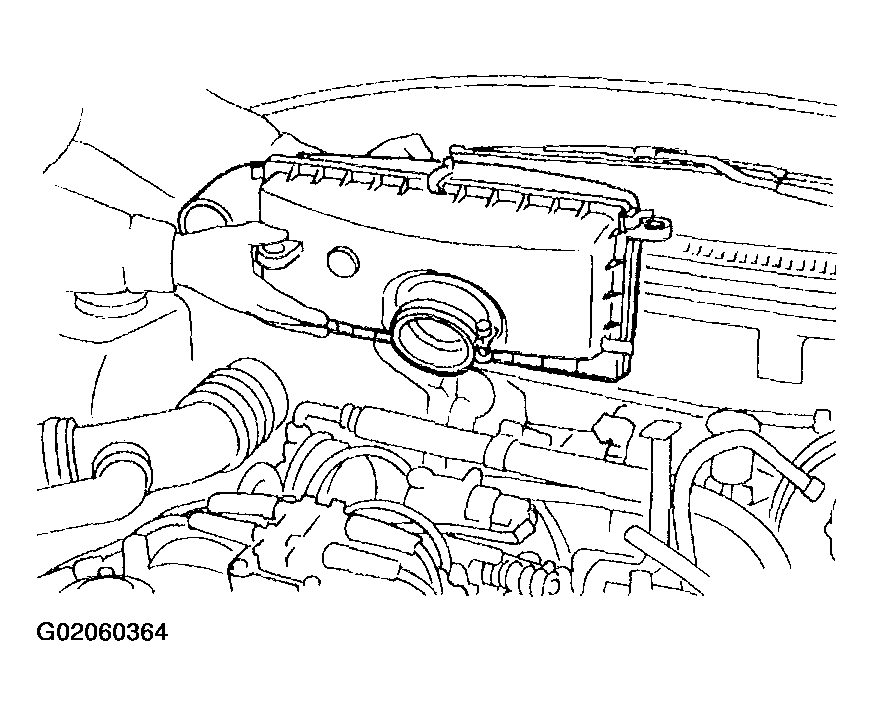

    Fig 1: Removing Air Cleaner Case
    G02060364
  2. Remove clutch hose from operating cylinder.
    CAUTION: Cover hose joint to prevent brake fluid from flowing out.

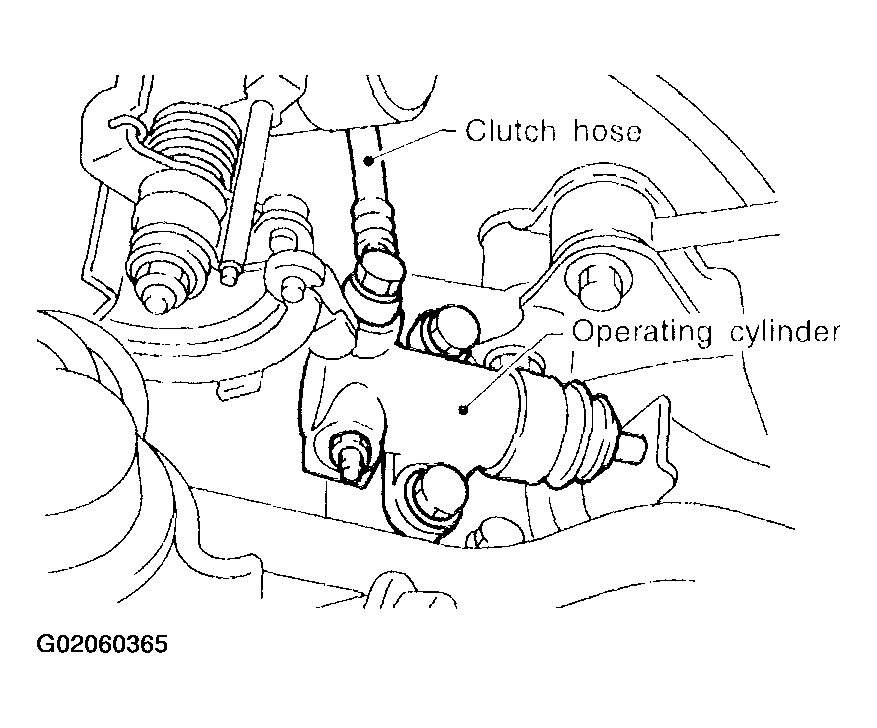

    Fig 2: Removing Clutch Hose From Operating Cylinder
    G02060365
  3. Remove operating cylinder from transmission.

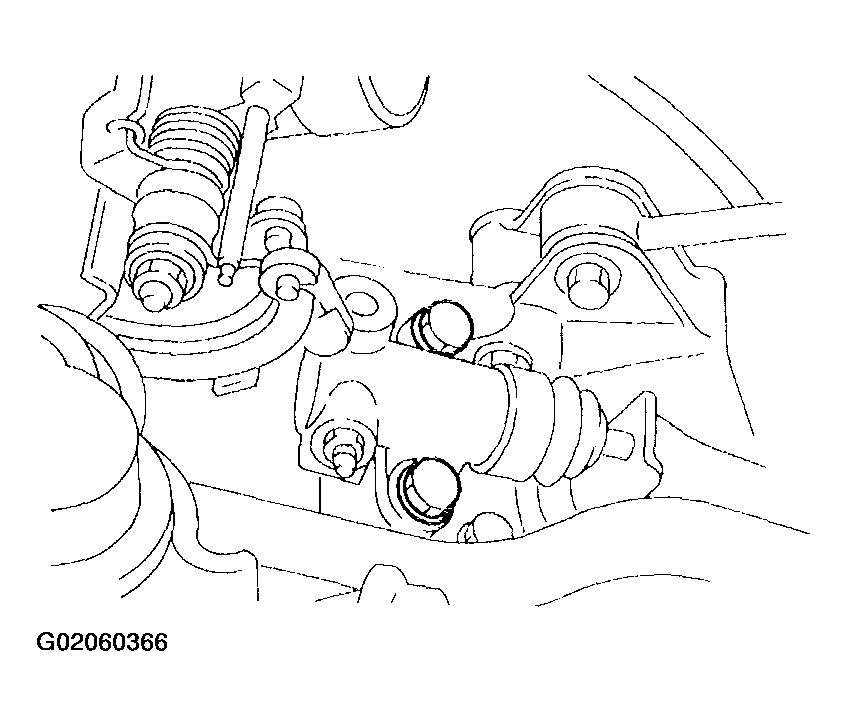

    Fig 3: Removing Operating Cylinder From Transmission
    G02060366
