Back-up Light Bulb: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear combination light assembly. Refer to REMOVAL  , Rear Combination Light Assembly.
  2. Turn the socket and remove the bulb.

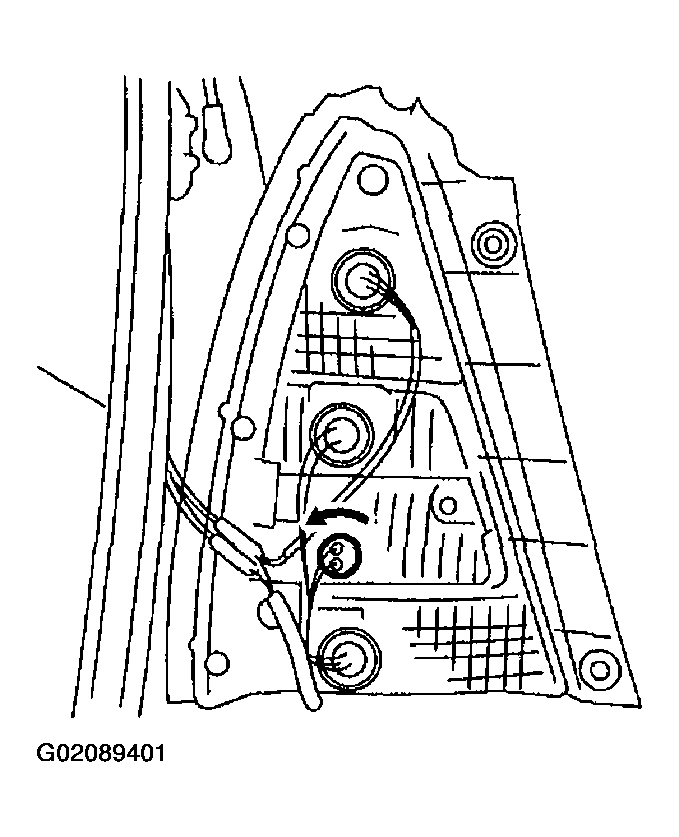

    Fig 1: Turning Socket & Removing Bulb
    G02089401Courtesy of SUBARU OF AMERICA, INC.
