Check FWD Switch

Diagnostic Procedure without Diagnostic Trouble Code (DTC)

CHECK FWD SWITCH

DIAGNOSIS:

^ LED does not illuminate even if FWD switch is ON.
^ FWD signal circuit is open or shorted.

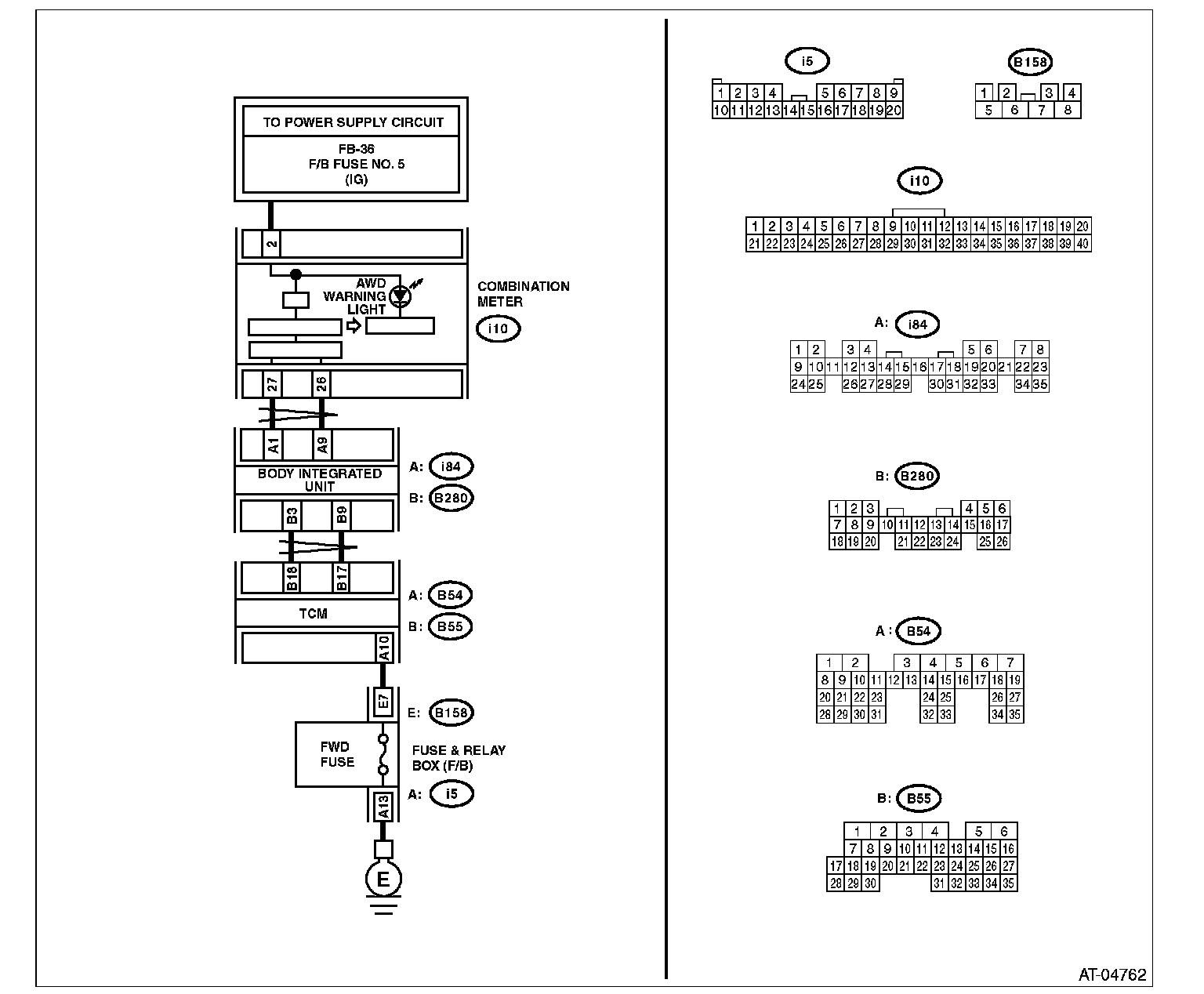

WIRING DIAGRAM:

WIRING DIAGRAM:




Step 1-Step 2:

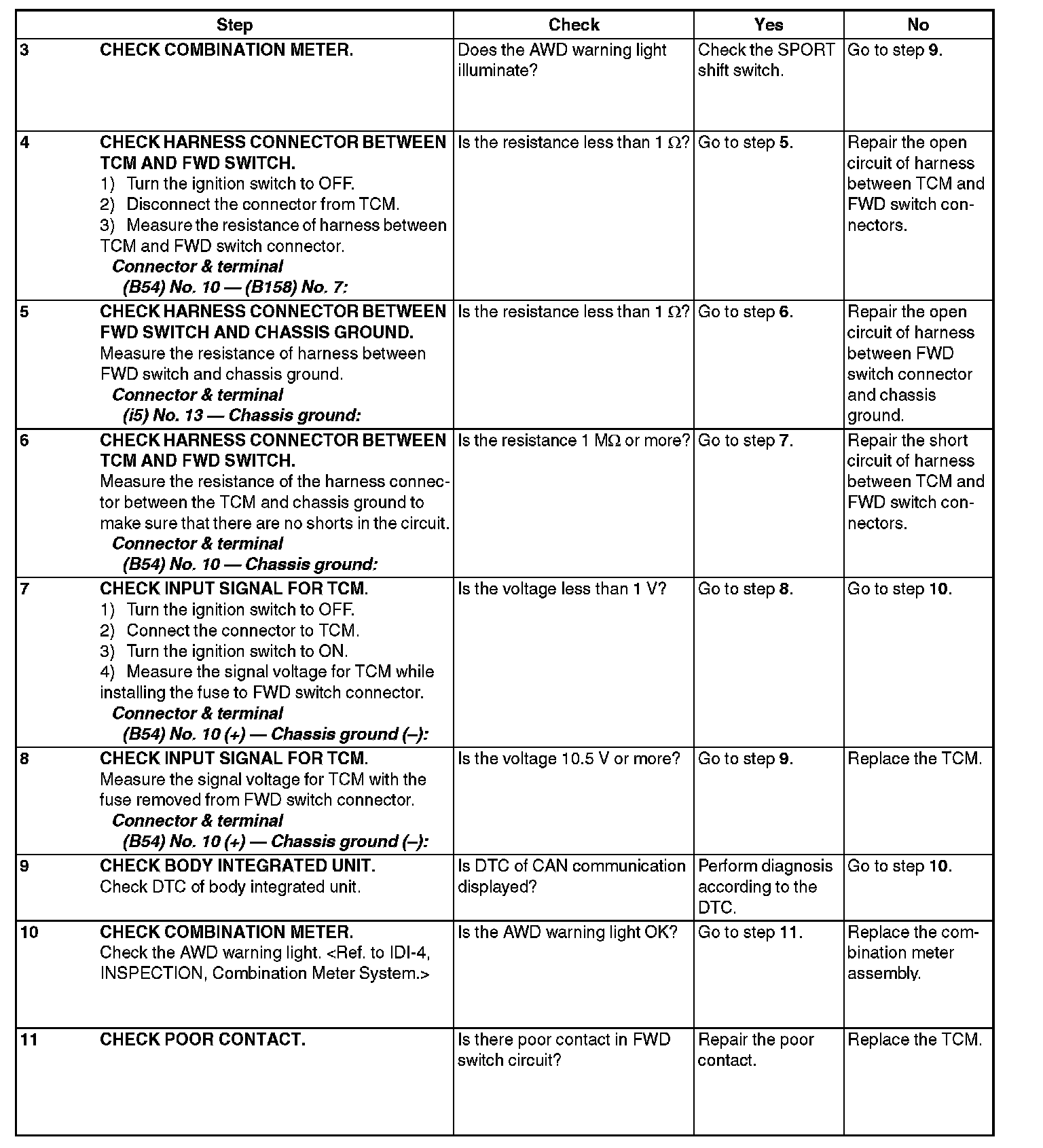

Step 3-Step 11:
