Power Window Switch: Testing and Inspection

Power Window Control Switch

INSPECTION

1. MAIN SWITCH
1. Remove the main switch.

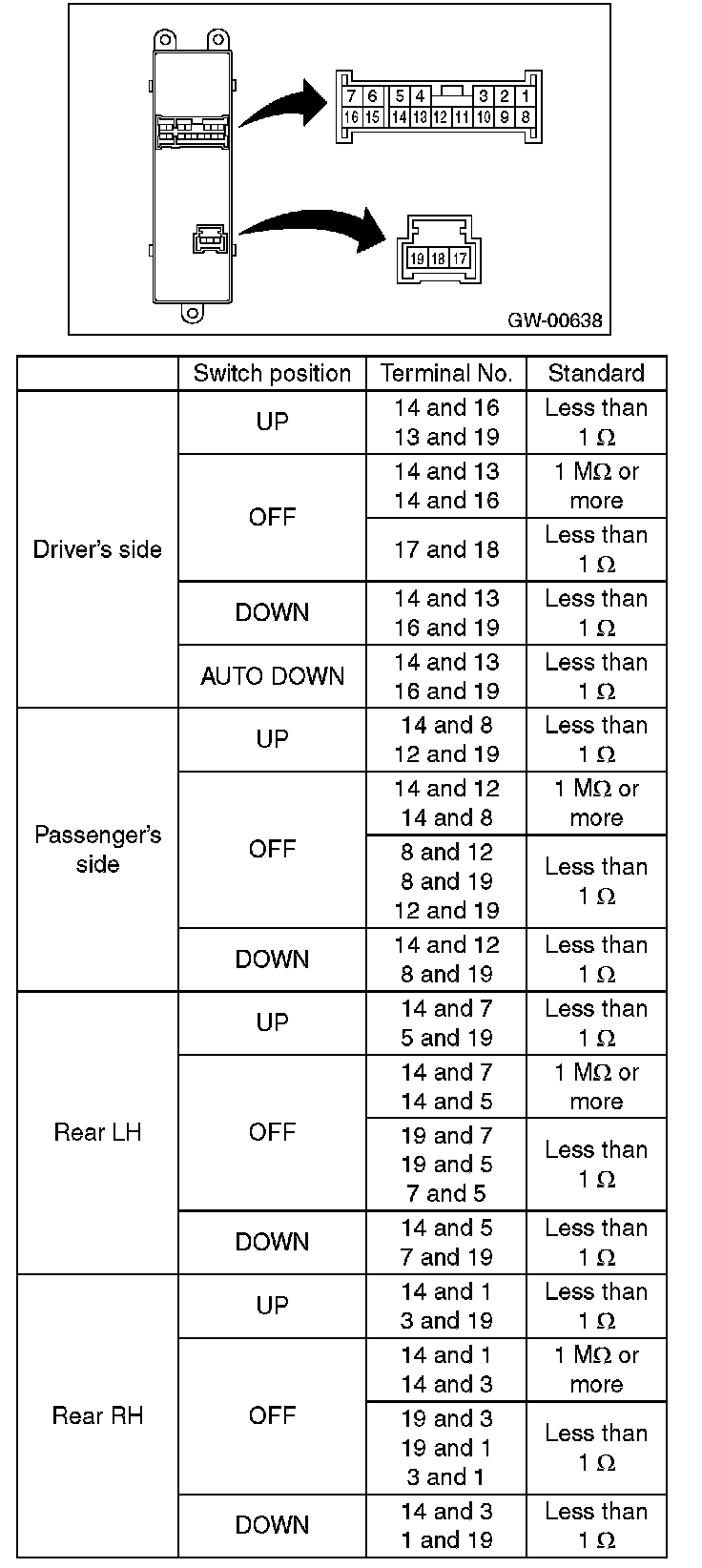

2. Measure the switch resistance.






Replace the main switch if faulty.

2. SUB-SWITCH
1. Remove the sub-switch.
2. Measure the sub-switch resistance.






Replace the sub-switch if faulty.
