Front Drive Shaft Assembly

FRONT DRIVE SHAFT DIMENSION CHART

Model	Type of drive shaft	Axle diameter D mm (in)	Axle length L mm (in)
All models	EBJ + PTJ	26 (1.02)	347 (13.66)

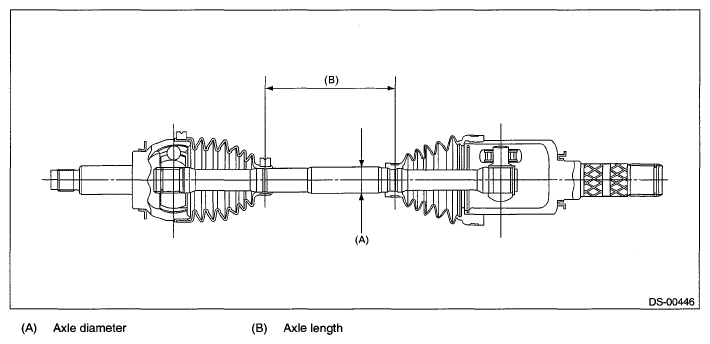

Fig 1: Identifying Front Drive Shaft Axle Diameter And Axle Length

Courtesy of SUBARU OF AMERICA, INC.
