Fuel Pipe

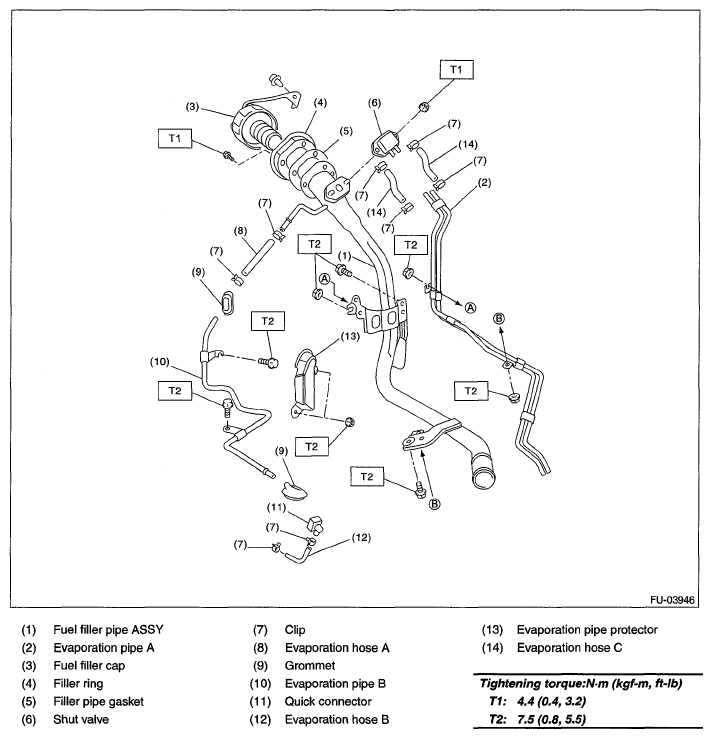

Fig 1: Exploded View Of Fuel Pipe With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
